Installation Page 7

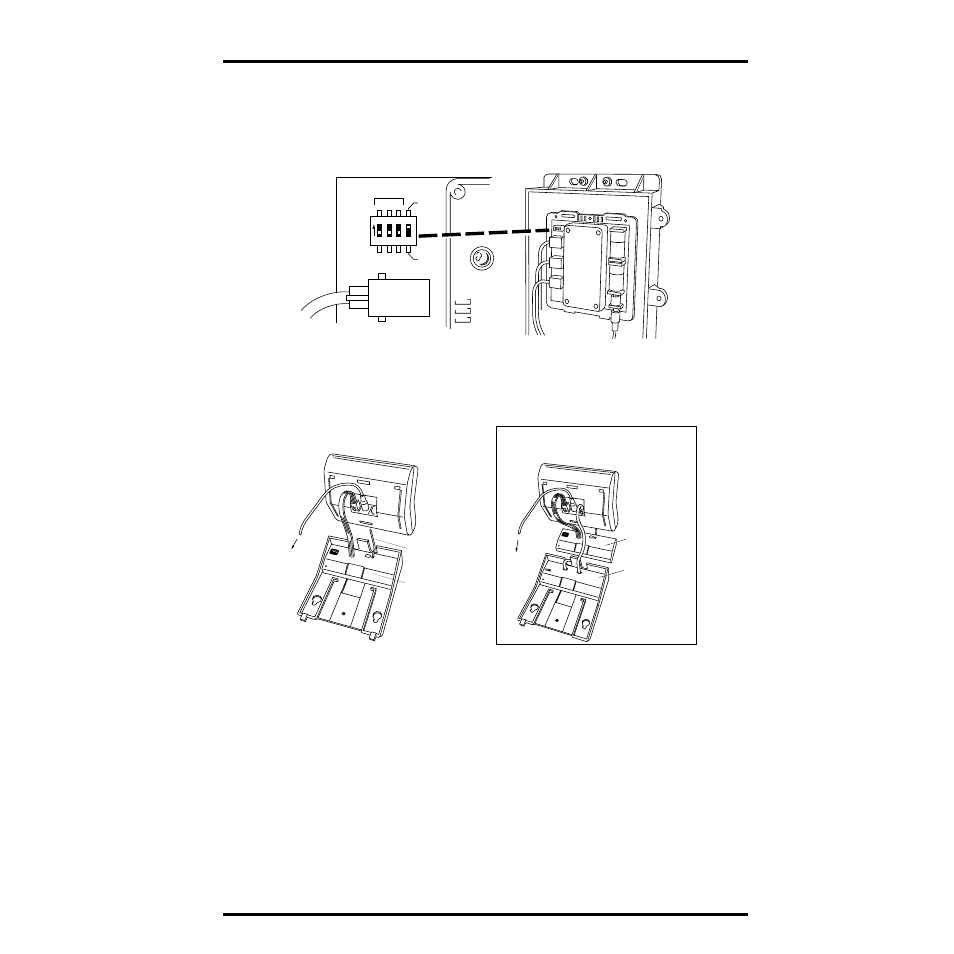

7. Test the transmitter by setting dip switch #4 to the “Test” position, as shown below.
You should see a flashing LED indicating that the sensor unit is transmitting.
8. Install the receiver into the console base and apply power as shown below.
Be sure to connect the receiver’s cable plug into the jack marked “Junction
Box” on the underside of the station console.
When you apply power to the console, the console should beep three times
within 20 seconds to indicate that the console and receiver are working
properly (or 4 times within 30 seconds, with the optional WeatherLink).
UNIT ID
S1
TEST
RUN
1 2 3 4
ON
Dip Switches
Indicator
LED
SensorLink
Transmitter
TRANSMITTER TEST
Antenna
SensorLink
Receiver
Mounting Base
Weather Station
Console
To
Power
Adapter
WeatherLink
SensorLink
Receiver
Mounting Base
Weather Station
Console
To
Power
Adapter
WEATHERLINK SETUP STANDARD SETUP
