Mounting on a wood post – DAVIS Antenna Mast-Mount Kit for Omni-Directional Antenna User Manual
Page 4
Product Number: 7995
Davis Instruments Part Number: 7395-131
Antenna Mast-Mount Kit For Omni-Directional Antenna
Rev. A Manual (7/8/99)
© Davis Instruments Corp. 1997. All rights reserved.
M
OUNTING
ON
A
W
OOD
P
OST

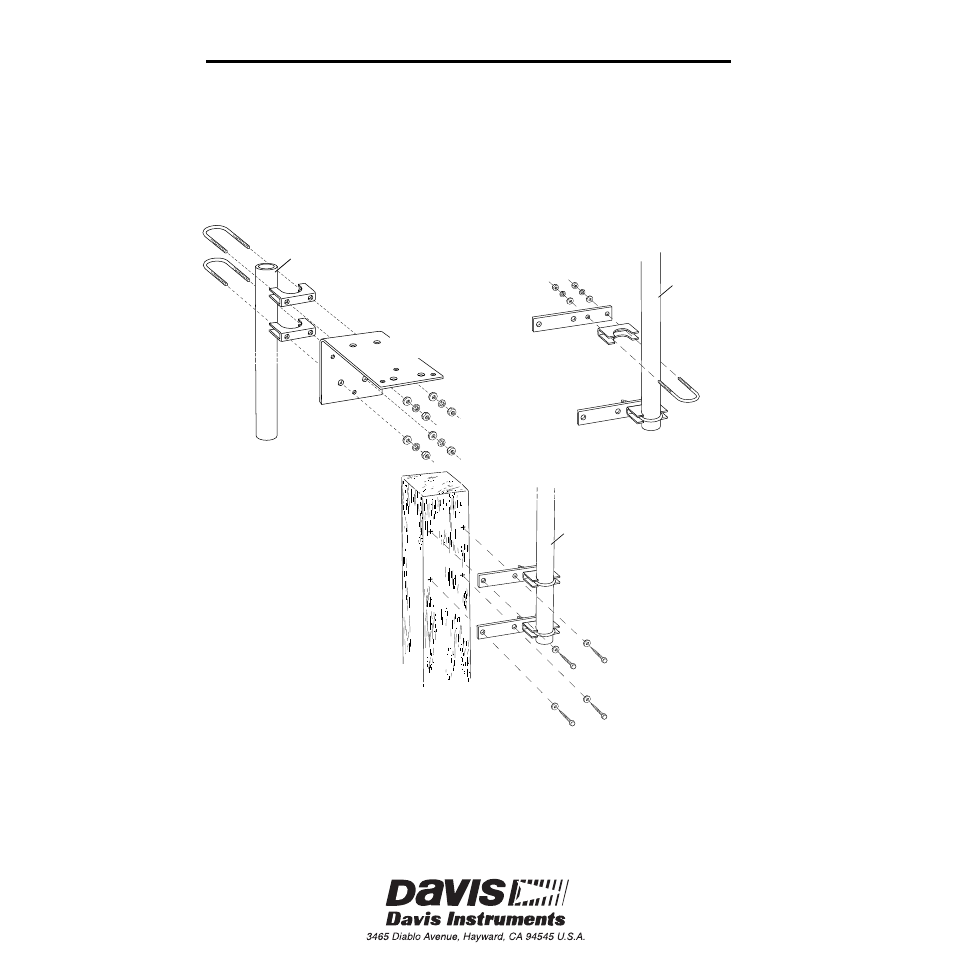

Attach the antenna mounting bracket to the top of the antenna mast using the
1-1/4" U-bolts, washers, lock washers, and hex nuts as shown below. Attach the
antenna mast brackets to the bottom of the antenna mast using the 1-1/4"
U-bolts, washers, lock washers, and hex nuts as shown below. Attach the
antenna mast to the post using the lag screws and washers as shown below. Use
a 3/16" (4.8 mm) drill bit to make pilot holes.
1-1/4" U-Bolt
Antenna Mast
up to 1-1/4" (32 mm)
Outside Diameter
(user-supplied)
Flat Washer
Lock Washer
1/4" Hex Nut
Antenna Mast
Bracket
Saddle
Antenna Mast
Saddle
1-1/4" U-Bolt
Flat Washer
Lock Washer
1/4" Hex Nut
Antenna
Mast
Flat Washer
1/4 x 1-1/2" Lag Screw
Antenna/Ground Plane
not shown for clarity.
