Mounting Antenna Mast on Support Pipe Page 3
M OUNTING A NTENNA M AST ON S UPPORT P IPE

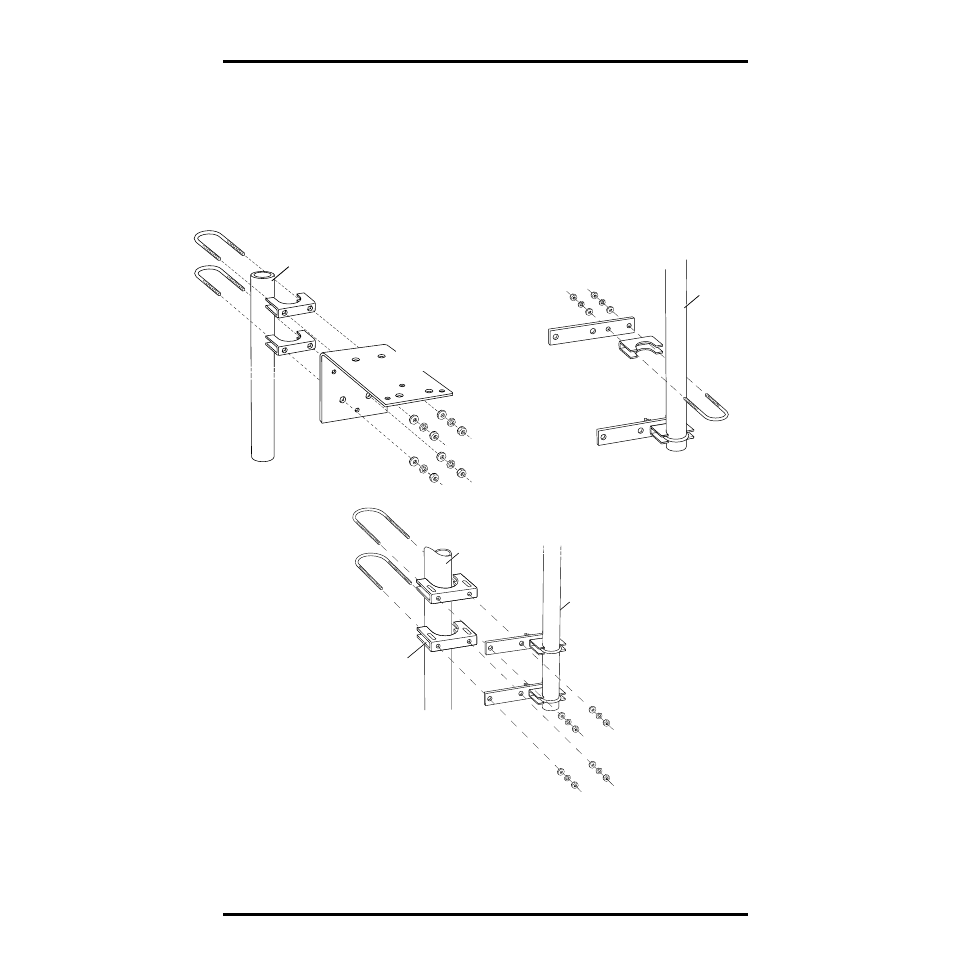

Attach the antenna mounting bracket to the top of the antenna mast using the
1-1/4" U-bolts, washers, lock washers, and hex nuts as shown below. Attach the
antenna mast brackets to the bottom of the antenna mast using the 1-1/4"
U-bolts, washers, lock washers, and hex nuts as shown below. Attach the
antenna mast to the support pipe using the 2-1/4" U-bolts, washers, lock wash-
ers, and hex nuts as shown below.
Support Pipe
2-3/8" (60 mm) Outside
Diameter Maximum
2-3/8"
U-Bolts
2-3/8"
Saddles
Antenna
Mast
Flat Washer
Lock Washer
5/16" Hex Nut
1-1/4" U-Bolt
Antenna Mast
up to 1-1/4" (32 mm)
Outside Diameter
(user-supplied)
Flat Washer
Lock Washer
1/4" Hex Nut
Antenna Mast
Bracket
Saddle
Antenna Mast
Saddle
1-1/4" U-Bolt
Flat Washer
Lock Washer
1/4" Hex Nut
Antenna/Ground Plane
not shown for clarity.
