Mount the Sensor Mounting Shelf
Note: In the illustration, the rain collector cone has been removed for clarity. It is not necessary
to remove the cone to install the Sensor Mounting Shelf.
1. Place a support tube on each of the outside mounting holes at the rear of the rain
collector base as illustrated.
2. Place a lock washer and a flat washer onto one of the 7-3/4" screws.
3. Locate the support tube mounting holes in the shelf. (See illustration on page 2.)
4. Insert the screw through the hole in the shelf, tube and through the hole in the
rain collector base.
5. Place a nut in the opening of the hexagonal recess on the underside of the rain
collector base.
6. Turn the screw until the assembly is loosely held together.
7. Repeat steps 1 - 6 with the second support tube and screw.
8. On the underside of the Sensor Mounting Shelf, verify that the tops of both
support tubes are located inside the circular recesses in the shelf.
9. Tighten both support tube screws.
Note: Do NOT install the shelf using the holes in front of the rain collector cone, as this will
impair radio reception.

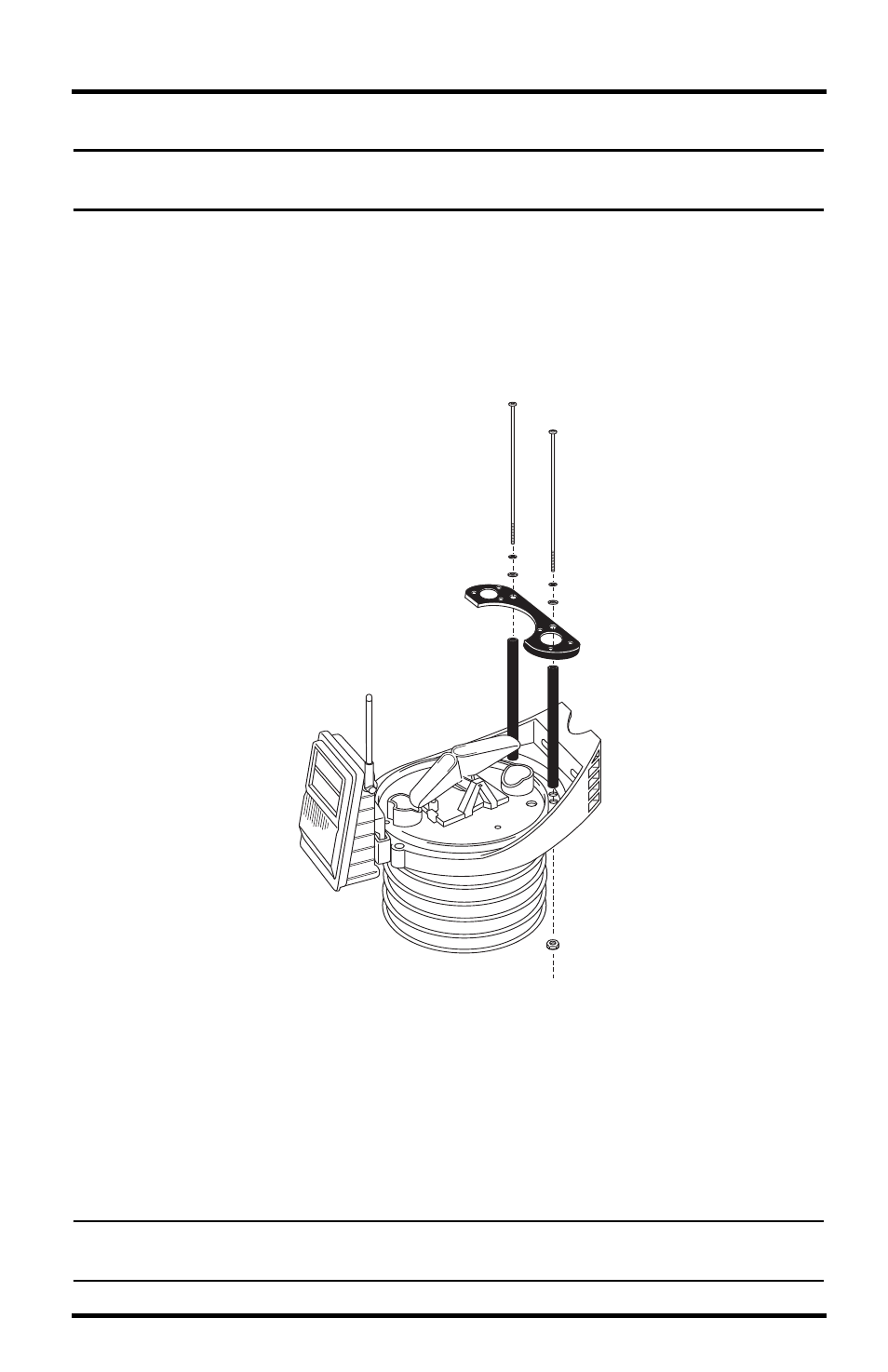

#10-24 Nut
Support Tube
Shelf
#10 Flat Washer
#10 Lock Washer
#10-24 x 7-3/4" Screw
