Page 4
2
• Diffuser: With the comb structure of the shield, the precision-machined Teflon
diffuser provides an excellent cosine response for zenith angles from zero to 90
degrees.
• Transducer: A latest-technology, hermetically-sealed hybrid microcircuit
responds to UV irradiance according to the Erythema Action Spectrum.
• Amplifier: Converts the transducer output to a 0 to +2.5VDC signal.
Install the Sensor Mounting Shelf

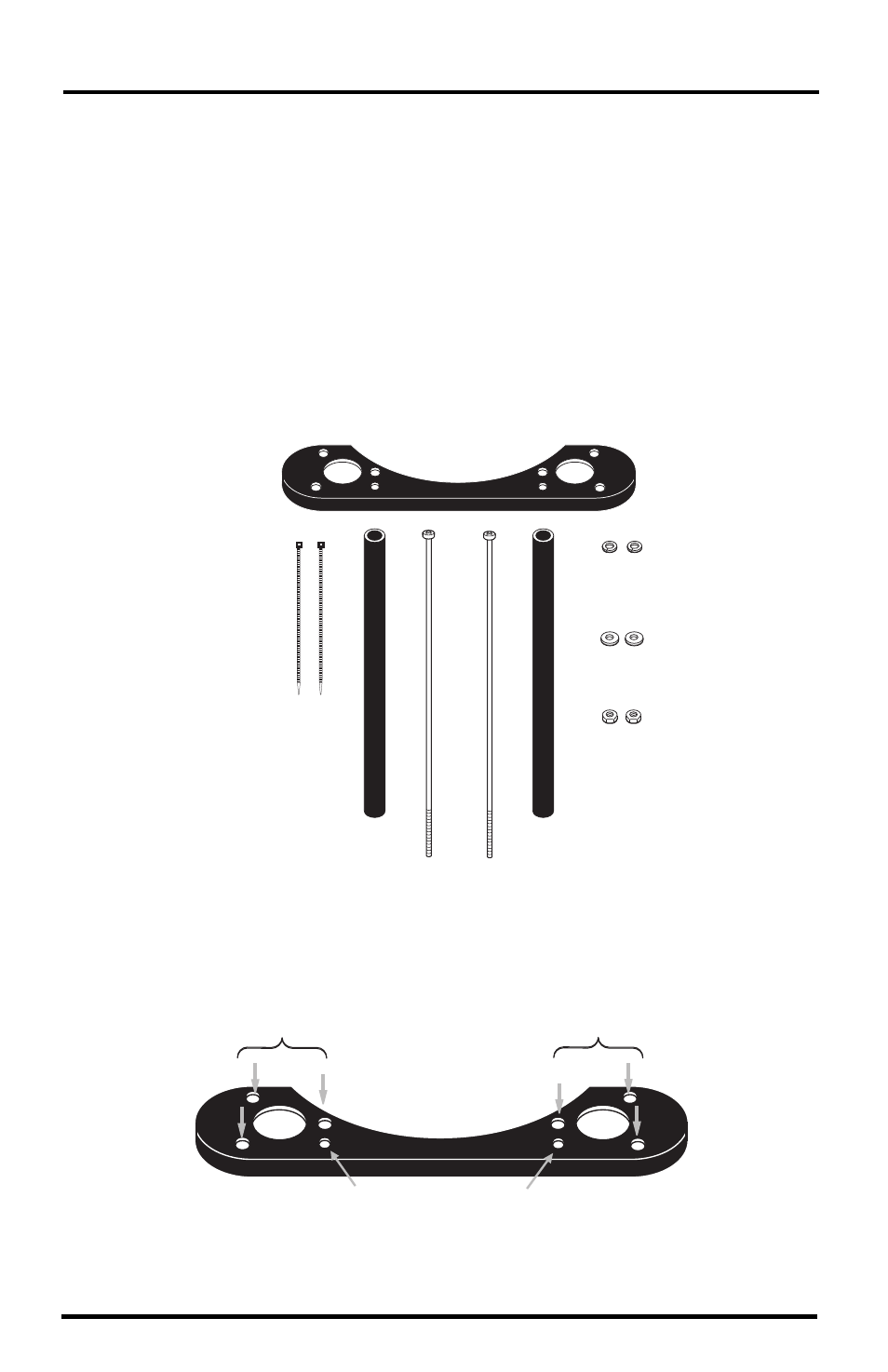

Sensor Mounting Shelf Components
The Sensor Mounting Shelf includes the following components:
#10-24 x 7-3/4" Screws
#10-24 Nuts
4" Cable Ties
#10 Lock
Washers
Support
Tubes
#10 Flat
Washers
Holes for Support Tube Screws
Three Holes for Sensor Screws
Three Holes for Sensor Screws
Use this illustration to identify which holes to use for the support tube screws.
