Page 15
Typical Installations
Standard System Installation Manual
Page 15

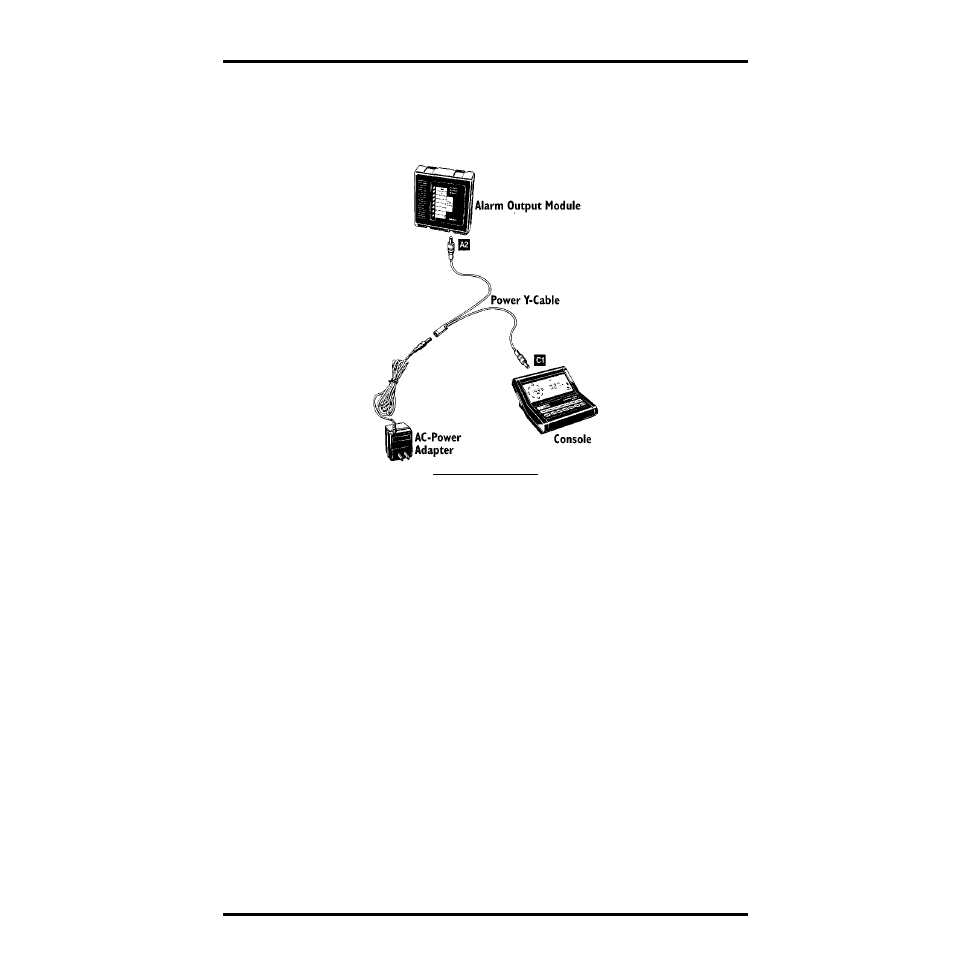

Using Power Y-Cable to Power Console and AOM
It is possible to use a power Y-cable to provide power to both the console and
the AOM using a single AC-power adapter, as shown below. The power Y-cable
is provided with the AOM.
U
SING
P
OWER
Y-C
ABLE
