Horizontal” orientation, Vertical” orientation – DAVIS Gro/Energy/Health Installation User Manual
Page 10
System Installation
Page 10
Standard System Installation Manual

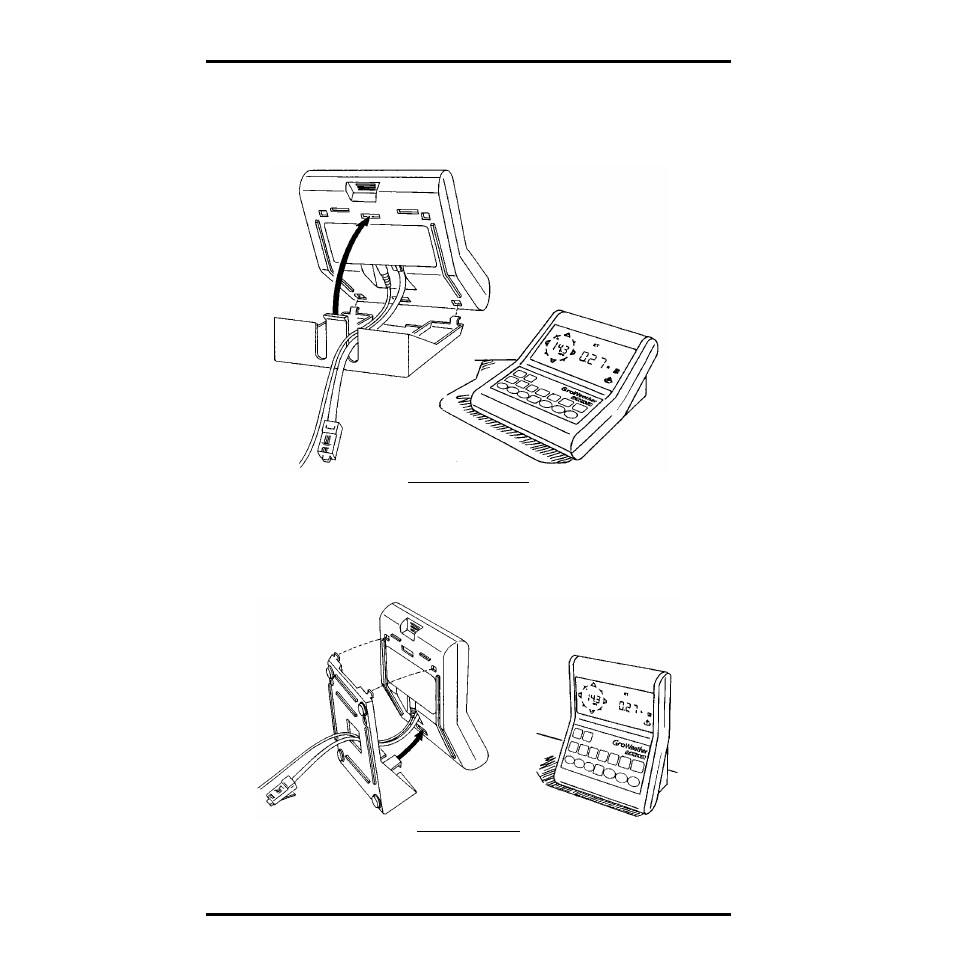

“Horizontal” Orientation
Use this mounting base orientation if the console’s LCD will be below eye level
once the console is positioned. Attach the mounting base as shown below and
then place the console onto any flat surface.
H
ORIZONTAL
O
RIENTATION
“ Vertical” Orientation
Use this mounting base orientation if the console’s LCD will be at or above eye
level once the console is positioned. Attach the mounting base as shown below
and then place the console onto any flat surface.
V
ERTICAL
O
RIENTATION
