Displaying the Console
Standard System Installation Manual Page 11
To Display the Console on a Wall
If you want to attach the console to a wall, follow the instructions below.
1. Mark the location of the two keyholes on the back of the mounting base.
2. Use a drill with a #29 (.136" or 3.5-mm) drill bit to make pilot holes in these locations.
3. Drive the two #8 x 3/4" pan head screws into the wall.
Leave at least 1/8" (3 mm) between the wall and the heads of the screw.
4. Attach the mounting base to the console in the vertical orientation position.
5. Slide the keyholes on the back of the mounting base over the two screw heads. Lock
the console into place by gently sliding it downward until it no longer moves.

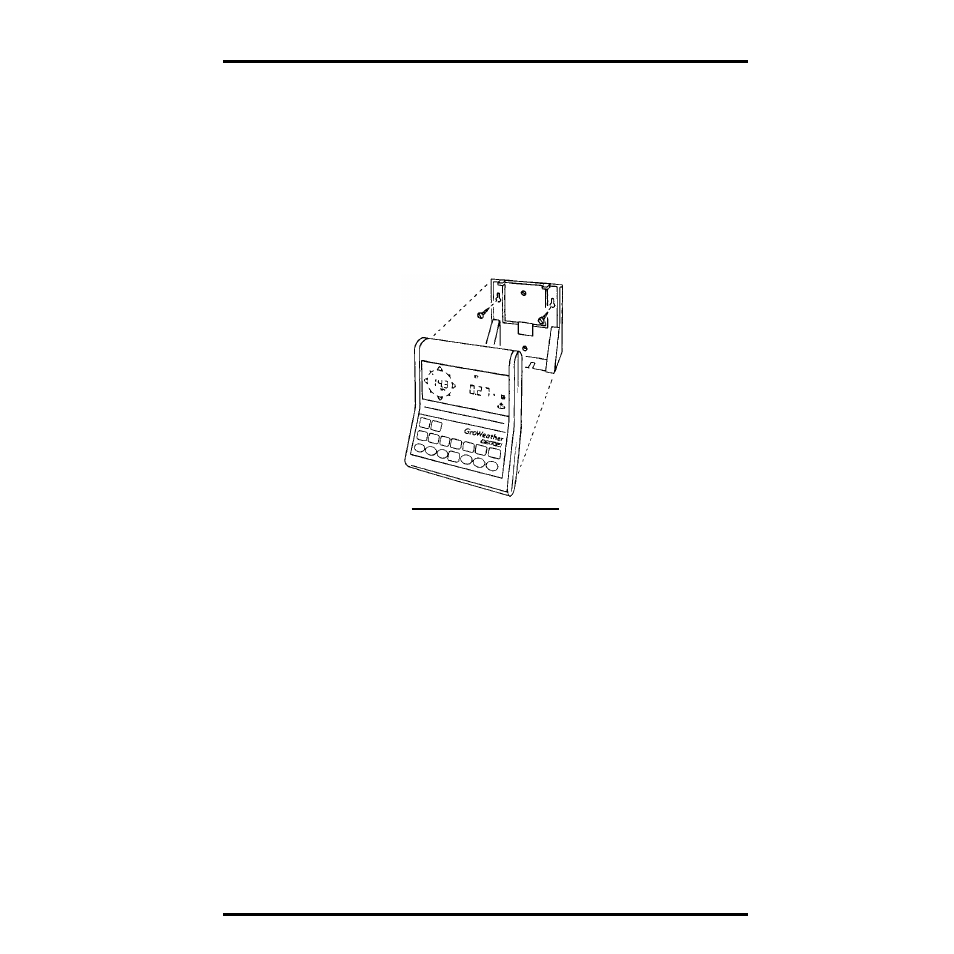

A TTACHING C ONSOLE TO A W ALL
