8
Mounting the Wireless Temperature Station
Mounting on a Pole
1. While holding the shelter against the pole, place a U-bolt around the
pole and through the two holes on at the top of the shelter.
2. Place a flat washer, a lock washer and a hex nut on each of the bolt ends.
Flat
Washer
Lock
Washer
Hex
Nut
U-Bolt

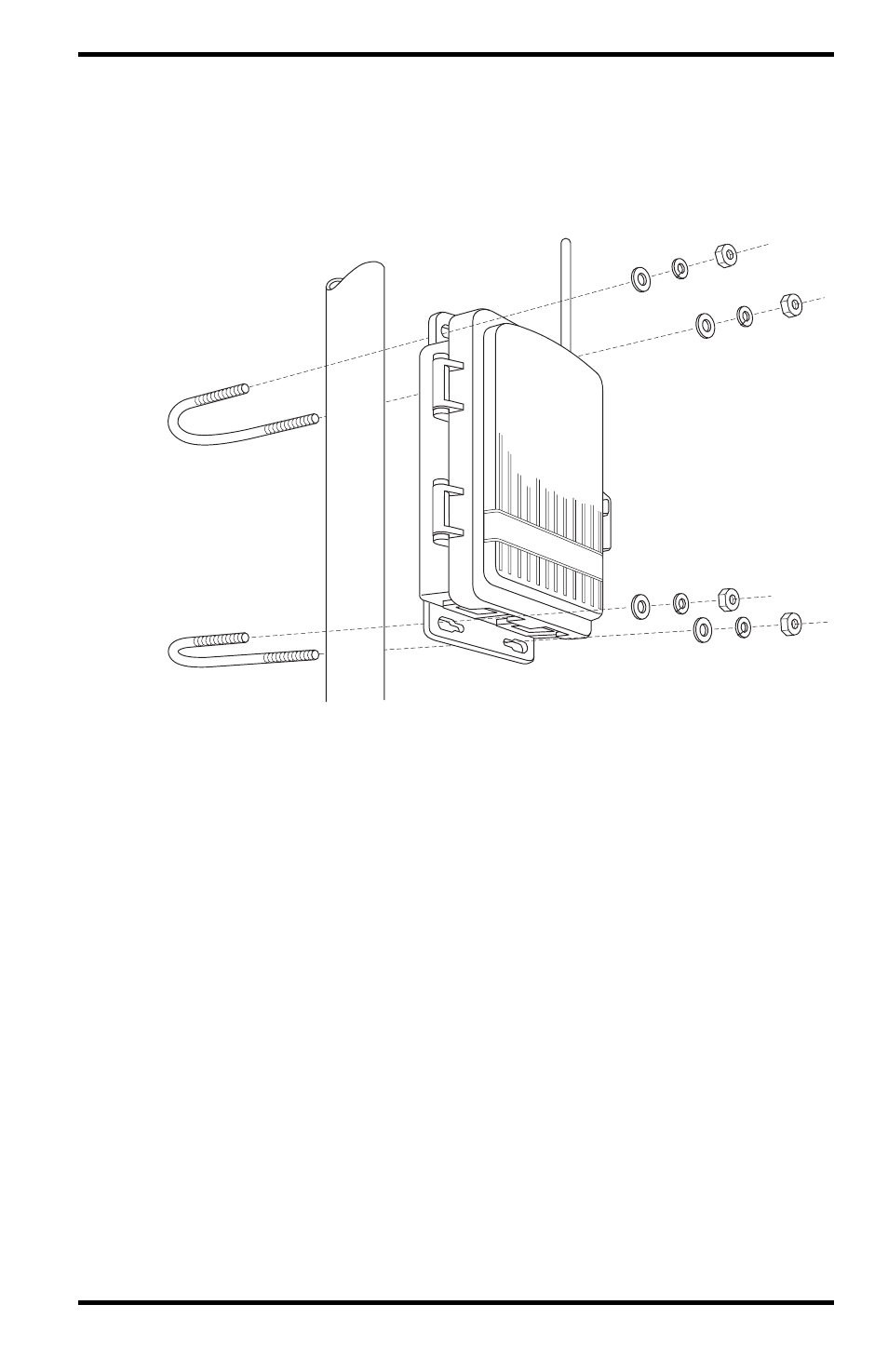

Mounting Temperature Station on a Pole
3. Using an adjustable wrench or 7/16" wrench, tighten the nuts.
4. Place the second U-bolt around the pole and through the two holes at the
bottom of the shelter.
Put a flat washer, a lock washer, and a hex nut on each bolt end, and
tighten the hex nuts.
