Alliance Laundry Systems HX - Manual (Page 73)

9001900 71
Section 4 Service Procedures
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
To reduce the risk of electrical shock, fire, explosion, serious injury or death:
• Disconnect electrical power to the washer-extractor before servicing it.
• Close the gas shut-off valve to the washer-extractor (when applicable) before servicing it.
• Never start the washer-extractor with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer-extractor is properly grounded.
W461R1
WARNING
24. REAR PANEL REMOVAL AND
REPLACEMENT
Refer to Figure 8.
REMOVAL
a. Turn off power to the machine.
b. Remove the screws that attach the rear panel to
the machine.
c. Remove the rear panel from the machine.
REPLACEMENT
a. Position the rear panel on the machine.
b. Replace the screws that attach the rear panel to
the machine.
25. SIDE PANEL REMOVAL AND
INSTALLATION
Refer to Figure 9.
REMOVAL
a. Turn off power to the machine.
b. Remove the screws and nuts that attach the side
panel to the machine.
c. Remove the side panel from the machine.
INSTALLATION
a. Position the side panel on the machine.
b. Replace the screws and nuts that attach the side
panel to the machine.

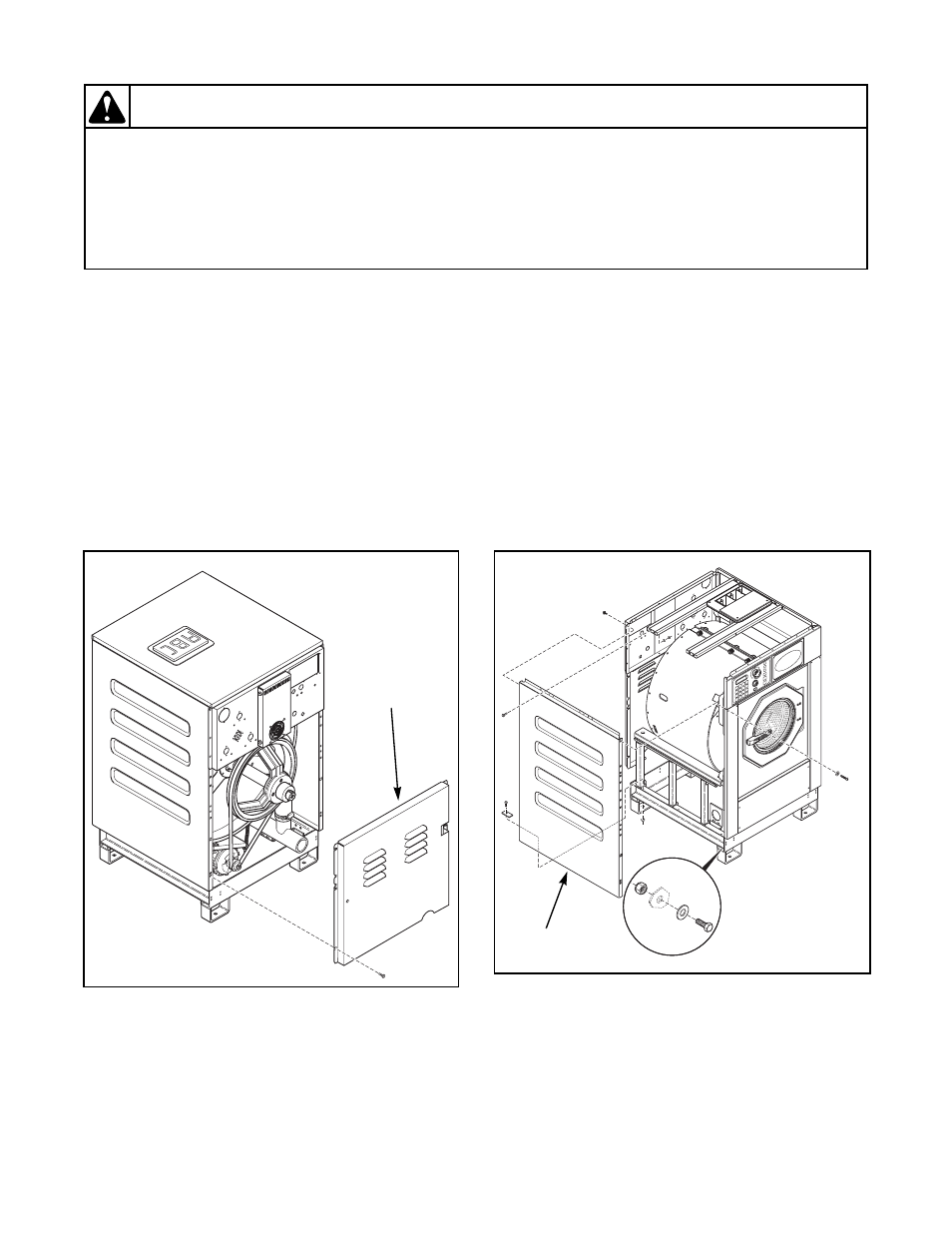

Figure 8
CFD7S
Rear
Panel
Figure 9
CFD8S
Side
Panel
