INSTALLATION
w w w .
D I A B L O S P O R T
. C O M

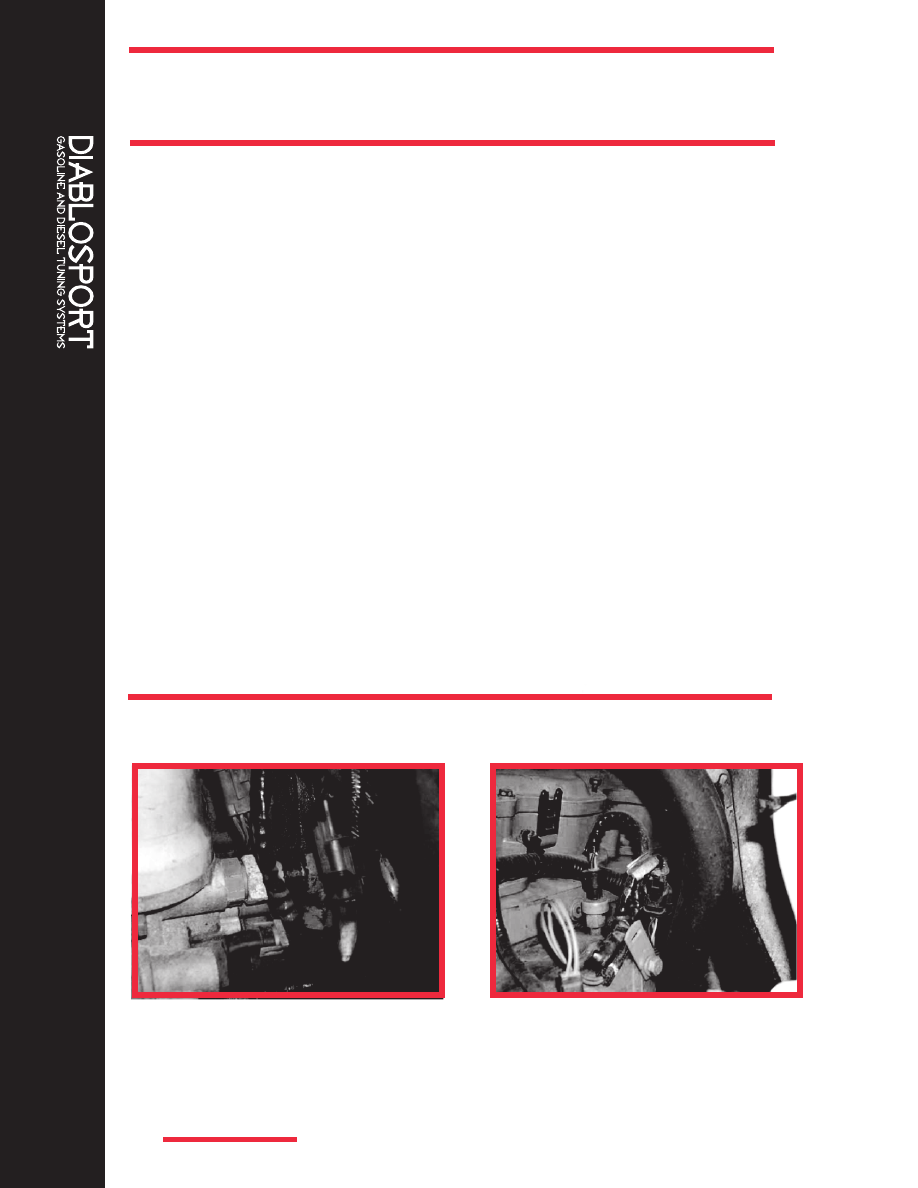

5. To locate your vehicle’s MAP sensor, simply locate the intake
manifold. This should be located on the rear of the engine closer
to the driver’s side next to the valve cover. The MAP sensor can
usually be identified by finding the sensor with green, white,
and pink wires.
6. Unplug your vehicle’s factory harness from the MAP sensor
and plug in the harness from your new DiabloSport
Extreme PowerPuck.
7. Mount the adjustable “Diablo Dial” in a convenient location
inside the cab of your vehicle.
