INSTALLATION
w w w .
D I A B L O S P O R T
. C O M

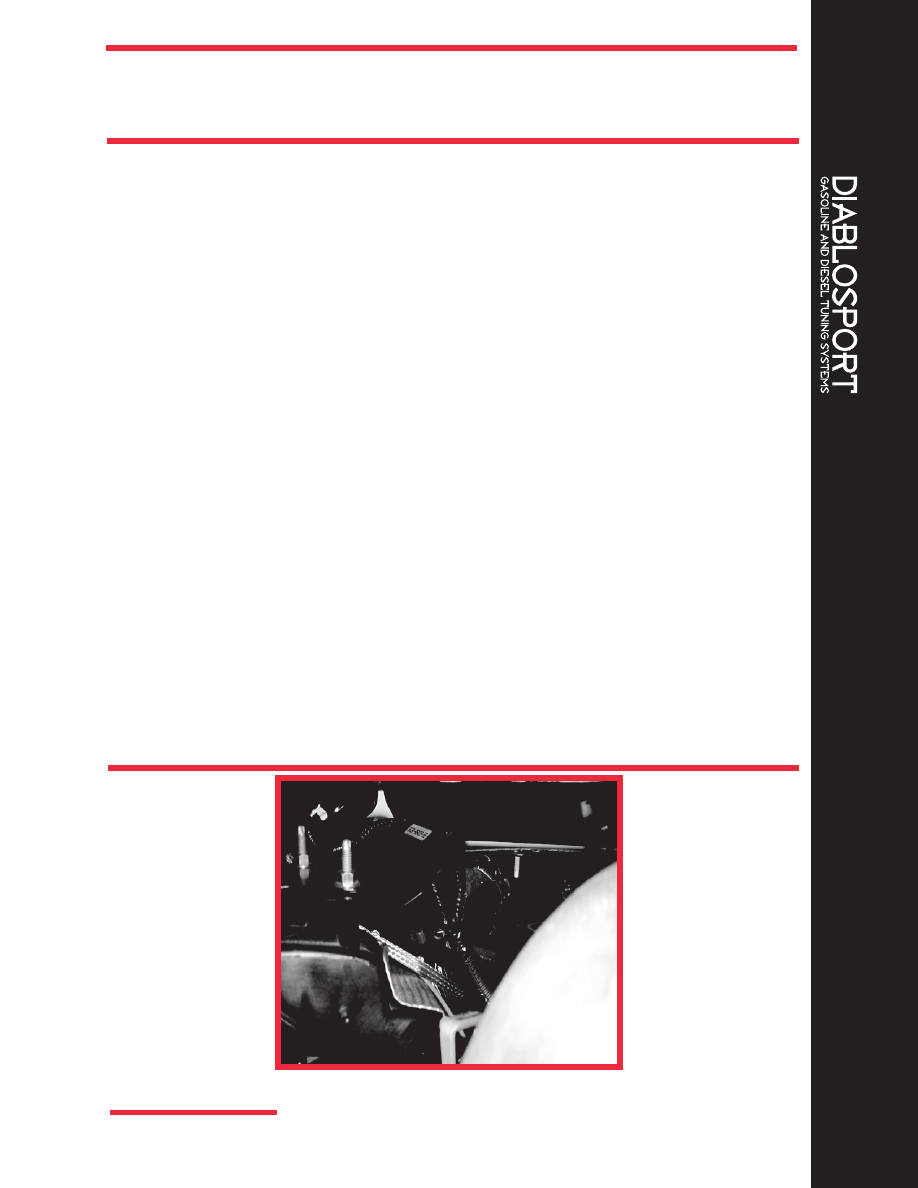

3. Locate your vehicle’s MAP sensor. This can be found on
your vehicle’s passenger side of the engine compartment.
It should be mounted to the heater box by a metal plate.
4. Unplug your vehicle’s factory harness from the MAP sensor
and plug in the harness from your new
DiabloSport Extreme PowerPuck.
5. Locate your vehicle’s injection control pressure sensor.
This can be found on the passenger’s side valve cover.
Disconnect the factory harness ensuring that the small key
connector is removed as well. If the key connector does not
come out with the harness simply use a small set of needle
nose pliers to remove the key and insert it onto the
factory connector.
2
2004
.5-2007.5 Ford Powerstroke 6.
0L
