1. Find a desired location under the hood of your vehicle to
mount the DiabloSport Extreme PowerPuck. Ensure that the
location you pick is free from extreme heat, moisture, and has
sufficient room for mounting.
2. Route the adjustable switch through the firewall into the
cab of your vehicle. Route the wire away from any moving
devices and away from extreme heat that may burn the wire.
Avoid cutting any factory wiring.
20
2006-2008 GM Duramax LBZ & LMM 6
.6L
GM Duramax LBZ & LMM 6.6L
2006-2008
INSTALLATION

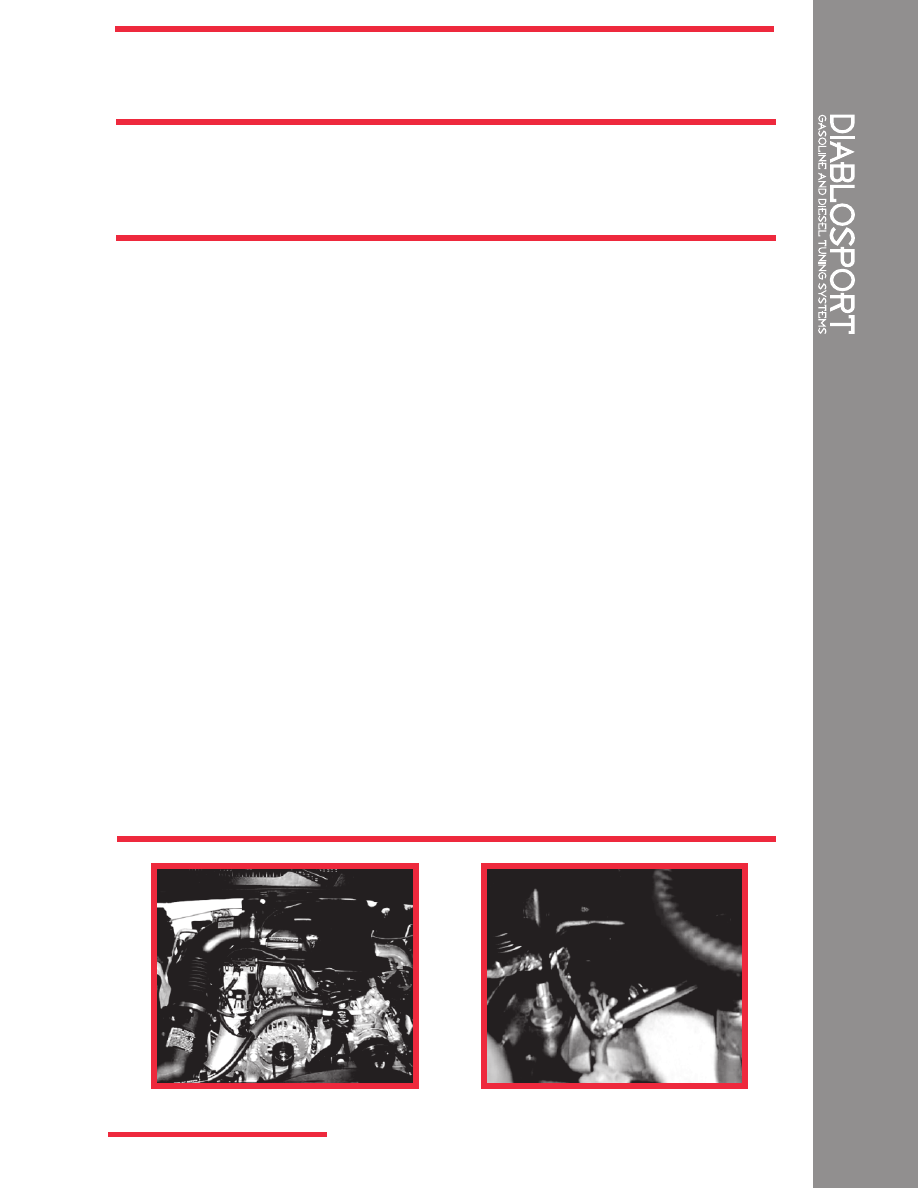

3. Locate your vehicle’s MAP sensor. The sensor should be
located just in front of the air intake manifold tube which is
located in front of the vehicle’s engine.(see picture)
4. Unplug your vehicle’s factory harness from the MAP sensor
and plug in the harness from your new
DiabloSport Extreme PowerPuck.
