INSTALLATION
w w w .
D I A B L O S P O R T
. C O M
3. Locate and remove your vehicle’s oil fillet cap and
plastic engine cover. This will expose the sensors which
you will need access to.(be sure to re-install the cap and
cover after step 4 is completed)

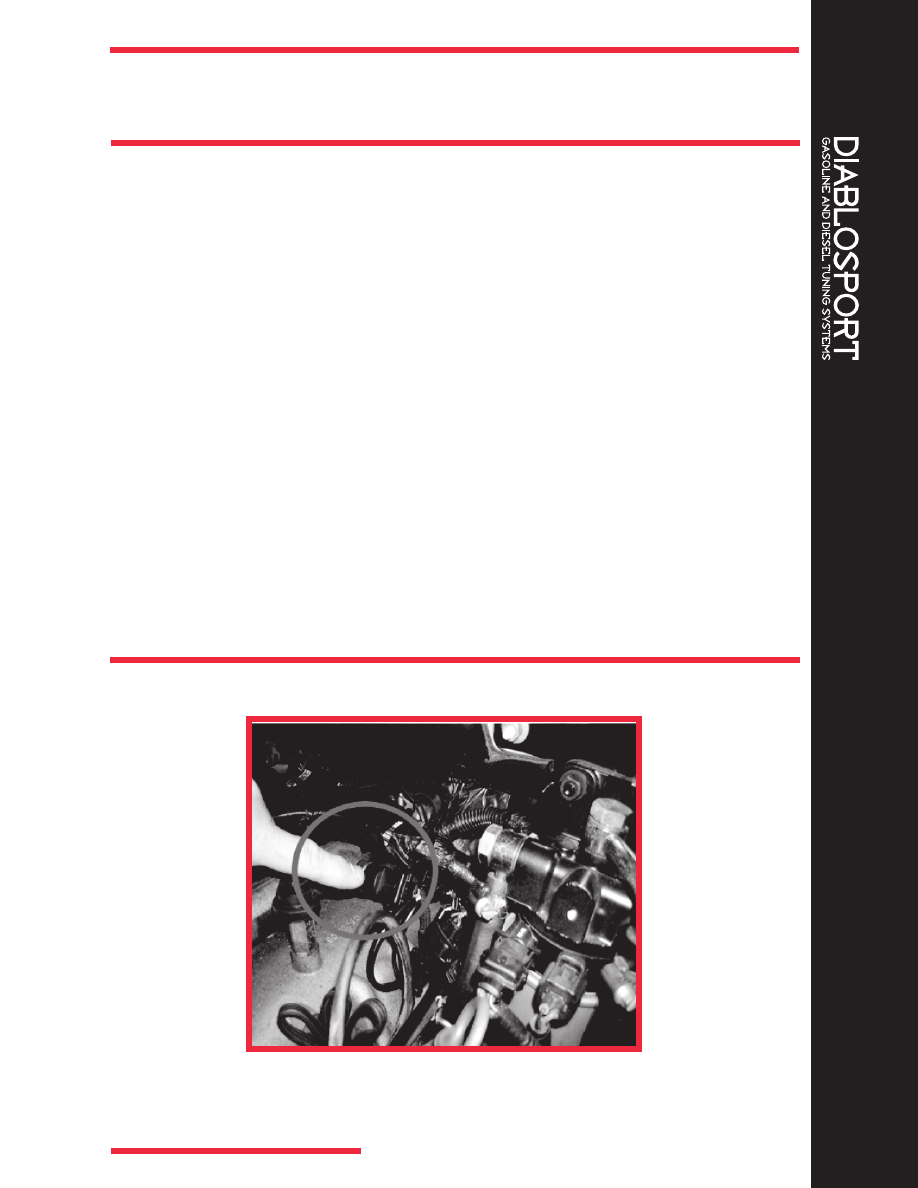

4. Look for a connector with a blue weather seal.
This is the MAP sensor. It can be found toward the back
of the engine compartment atop the firewall just under
the wipers on the driver’s side.
5. Unplug your vehicle’s factory harness from the MAP sensor
and plug in the harness from your new
DiabloSport Extreme PowerPuck.
