AirSep Corp. FreeStyle 5 Service Manual A-3

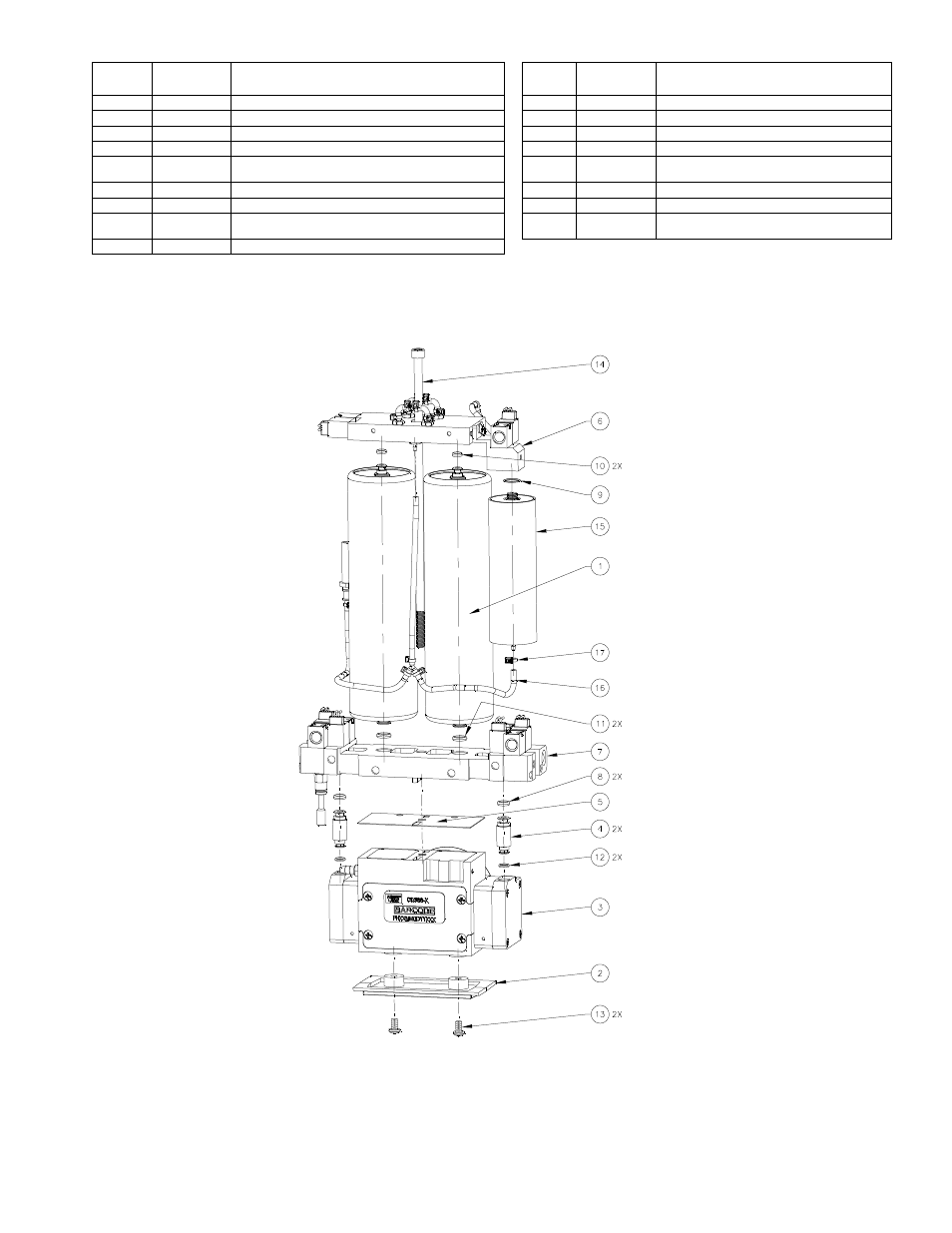

Figure A.3: PSA Assembly - Exploded
ITEM
PART
NUMBER
DESCRIPTION ITEM
PART
NUMBER
DESCRIPTION
1 BE214-1 BEDS, ASSY, MULTIPLE, 1.62” BED OD 10 OR027-1 O-RING, 1.5mm ID, 3.5mm ID
2 CA232-1 CABINET, COMPRESSOR, MOUNTING PLATE 11 OR027-2 O-RING, 1.5mm ID, 6.0mm ID
3 CO386-1 COMPRESSOR, ASSY, 1.252” BORE 12 OR028-1 O-RING, .045” CS, .167” ID
4 F0593-1 FITTING, COMPRESSOR 13 SC002-4 SCREW, PNH, PHILLIPS, 6-32, 1/4” LG
5 GS024-1 GASKET, NITRILE, COMPRESSOR/FW MANIFOLD 14 SC105-2
SCREW, CAP, SOCKET HD, HEX, 10-32, 7”
LG
6 MA215-1 MANIFOLD, ASSY, PRODUCT 15 TA155-1 TANK, VOLUME, ASSY, 1.125” OD
7 MA216-1 MANIFOLD, ASSY, FEED/WASTE 16 TU202-1 TUBING, ASSY,
8 OR025-3 O-RING, -008 17 TW011-1
TIE WRAP, NYLON, 2.83” LG, 0.065 W,
BLACK
9 OR026-1 O-RING, 1.0mm CS, 8.0mm ID
