MN179-1 _ 02/14 AirSep Corp. - FreeStyle 5 Service Manual
Rev B
Figure 5.34
Figure 5.35

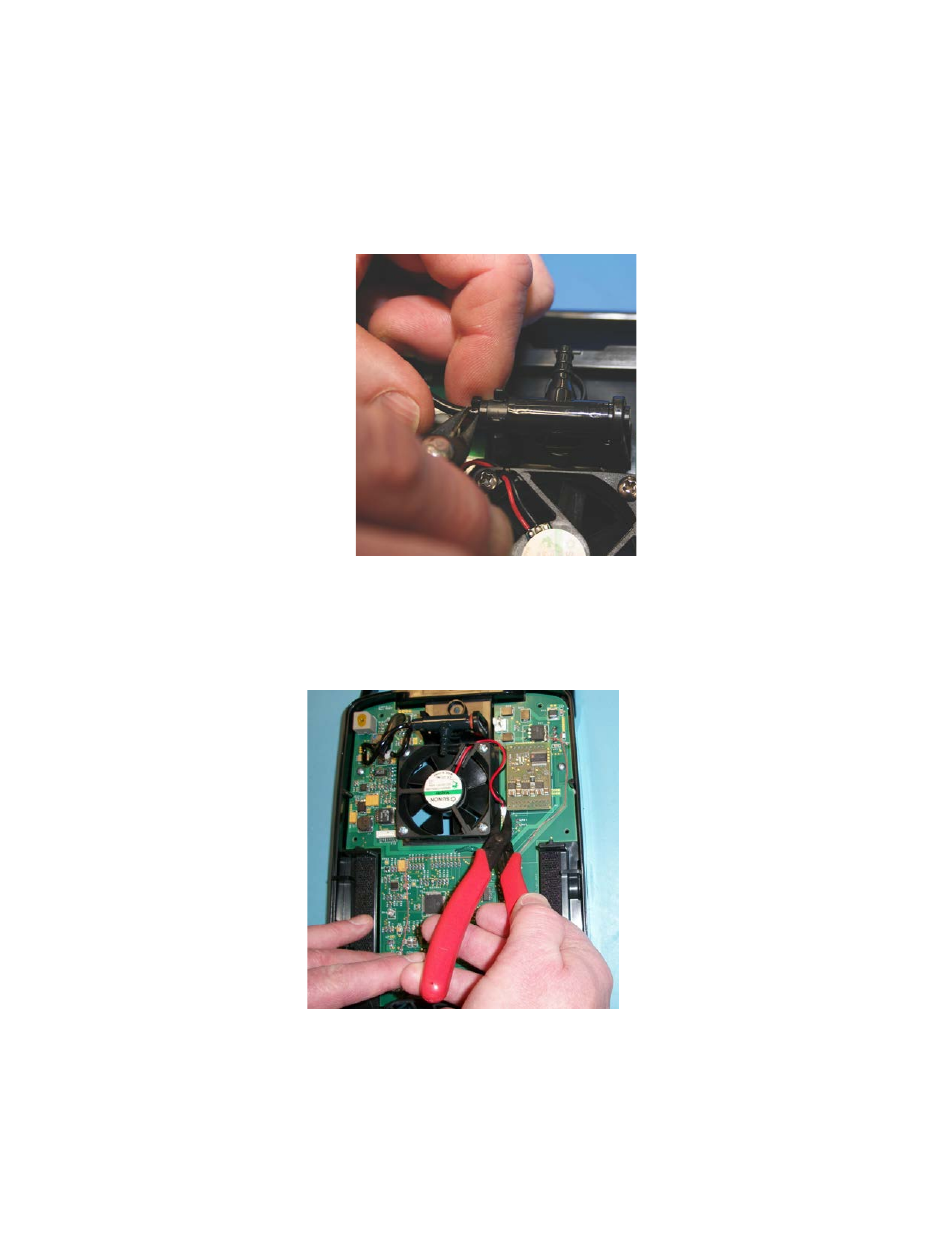

6. Turn unit over so that the main circuit board is facing up.
7. Remove motor controller board as per Section 5.12.
8. Remove cannula nozzle tubing by cutting tie-wrap (use small-size cutter).
Carefully pull tubing from nozzle barb.
9.
Disconnect fan connector using needle-nose pliers, carefully pulling upward
on fan connector housing at location J15 on main circuit board.
