MN179-1 _ 02/14 AirSep Corp. - FreeStyle 5 Service Manual

Rev B

5.2 Housing Removal

5.2.1 Removing Front Cover

1. Place unit on its back and position the outlet nozzle upwards facing forward.

2. Locate the three screws securing the front cover (top center, lower left,

and right).

3. Using a Phillips-head screwdriver, loosen, and remove the screws.

(See Figure 5.1.)

4. Lift off the front cover.

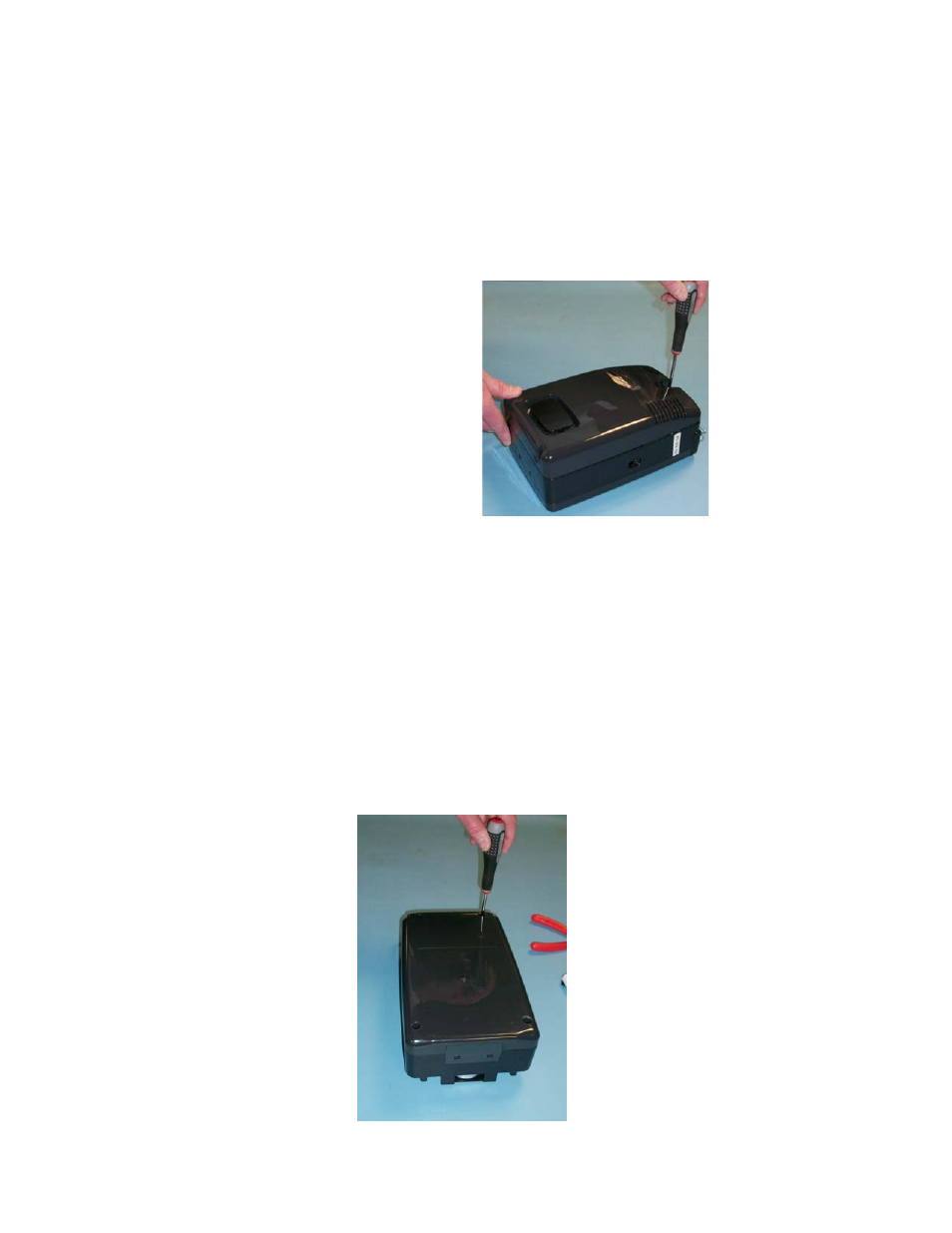

Figure 5.1

5.2.2 Removing Back Cover

1. Place unit on its front.

2. Locate the four screws securing the back cover.

3. Using a Phillips-head screwdriver, loosen and remove the screws.

4. Lift off back cover.

Figure 5.2
