2. Connect the AC/DC power supply (included with the AirBelt Accessory kit)
to the end of AirBelts power cord as shown in Figure 3.2.
3. Connect the AirBelt power supply to an AC electrical outlet to recharge.
Replace safety cap on AirBelt cord when not in use.
Do not attempt to charge the optional AirBelt with the any other power supply or the AirBelt can
be damaged. Use only the AirBelt power supply provided to charge AirBelt.
§ The FreeStyle 5 AirBelt will completely recharge from its fully depleted state in approximately 3 ½ hours.
§ While charging a fully discharged battery, the LED will continue to blink until 25% capacity is reached. The
LED will then turn solid.
§ Each of the four LEDs, 25% -100%, will blink as stated above, then turn solid when the battery reaches
it’s capacity .
§ When all LEDs illuminate solid, the battery is fully charged and the LEDs will remain solid for a period of
time, then all four LEDs will turn off.
Depending upon the temperature of the AirBelt battery, it can take several minutes for the
charging cycle to start after connecting to power. This is a normal condition and is intended for
safe charging.
Lithium batteries may permanently lose capacity when exposed to extremely hot temperatures with
the batteries fully charged or completely depleted. For extended storage, it is recommended that
batteries be charged 25 to 50% and remain within a temperature range of 73
°F (23°C) +/- 2°C.
The incorrect use of AirBelt can cause it to get hot, ignite, and may cause serious injury. Be
sure not to pierce, strike, step on, or drop the battery, or otherwise subject the battery to strong
impacts or shocks.

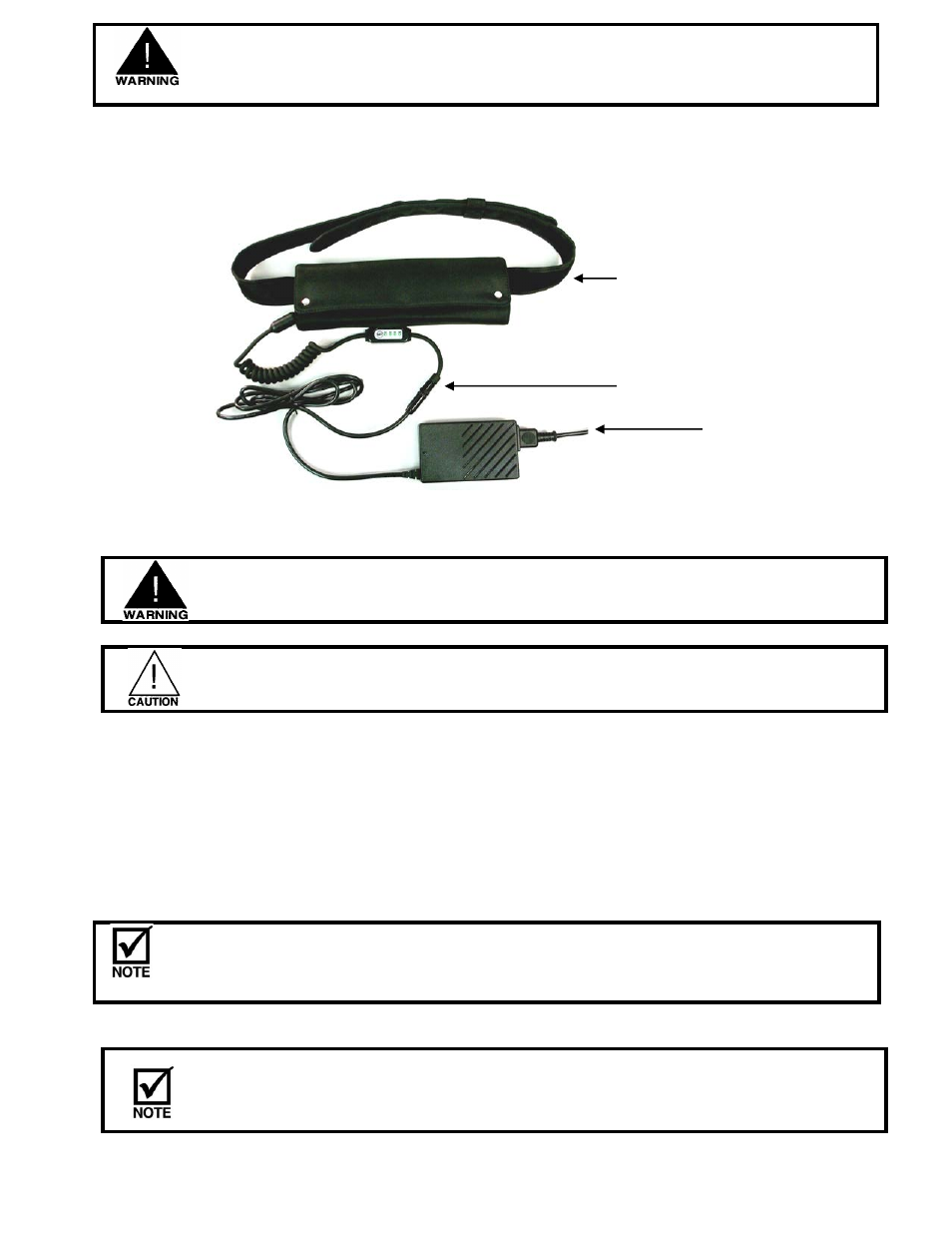

Figure 3.2: AirBelt Battery Charging set up
AirBelt
AC/DC Power Supply
Connecting the AirBelt cord to the
power supply cord
