Page 28
MN179-1 _ 02/14 AirSep Corp. - FreeStyle 5 Service Manual
Rev B
5.4 PSA Removal
1. Disconnect the FreeStyle 5 unit from the AC or DC outlet.
2. Remove the front housing.
3.
Remove the battery. Care must be taken when removing (J12) and (J14)
connector.

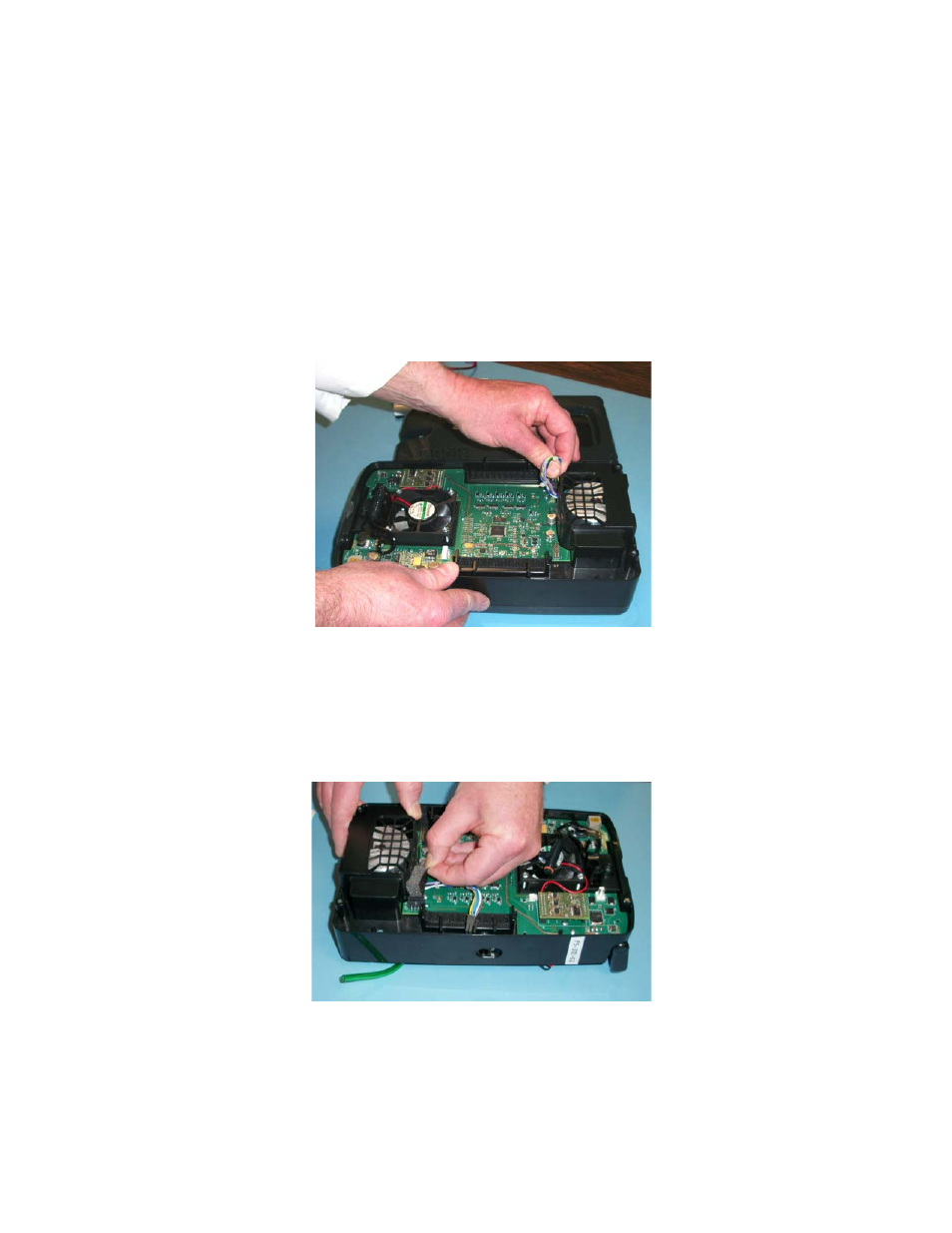

4. Disconnect the 8-pin connector (J17) with multi-color wires from the
circuit board. Care must be taken not to pull on wires. (See Figure 5.6.)
Figure 5.6
5. Remove and discard foam from the top of the oval opening.
(See Figure 5.7.)
Figure 5.7
