MN179-1 _ 02/14 AirSep Corp. - FreeStyle 5 Service Manual
Rev B

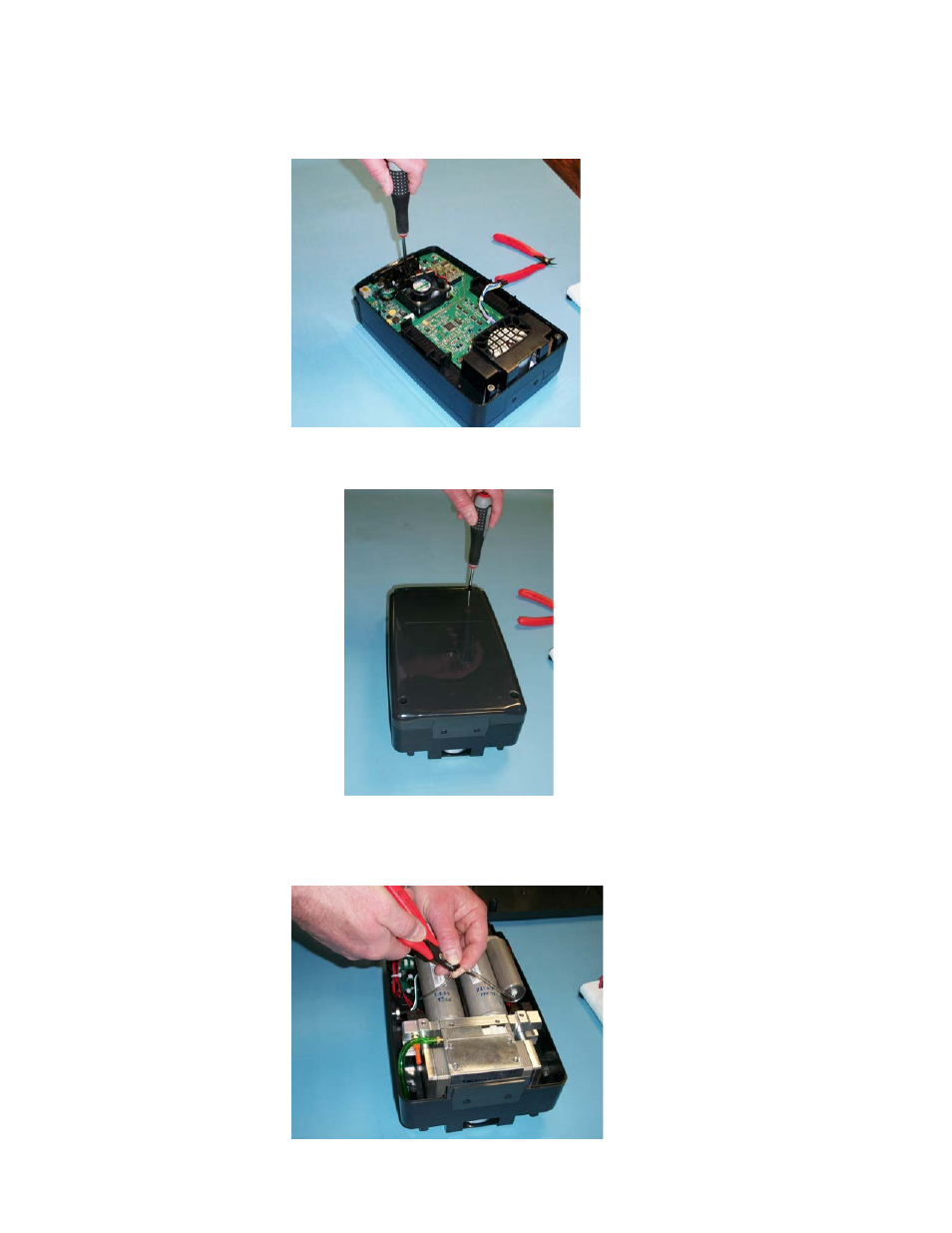

8. Remove the 8-32 x ¼” black Phillips screws located in the center of outlet
nozzle cradle. (See Figure 5.10)
Figure 5.10
9. Turn unit over and remove the back housing.
Figure 5.11
10. Disconnect the 1/8” OD tube from the Y-connector or T connector (which is located at the
back of the PSA system) that connects to the pressure transducer on the left side.
Figure 5.12
