Page 60
AirSep Corp. FreeStyle 5 Service Manual
A-2

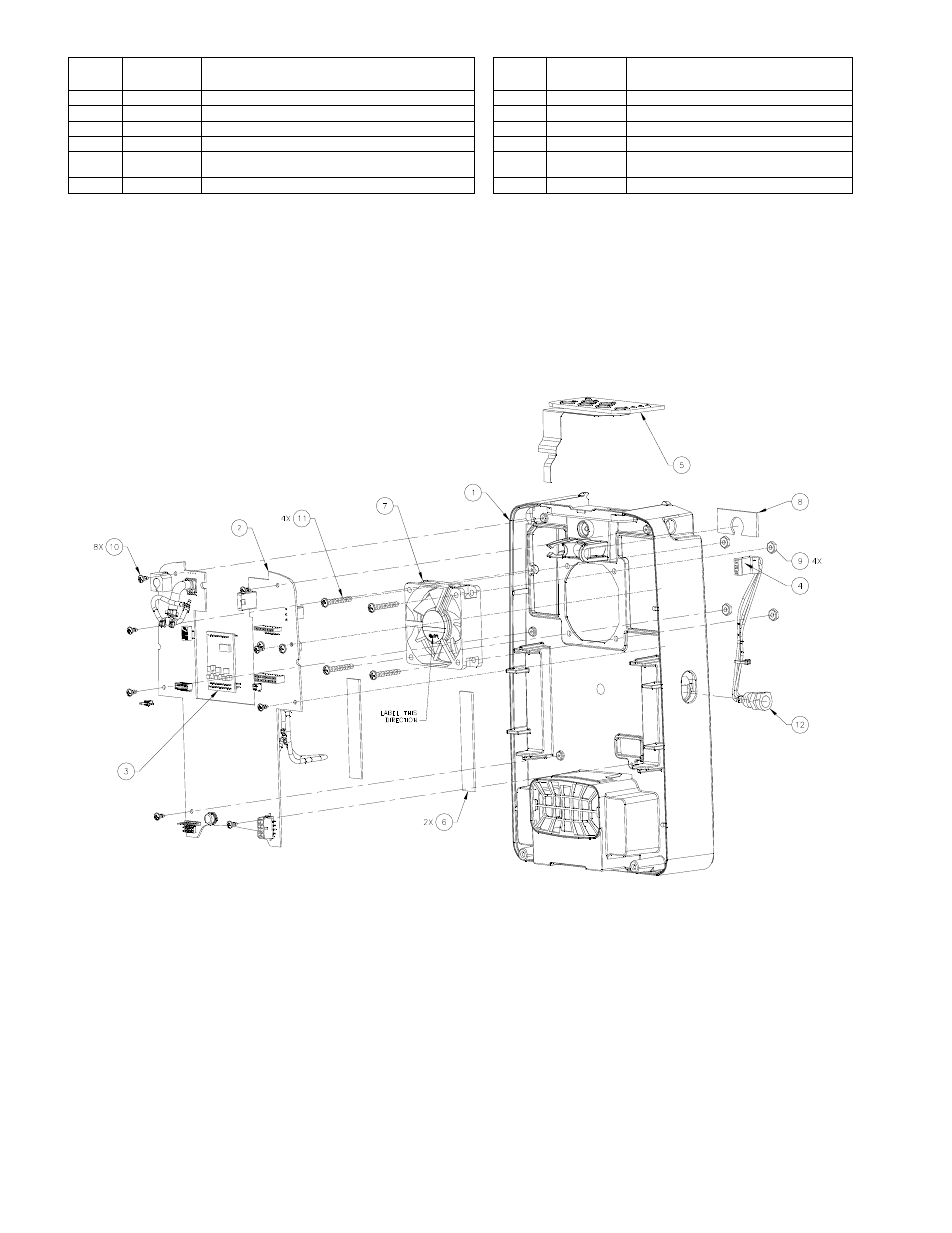

Figure A.2: Internal Rear View - Exploded
ITEM
PART
NUMBER
DESCRIPTION
ITEM
PART
NUMBER
DESCRIPTION
1
CA295-1
CABINET, HOUSING, CENTER
7
FN038-1
FAN, ASSY
2
CB115-1
CIRCUIT BOARD, ASSY, MAIN, TUBING
8
GS030-1
GASKET, NOZZLE
3
CB134-1
CIRCUIT BOARD, MOTOR CONTROLLER
9
NU003-1
NUT, STEEL, HEX, KEP, 6-32
4
CN089-1
CONNECTOR, RECEPTACLE, 3-PIN, .156 PITCH
10
SC002-1
SCREW, PNH, PHIL, 6-32, 1.0" LG
5
CP157-1
CONTROL PANEL, KEYPAD w/ RIBBON
11
SC037-3
SCREW, PNH, PHIL, PLASTITE, 4-20, 1/4"
LG
6
FA029-3
FASTENER, VELCRO, HOOKS
12
WH101-2
WIRE HARNESS, DC INPUT PLUG
