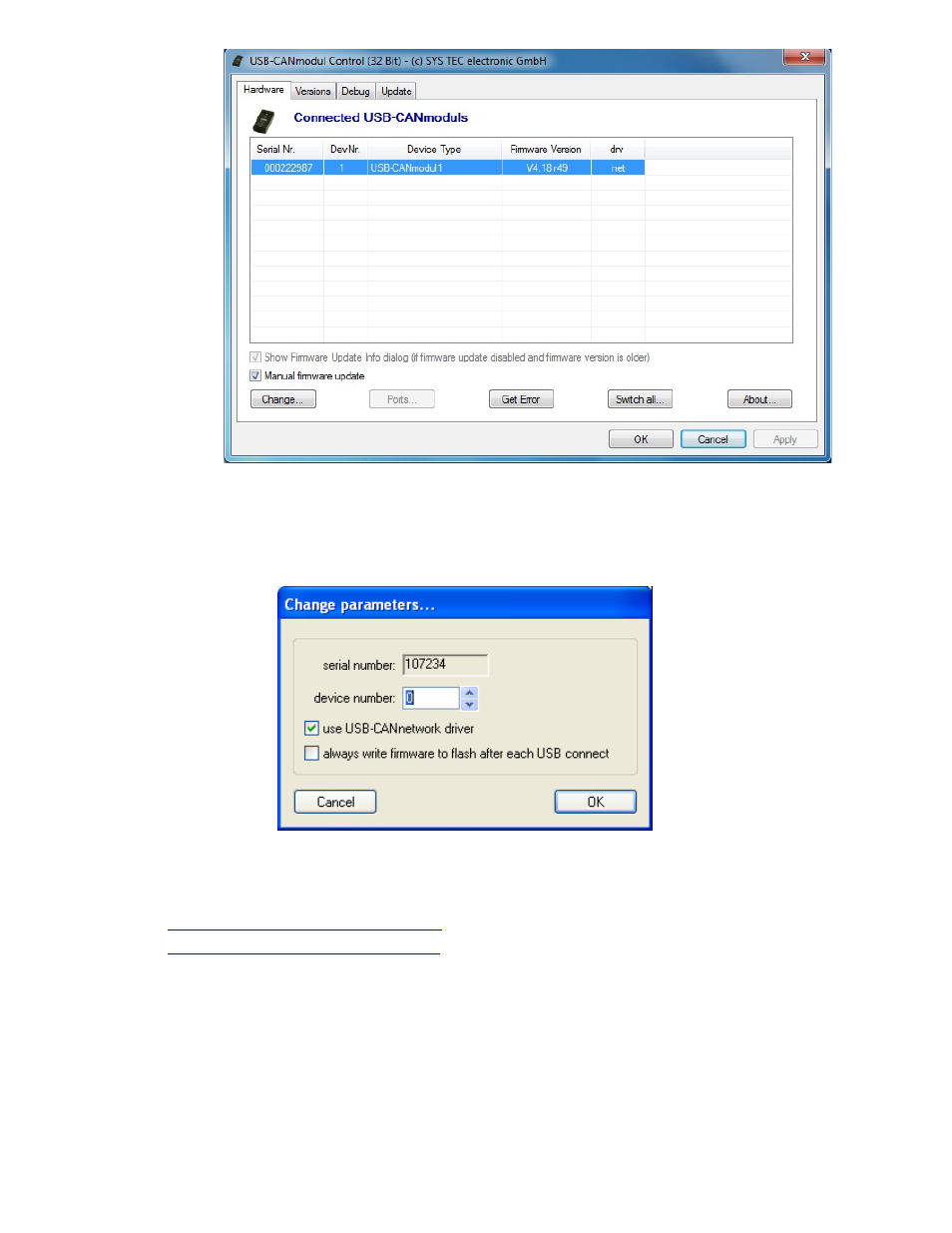

5. If you only have 1 hardware adapter connected, it should automatically be highlighted in blue.
Now press the “Change” button. A new dialog will be activated as shown below. Ensure that
the check for “use USB-CAN network driver” is checked.
a. If this checkbox is not available to be checked, uninstall the USB-Can Module Utilities
and reinstall the supported version linked above.
6. Press OK. Now press apply on the USB-CAN module Control window. Wait for a few seconds,
and Windows will run the found new hardware dialog and it will re-flash the firmware to the
CAN box. Press next through the screens and eventually press finish.
7. Install newest version of CAN Simulator
8. Install newest version of GPS Simulator
9. Now start up GPS and CAN Simulator and ensure that they are both set to use the Systec USB-
CAN adapter for their CAN interface. This will allow both applications to be connected to the
display’s CAN bus.
10. Start the GPS Simulator.
a. Go to File -> Open -> Sample tile path 8-27-12.gps
i. Click “Open”
ii. Or setup whichever field you desire
