5 2005946 revC
LED O
PERATIONS
The LEDs on the L160 are representative of specific increments away from the current guidance
pattern. These increments are based on measurements that you specified in the setup. For
example, if you specify that the increments for the LEDs should be 12”, if two yellow LEDs appear
on your lightbar your vehicle is between 6” and 18” off track.
The lightbar has four green LEDs in the center, and six yellow LEDs on each side of the center.
• The four green LEDs show that your vehicle is on-line. Only three will show if your vehicle is
slightly off-track to the left or right.
• The yellow LEDs show that your vehicle is off track, according to previously-specified
increments.

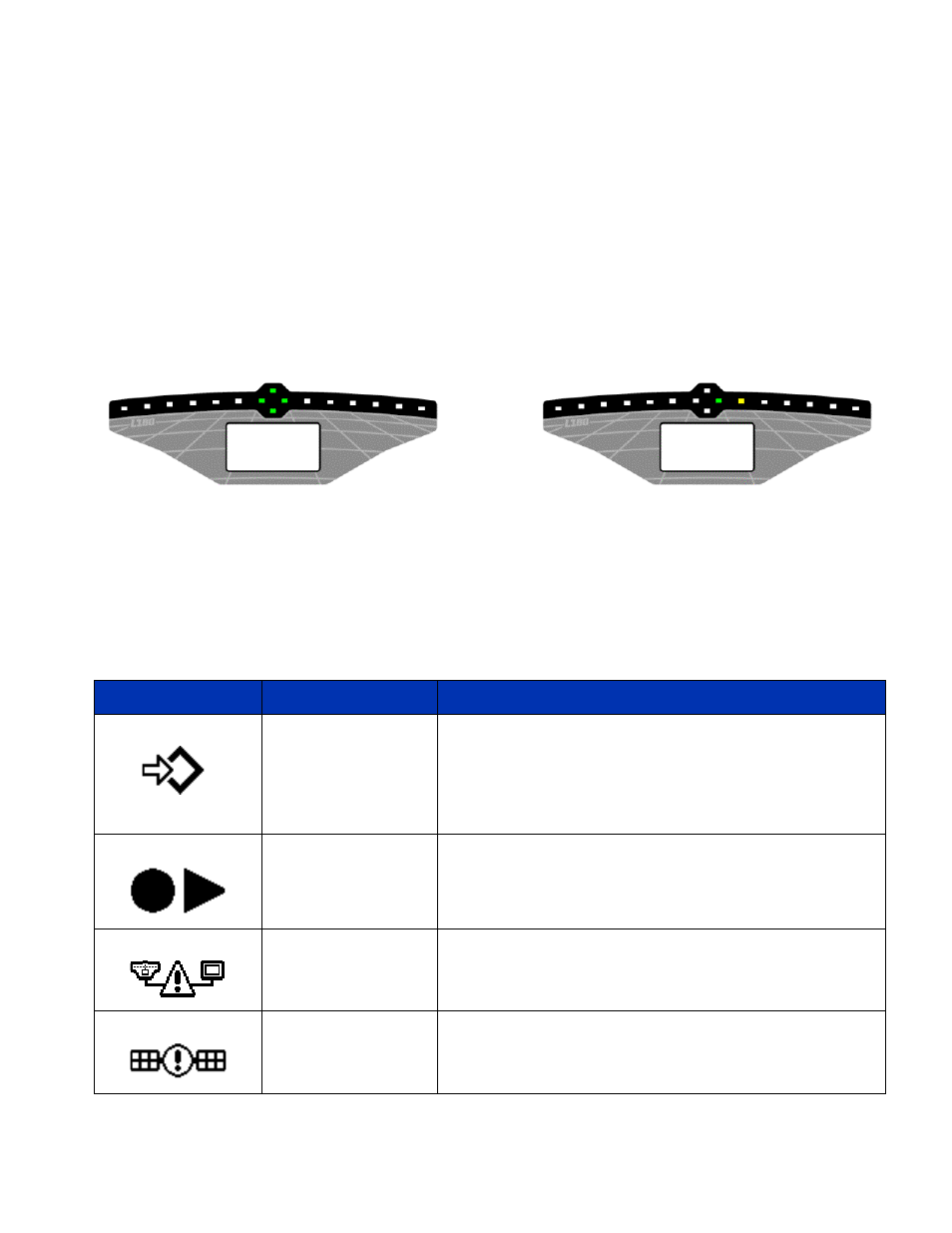

Vehicle On-Line
Vehicle Off-Track
S
TATUS
I
TEMS
During the lightbar’s operation, you may see various status items appear on the LCD screen. The
table below describes these items.
Status Item Name Description
System Ready to
Define Pattern
The lightbar is ready for you to set the A and B points
in your display (if required) in order to define the
guidance pattern. This item appears when no active
guidance pattern has been set.
Recording Pattern The display system is currently creating the guidance
pattern.
No Communication The lightbar is unable to communicate with the
display.
No GPS The display system is not currently receiving a GPS
signal.
