3 2005946 revC
M
OUNTING THE
L
IGHTBAR

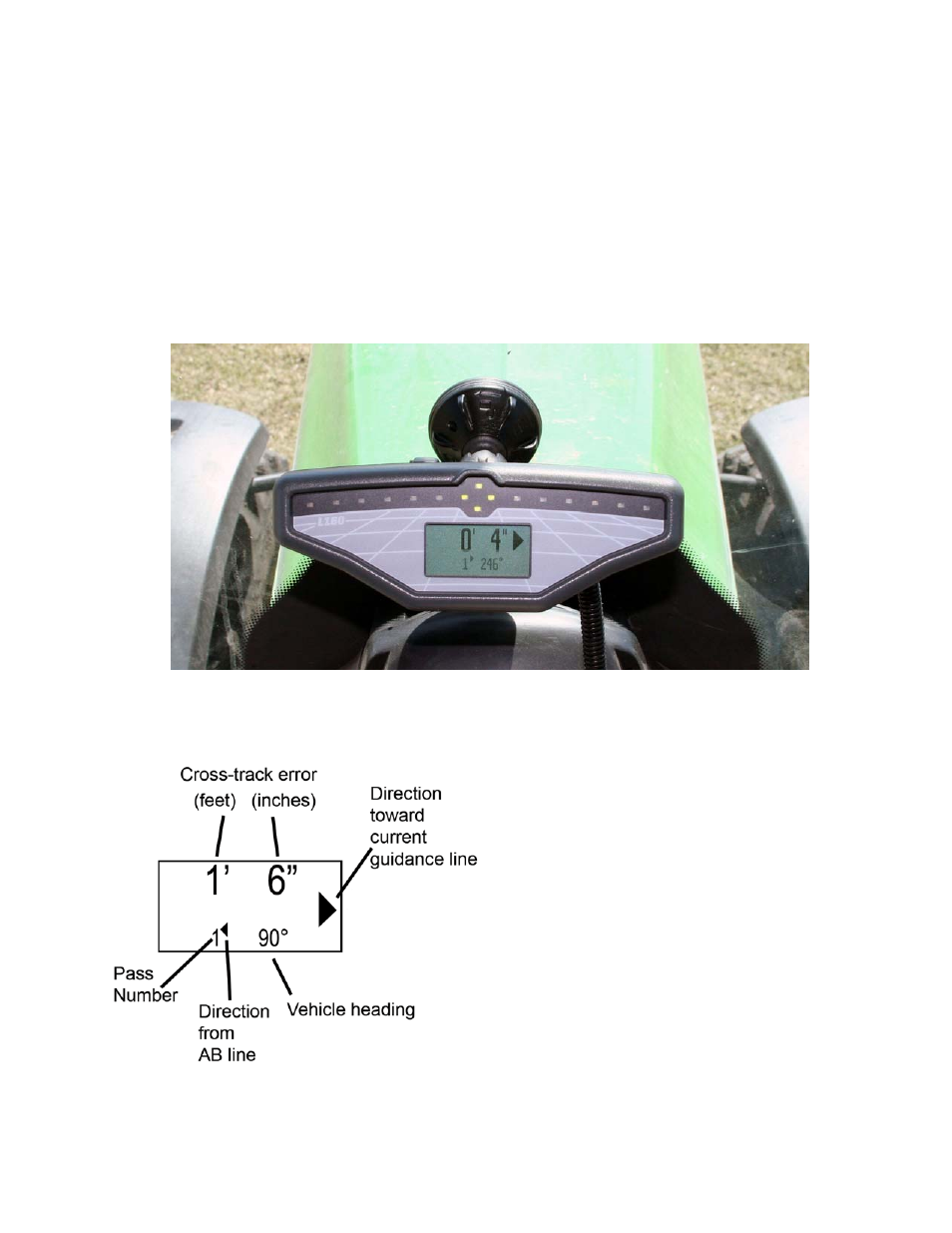

The L160 lightbar attaches to a flat surface in the cab of your vehicle. It is not intended to be
mounted outside of the cab.
1. Using the supplied screws (M5x0.8) , attach the RAM mount to the back of the L160 lightbar.
2. Select a clean, flat surface. If necessary, clean this surface with a damp cloth.
3. Securely attach the suction cup to this surface by turning the locking collar clockwise to the
lock position. A slight tug will confirm the suction cup is securely attached.
4. Adjust the L160 lightbar into a position that is viewable from the operator seat. Secure it in
position by tightening the RAM mount.
LCD S
CREEN
D
URING
R
UN
T
IME
Once you have created the pattern in the
display, the LCD screen will show a set of
numbers and arrows. The information on this
screen includes the cross-track error, direction
toward the current guidance line, pass number,
direction from the original AB line, and degree
heading. The cross-track error is shown in feet
and inches for operators using Imperial units,
and centimeters for those using metric units.
LCD Screen (Shown for Imperial Units)
