Installation on GreenStar™ Monitors GPS 1000 Plus
Ag Leader Technology
December 2003 2005638 4
6. Tuck blue and black wire's back into the corrugation of original harness.
Have the 9 pin connector come out near the gray 10 position connector.
Replace cable ties as necessary. See Figure 4.

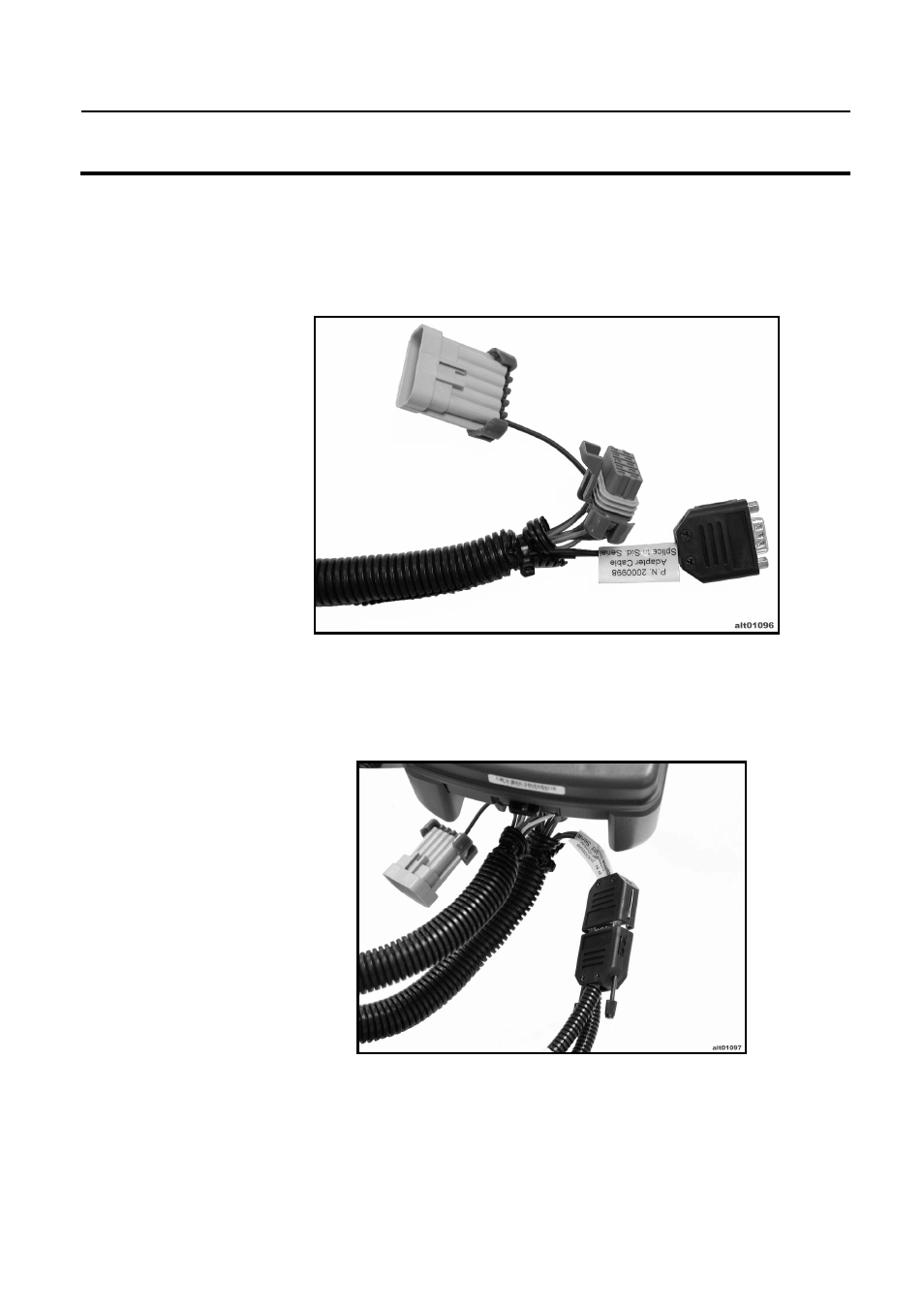

Figure 4. Cable corrugation back in place.
7. Connect 9 pin D-Sub connectors of P.N. 2000998 and P.N. 3000475 or
3000476. See Figure 5.
Figure 5. 9-Pin connector attached.
