Gps 1000 plus, Ag leader technology – Ag Leader GPS 1000 Plus to GreenStar Installation User Manual
Page 3
GPS 1000 Plus
Installation on GreenStar™ Monitors
Ag Leader Technology
December 2003
2005638
3

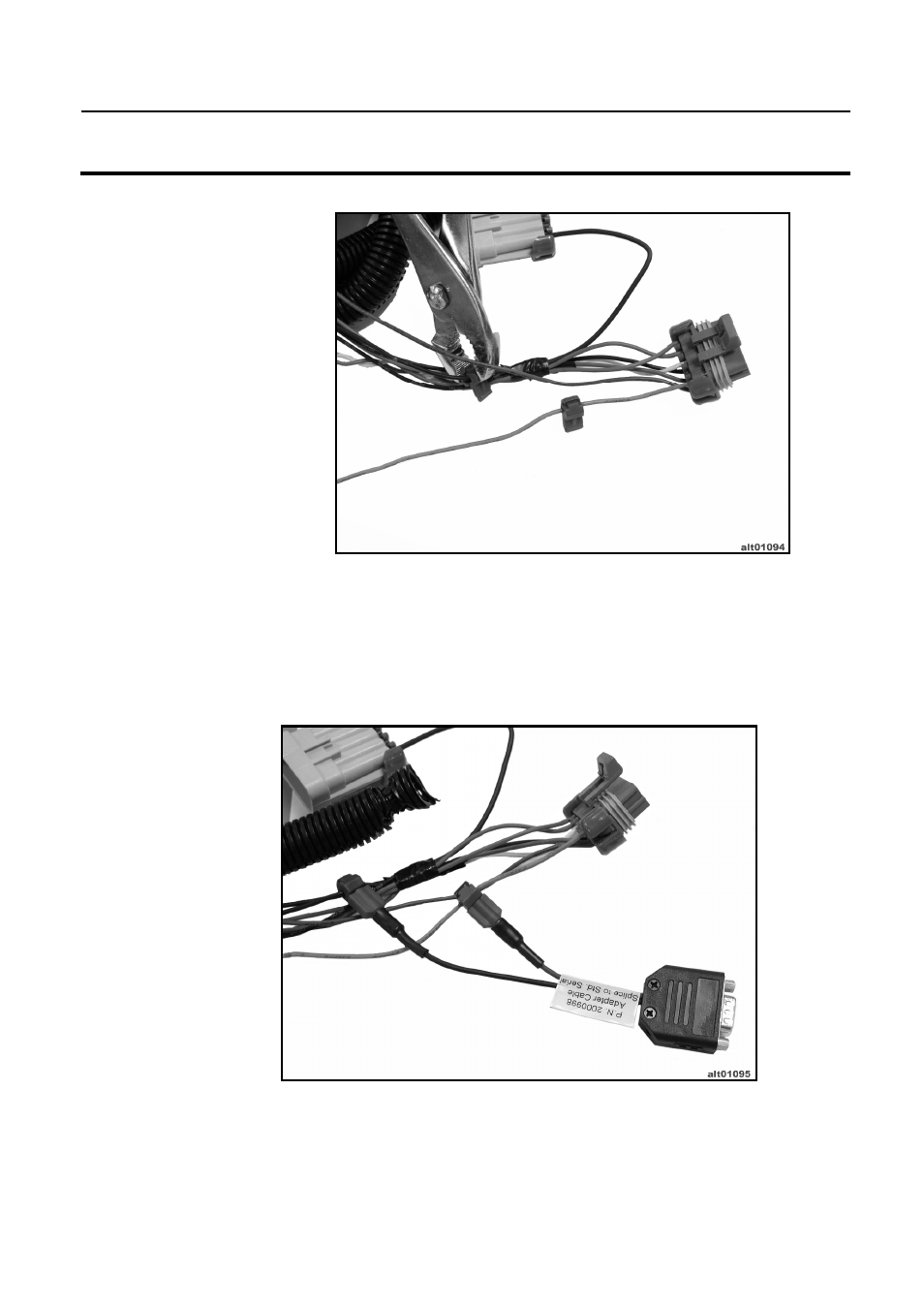

Figure 2. Installing Blue splice on wire 050B
5.
Connect blue terminals on adapter cable P.N. 2000998 to splices installed in
Step 2, in the following order (See Figure 3):
Black – Black
Blue – Light Blue
Figure 3. Adapter cable installed.
