ISO Serial Bridge Module
DirectCommand Sprayer
Quick Reference Guide
AL: 2006007 - ENG Rev A
Input number of Sections Enter Configuration Name C D

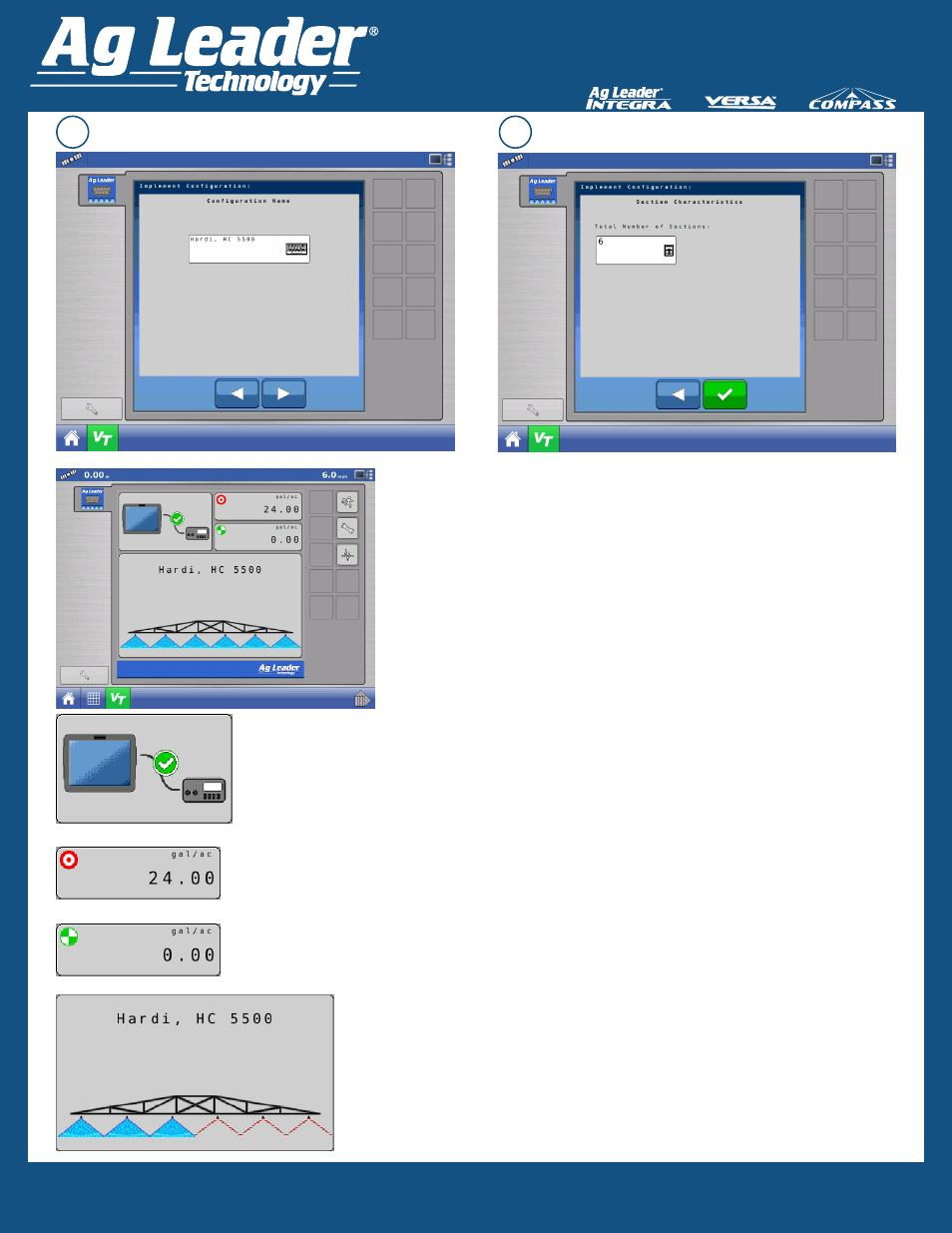

The status screen provides the user with readout of the
connected controller’s target rate, actual rate, section
status, and connection status.
Serial Connection Status – Indicates if the ISOBUS
Serial Application Rate module is communicating with the
connected controller.
Target Rate Status – Indicates the target rate sent to the
connected controller.
Actual Rate Status – Indicates the actual rate received from
the connected controller.
Boom Section Status – Indicates the on/off status of the
boom sections sent to the connected controller.
NOTE: The target rate is not editable from the VT screen.
This can only be done from the Run Screen
