DirectCommand TM
Strip Till / Air Cart
Quick Reference Guide
AL: 2006315 - ENG Rev B
PWM Frequency
frequency valve is pulsed at, settings come from
manufacturer, typical range: 100-125 Hz
PWM Gain
decrease to slow response time
Zero Flow Offset
duty cycle used to start rotating meter shaft, metering
system will not turn off if setting is too high,
default = 30
Allowable Error
error allowed before making rate control adjustments
Shaft Speed Calibration
pulses/revolution of metering shaft
Max Metering Speed
maximum allowable RPM of metering system
PWM Valve
Single Bin Actuator
one actuator controlling product
Multiple Bin Actuator, Main only
up to 3 actuators plus one main drive clutch controlling
product
Multiple Bin Actuator, Main + Channel
up to 3 actuators, one main drive clutch, and maximum
of 3 meter clutches controlling product
Linear Actuator/
Clutch Settings
IMPORTANT: When using linear actuator, all channels must be set to the same control valve
configuration regardless if channels are not in use.
Note: Additional information on Actuator/Clutch Logic can be found in the display user manual.

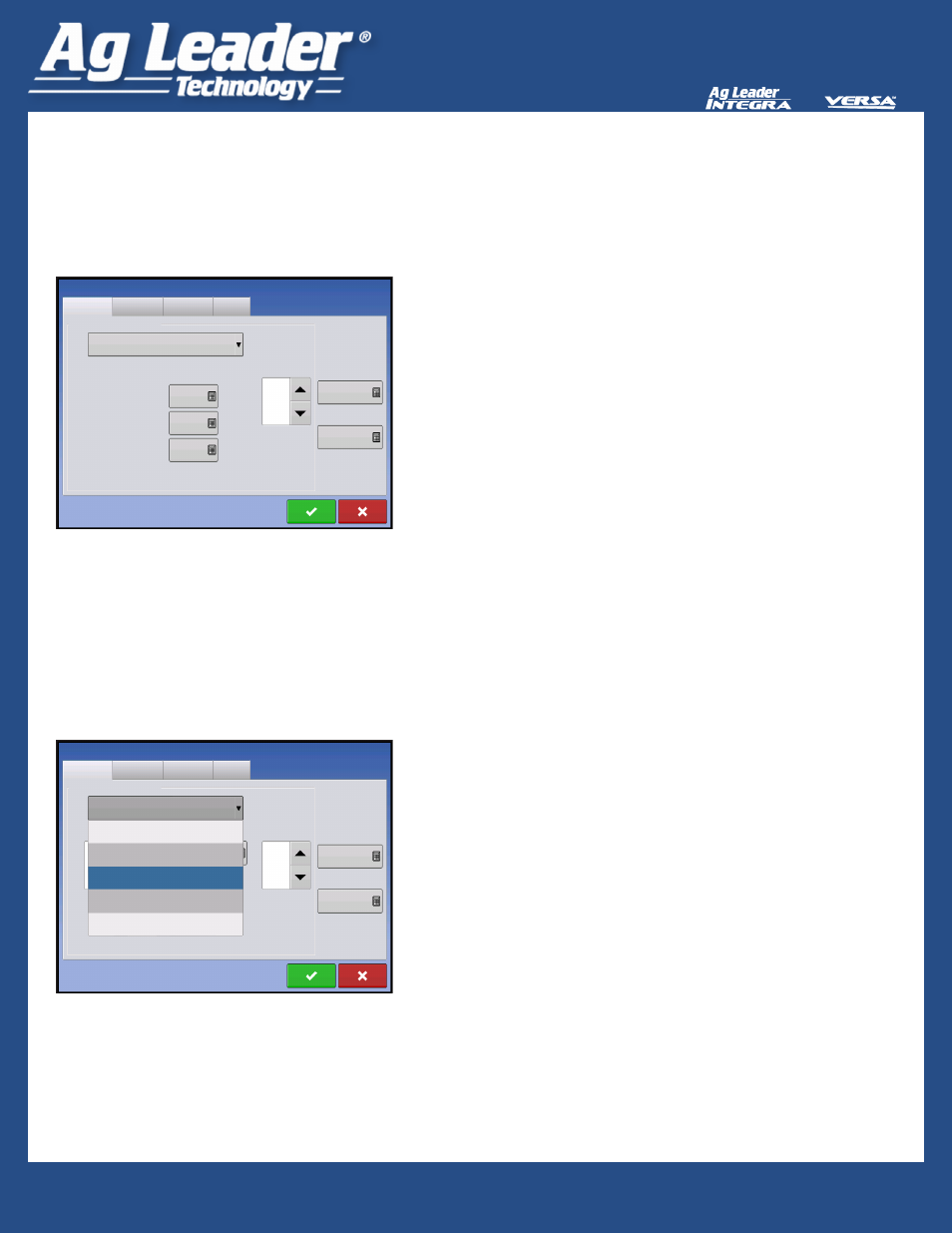

Control Valve Configuration
Channel 2 Channel 3 Auxiliary Channel 1
PWM
Allowable
Error
Max Metering
Speed
Shaft Speed
Calibration
180 pls/rev
100 rpm
2 %
100
30
100
Strip Till Control
PWM Frequency
PWM Gain
Zero Flow Offset
Channel 2 Channel 3 Auxiliary Channel 1
100 rpm
Strip Till Control
Allowable
Error
PWM
Single Bin Actuator
Multiple Bin Actuator, Main Only
Servo
Single Bin Actuator
Control Valve Configuration
Multiple Bin Actuator, Main + Channel
Shaft Speed
Calibration
Max Metering
Speed
2 %
180 pls/rev
