DirectCommand
TM
Norac UC5
Quick Reference Guide
AL: 2006313 - ENG Rev C

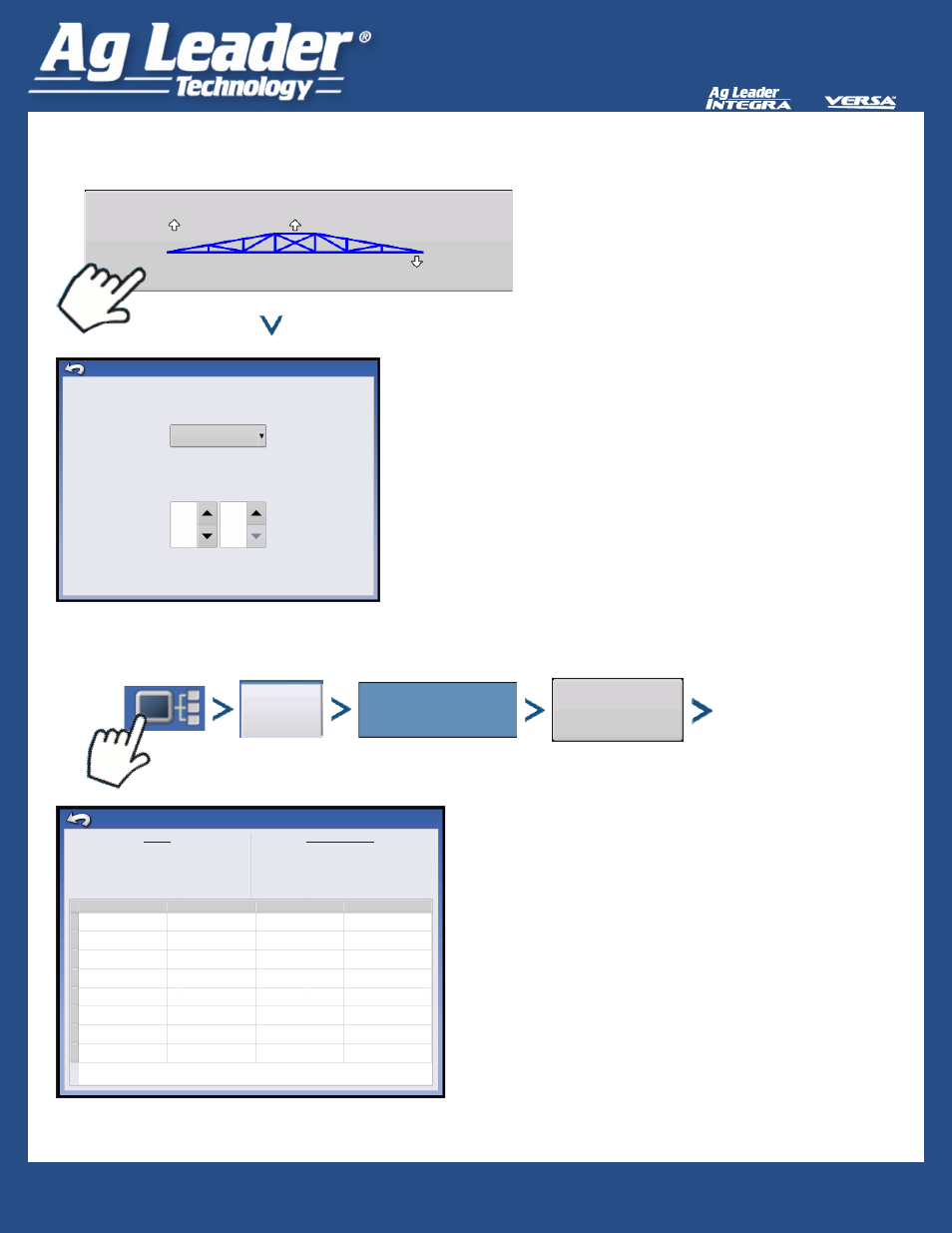

Boom Height Diagnostics
shows all data for individual sensors, including
height, roll, and temperature
Boom Height Control Options Screen
Mode
Crop Mode or Soil Mode
Target Height
desired boom height:
Soil Mode - distance above ground
Crop Mode - distance above crop canopy
Sensitivity
higher values make height control more responsive
Settings range from 0-10
Mode: Crop Sensitivity: 5 Target Height: 12 in
8.0 50 F 13.1 9.2
Boom Height Diagnostics
1 Left Outer 100 0 cm 21.1 C
2 Left Inner 103 0 cm 21.1 C
3 Main Lift 101 0 cm 21.1 C
4 Right Inner 104 0 cm 21.1 C
5 Right Outer 102 0 cm 21.1 C
6 Boom Frame 105 0 cm N/A
7 Intermediate Frame 106 0 cm N/A
8 Reference Frame 107 0 cm N/A
Control Mode
Target Height (cm)
Remote Switch Left
Automatic Roll
Right
Center
Automatic
Automatic
Automatic
30.4
Crop
General Boom Control State
Location Serial Height/Roll Temperature
Boom Height Diagnostics
Crop Mode
Target Height Sensitivity
5 12
CAN A 127 NORAC UC5 Diagnostics
