Display Quick Reference
Guide
Quick Reference Guide
2005979-ENG Rev F / AF:602-0300-01-E

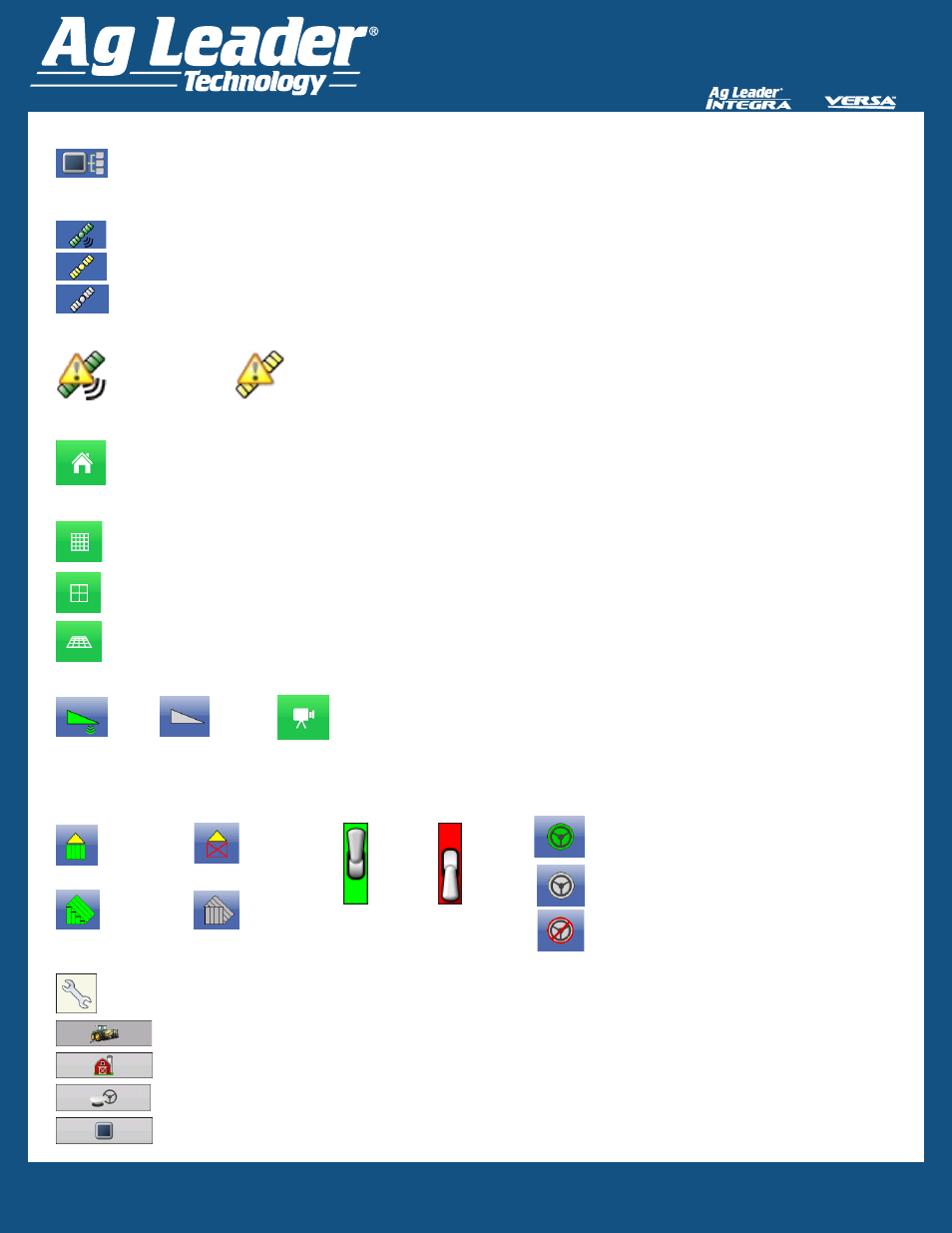

Task Bar Buttons
Setup Buttons
Function Buttons
Status Bar Icons
GPS Button - access diagnostic information about the GPS signal
Devices button - shows display information and diagnostics.
Home - returns to the home screen
Map View
Norac Engage Buttons
Video Screen Button takes you to the video screen
Master Switch Area Logging Status
AutoSwath
Setup (on Home screen) - use to access the following features:
Configuration - create and adjust settings of vehicle, implement, controller, and product
Management - create and edit grower, farm, field operator and season
GPS - enter and adjust guidance, GPS settings, and lightbar settings
Console - adjust time, date, brightness, volume, operating units, language; enable video
and virtual terminal; view features, and create and restore backups
Zoom to Extent - vehicle Icon is shown by an arrow inside a circle
Zoom to Detail - vehicle appears as a gold-colored triangle icon; changes to indicate data
being logged in the field.
Perspective View - only available when guidance is active
On Off
On Off
On Off
Green - receiving corrected GPS signal
Yellow - receiving GPS signal only
Gray - no GPS signal
Flex Mode
Green - On Yellow - Exceeded
On
Steering Status
Engage - ON
Engage - Ready
Engage - Not Ready
Off
