DirectCommand
TM
Sprayer
Quick Reference Guide
AL: 2006310 - ENG Rev B

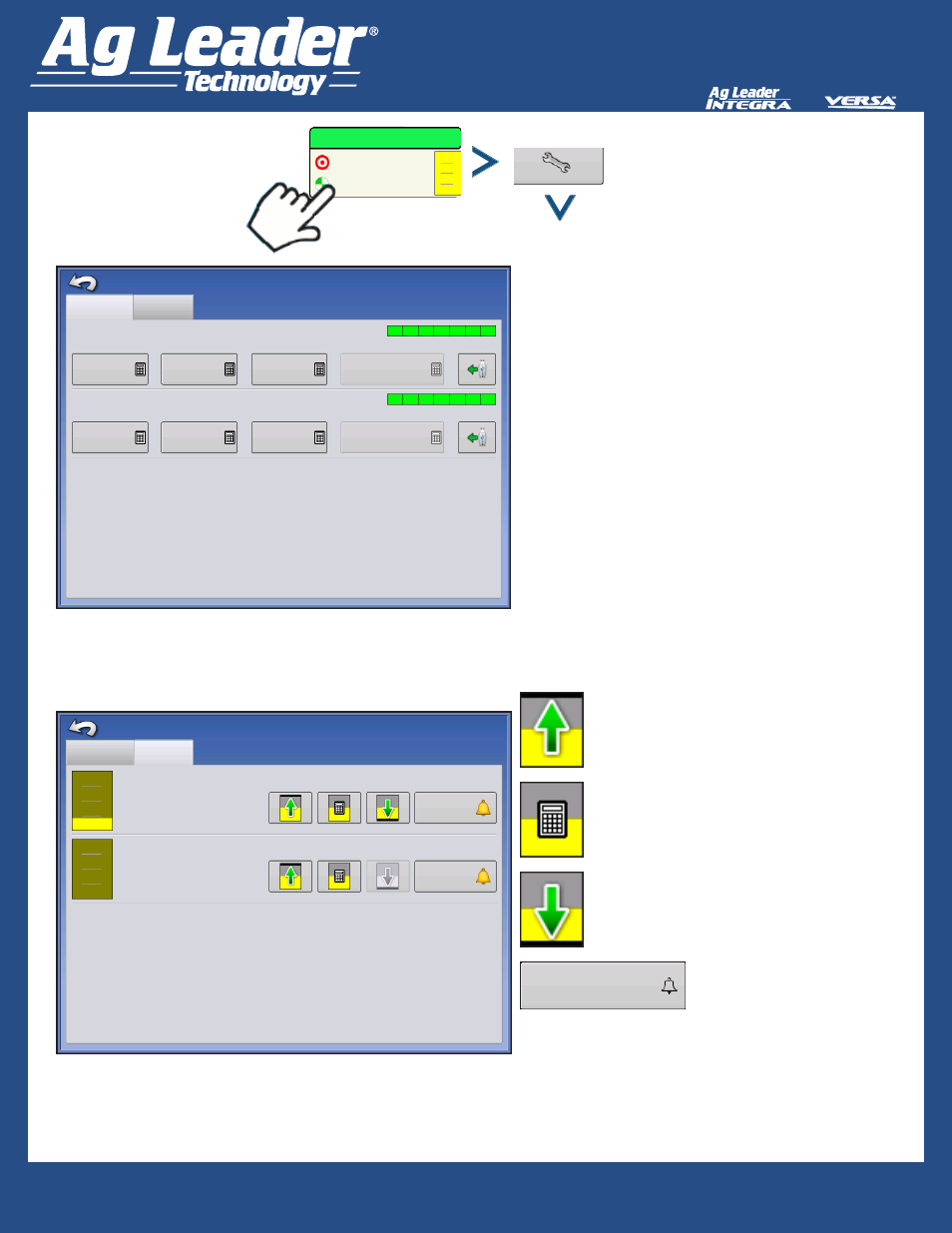

To access the Rate
Control Settings window:
Chem 1
10.00
10.00
Rate 1 and Rate 2
allows operator to set desired target rates
Increment
values when using up and down arrows in
the Product Control Toolbox
Prescription
press to load a map-based prescription file
Minimum Flow
used to maintain a consistent spray pattern,
calculate using tip chart. Lowest operating
PSI/nozzle x number of nozzles=minimum
flow
Tank Full
press to fill container
Tank Partially Filled
press to specify container amount
Tank Empty
press to empty container
Tank Alarm Settings
set % or amount
remaining for low
container alarm
60 gal
10 %
Rate 1:
Rate 2:
Increment:
Minimum Flow:
5 gal/min
10.00
2.00
Current:
Full:
Container
Tank 1
600 gal
100 gal
60 gal
10 %
Rate Control Settings
15.00
Rate Control Containers
Chem 1
Rx
Rate 1:
Rate 2:
Increment:
Minimum Flow:
5 gal/min
20.00
2.00
25.00
Chem 2
Rx
Rate Control
Rate Control Settings
Current:
Full:
Tank 2
600 gal
0 gal
60 gal
10 %
