Hardware options installation 57

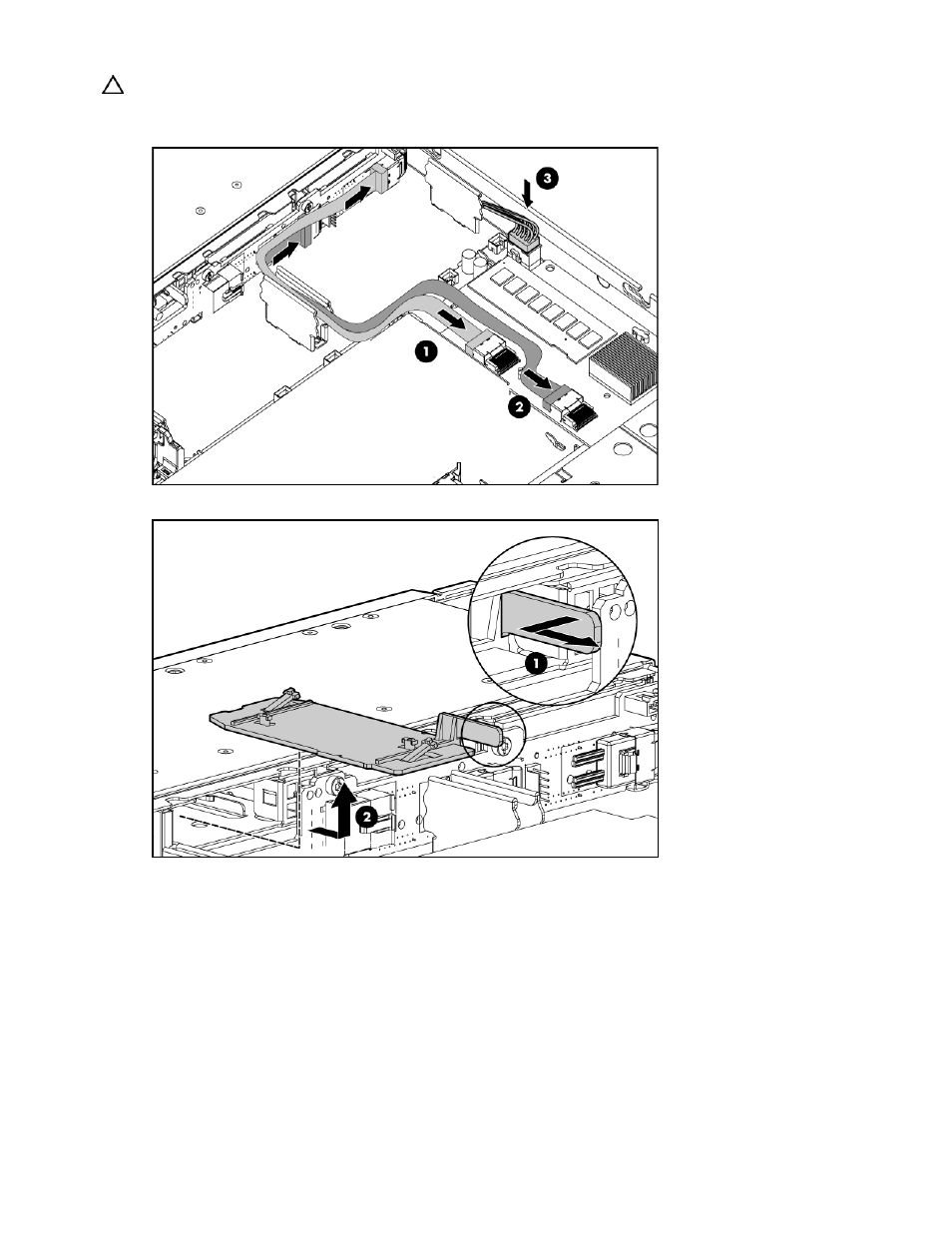

CAUTION: When routing cables, use the cable trough between fan modules 1 and 2. Be sure the cables

do not interfere with fan module installation. Be sure to route the cables around the access panel mounting
pin bracket so as not to interfere with access panel installation.

12.

Remove the HP Smart Array E200i Controller battery tray and retain it for future use.

13.

Connect the power cable from the option kit to the HP Smart Array P400i Controller battery pack.
