Component identification 8

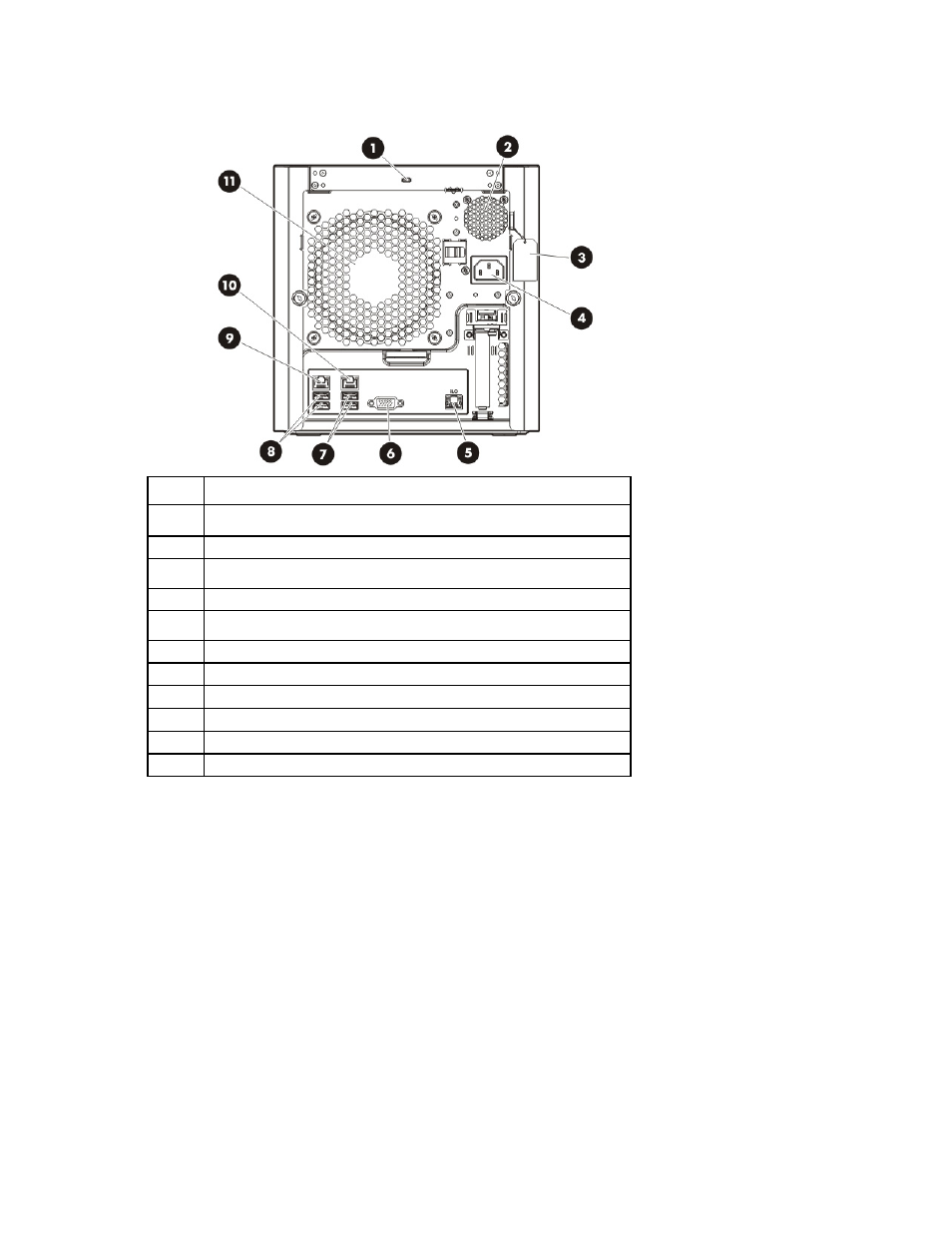

Rear panel components

Item

Description

1

Kensington security slot

2

Power supply

3

Serial number/iLO information tag*

4

Power cord connector

5

Dedicated iLO 4 connector

6

Video connector

7

USB 3.0 connectors

8

USB 2.0 connectors

9

NIC connector 2

10

NIC connector 1/shared iLO 4 connector

11

System fan

* The serial number/iLO information tag shows the server serial number and the default iLO account information. The

same information is printed on separate labels located on the rear panel.
