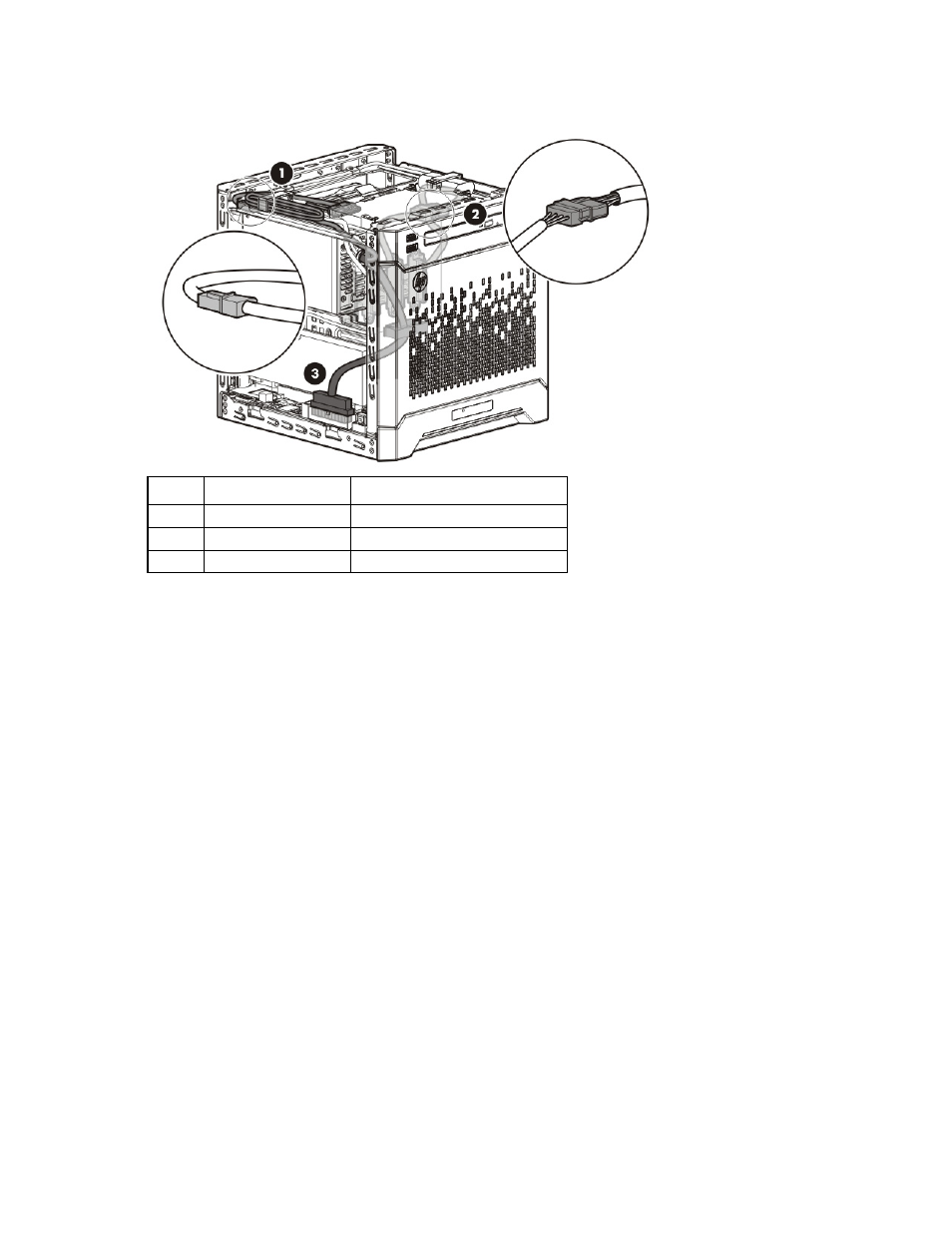

Power supply cabling

Item

PSU cable marker

Description

1

P3

4-pin optical drive power cable

2

P2

4-pin drive power cable

3

P1

24-pin system board power cable
