Cabling 59

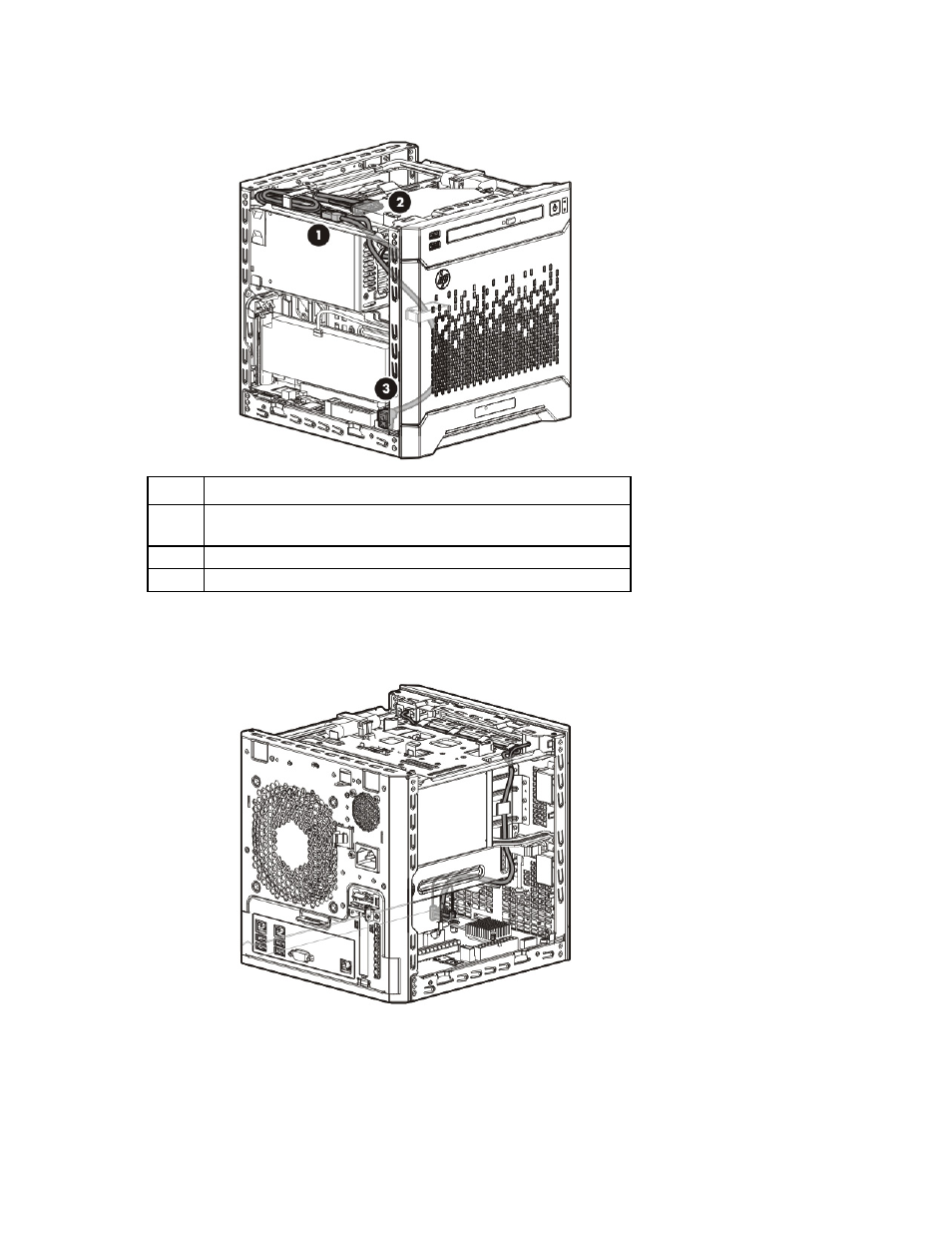

Optical drive cabling

Item

Description

1

4-pin power connector (connected to the PSU P3 cable) of the optical

drive SATA Y-cable

2

Common end of the optical drive SATA Y-cable

3

SATA connector of the optical drive SATA Y-cable

Front I/O assembly cabling
