Hardware options installation 42

8.

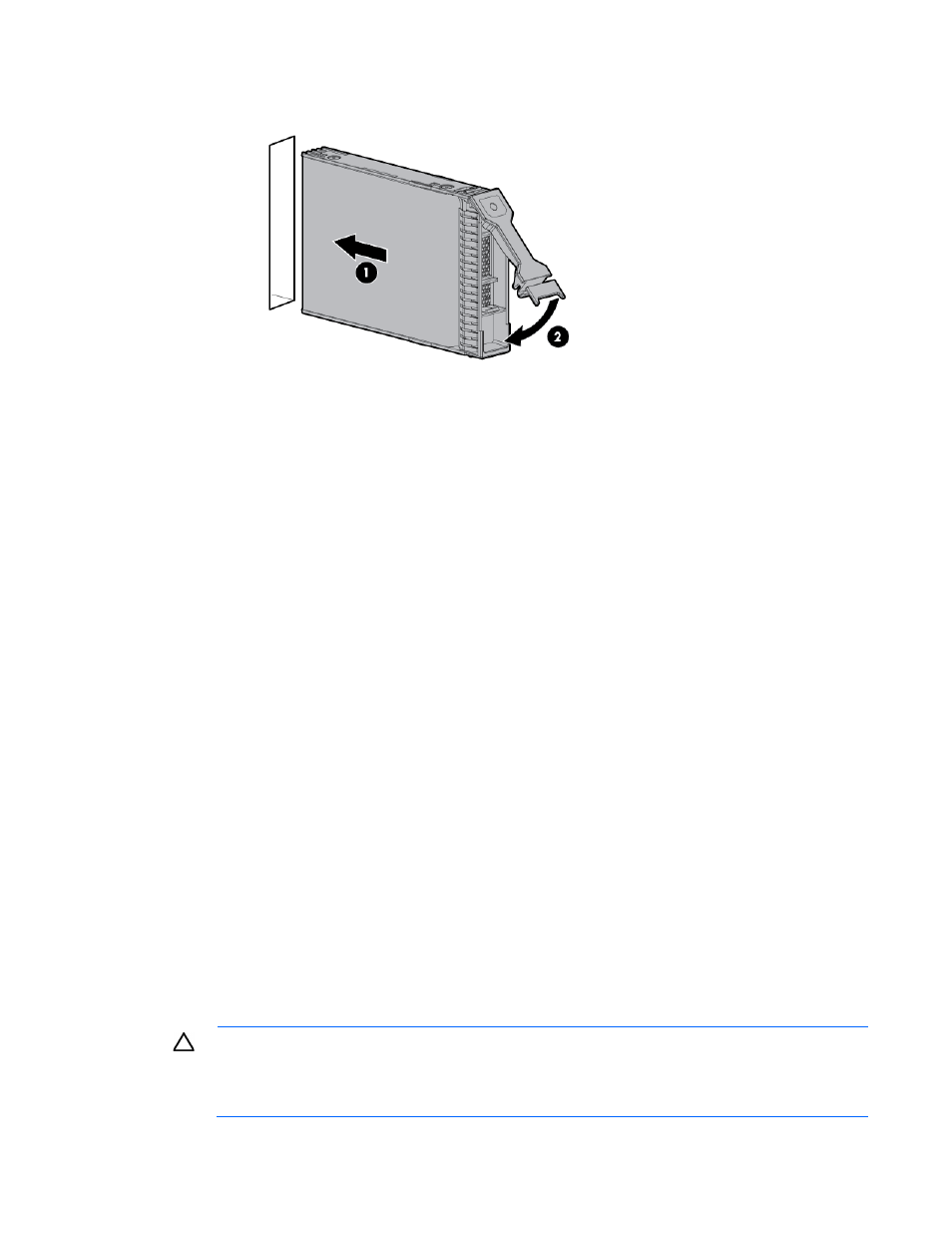

Install the drive.

9.

Close the front bezel.

10.

If the chassis cover was removed, do the following:

a.

Install the chassis cover (on page

19

).

b.

Connect the power cord to the server.

c.

Press the Power On/Standby button.
The server exits standby mode and applies full power to the system. The system power LED changes
from amber to green.

To configure arrays, see the HP Smart Storage Administrator User Guide on the HP website

(

http://www.hp.com/go/smartstorage/docs

).

Controller options

The server ships with an embedded Smart Array B120i controller. For more information about the controller

and its features, see the HP Dynamic Smart Array RAID Controller User Guide on the HP website

(

http://www.hp.com/go/smartstorage/docs

).

To configure arrays, see the HP Smart Storage Administrator User Guide on the HP website

(

http://www.hp.com/go/smartstorage/docs

).

For more information about product features, specifications, options, configurations, and compatibility, see

the product QuickSpecs on the HP website (

http://www.hp.com/go/qs

).

The server supports FBWC. FBWC consists of a cache module and a capacitor pack. The DDR cache module
buffers and stores data being written by the controller. When the system is powered on, the capacitor pack

fully charges in approximately 5 minutes. If a system power failure occurs, a fully charged capacitor pack

provides power for up to 80 seconds. During that interval, the controller transfers the cached data from DDR

memory to flash memory, where the data remains indefinitely or until a controller retrieves the data.
The data protection and the time limit also apply if a power outage occurs. When power is restored to the

system, an initialization process writes the preserved data to the storage drives.

CAUTION:

The cache module connector does not use the industry-standard DDR3 mini-DIMMs.

Do not use the controller with cache modules designed for other controller models, because the

controller can malfunction and you can lose data. Also, do not transfer this cache module to an
unsupported controller model, because you can lose data.
