Setup 26

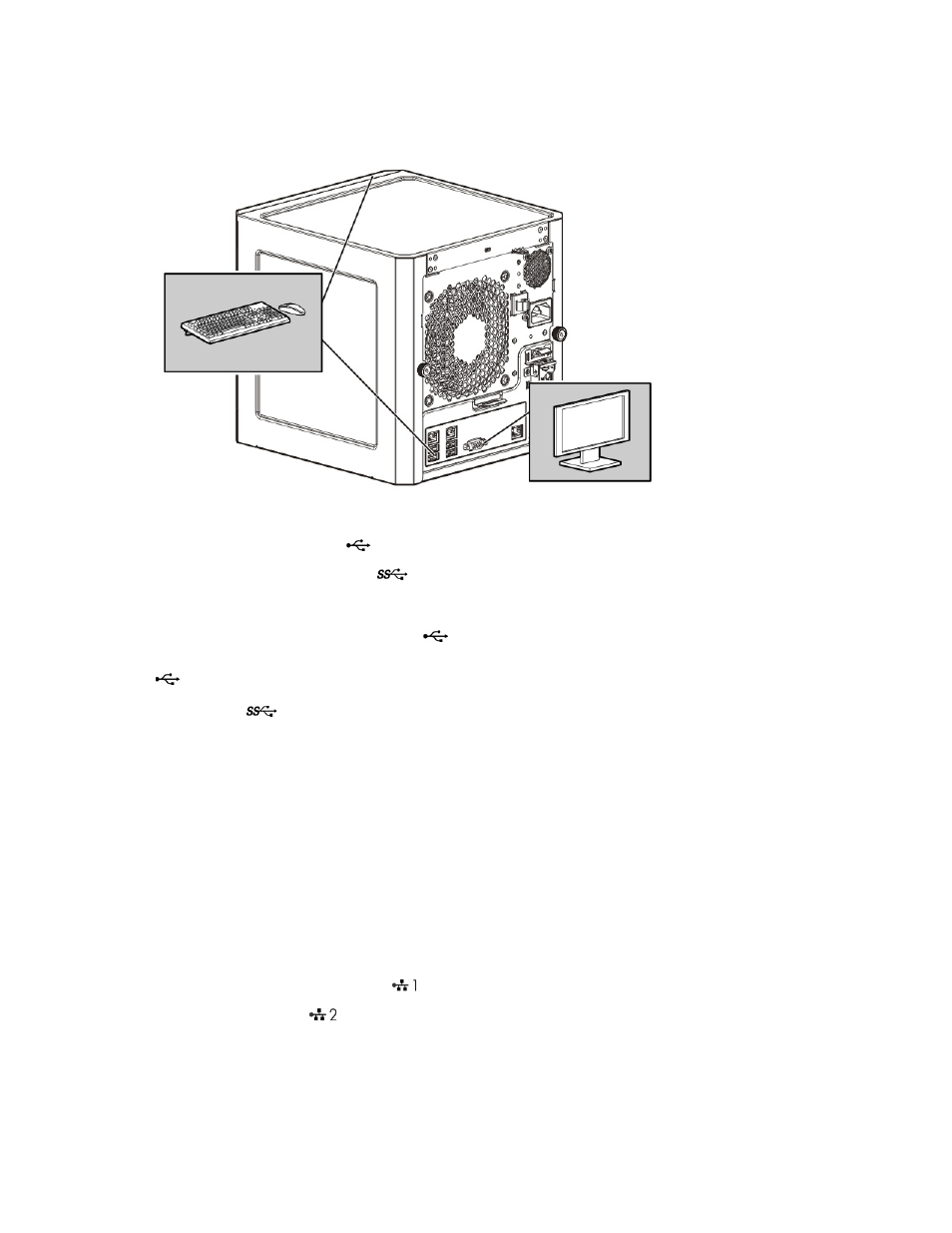

Connecting peripheral devices

The I/O connectors are color coded and are marked with icons.

The server has seven USB connectors:

Four external USB 2.0

connectors, two each on the front and rear panels

Two external rear USB 3.0

connectors

One internal USB 2.0 connector on the system board

The system ROM has inherent USB 2.0

support. These connectors are functional even before the OS

loads. During the initial server setup or when configuring BIOS settings, connect USB devices to the USB 2.0

connectors.

The USB 3.0

connectors are OS-dependent. These connectors are functional only after the OS loads.

Furthermore, the following two OSs require the installation of the USB 3.0 device driver:

Microsoft Windows Server 2008 SP2 (x86 and x86-64 editions)

Microsoft Windows Server 2008 R2 SP1

The USB 3.0 driver is included in the SPP download when performing an Intelligent
Provisioning-assisted system setup. For more information about Intelligent Provisioning drivers,

firmware, and SPP, see the HP website (

http://www.hp.com/go/spp/download

).

Connecting the Ethernet cable

The server supports the following Ethernet connectors located on the rear panel:

NIC 1/shared iLO connector

NIC 2 connector
