4.
Place the drive's guide screws into the J-slots in the drive bay. Then slide the drive toward the front
of the computer until it locks into place.
TIP:
Angle the drive toward one side of the chassis to line up the guide screws with the slots.

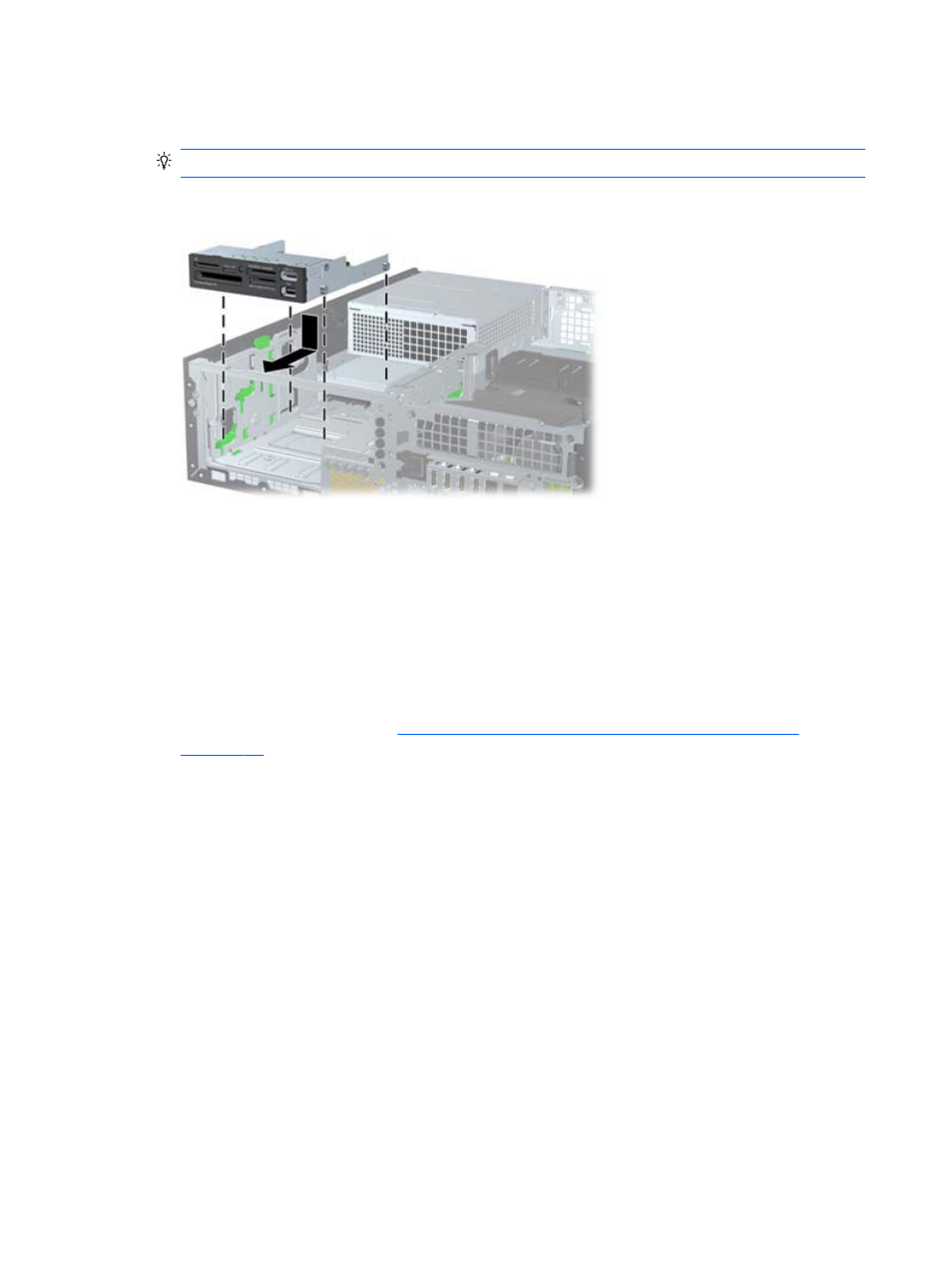

Figure 9-11
Installing a drive into the drive cage (media card reader shown)
5.
Connect the drive cables:
a. If installing a second hard drive, connect the power and data cables to the rear of the drive
and connect the other end of the data cable to the next available (unpopulated) SATA
connector on the system board by following the numbered sequence of the connectors. To
identify hard disk drive ports, refer to the workstation service label on the side access panel.
b. If installing a media card reader, connect the USB cable from the media card reader to the
USB connector on the system board labeled MEDIA. If the media card reader includes a
1394 port, connect the 1394 cable to the 1394 PCI card.
6.
Replace the optical drive. (See
Installing an optical drive in an HP Z210 SFF Workstation
7.
Replace the front bezel.
8.
Replace the access panel.
9.
Replace all components that were removed in preparation for component installation.
