Installing a DIMM
To install a DIMM:
1. Follow the procedures described in Preparing for component installation on page 34 to prepare
the workstation for component installation.
2. Push gently outward on the DIMM socket levers as shown in the following illustration.

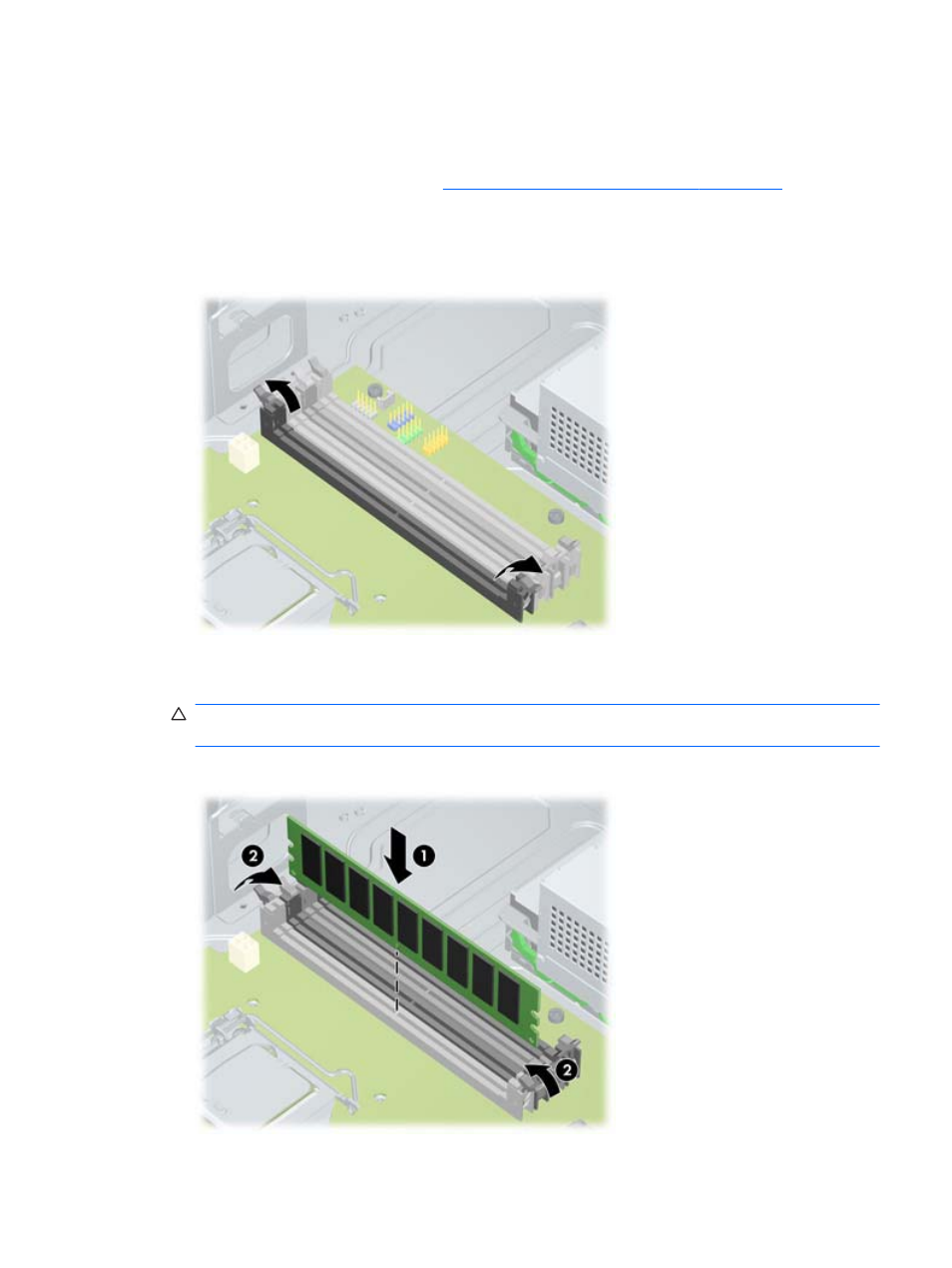

Figure 7-1 Opening DIMM socket levers
3. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket (1) as shown in the following illustration.
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or
DIMM damage, align these guides properly when installing DIMMs.
Figure 7-2 Seating the DIMM
