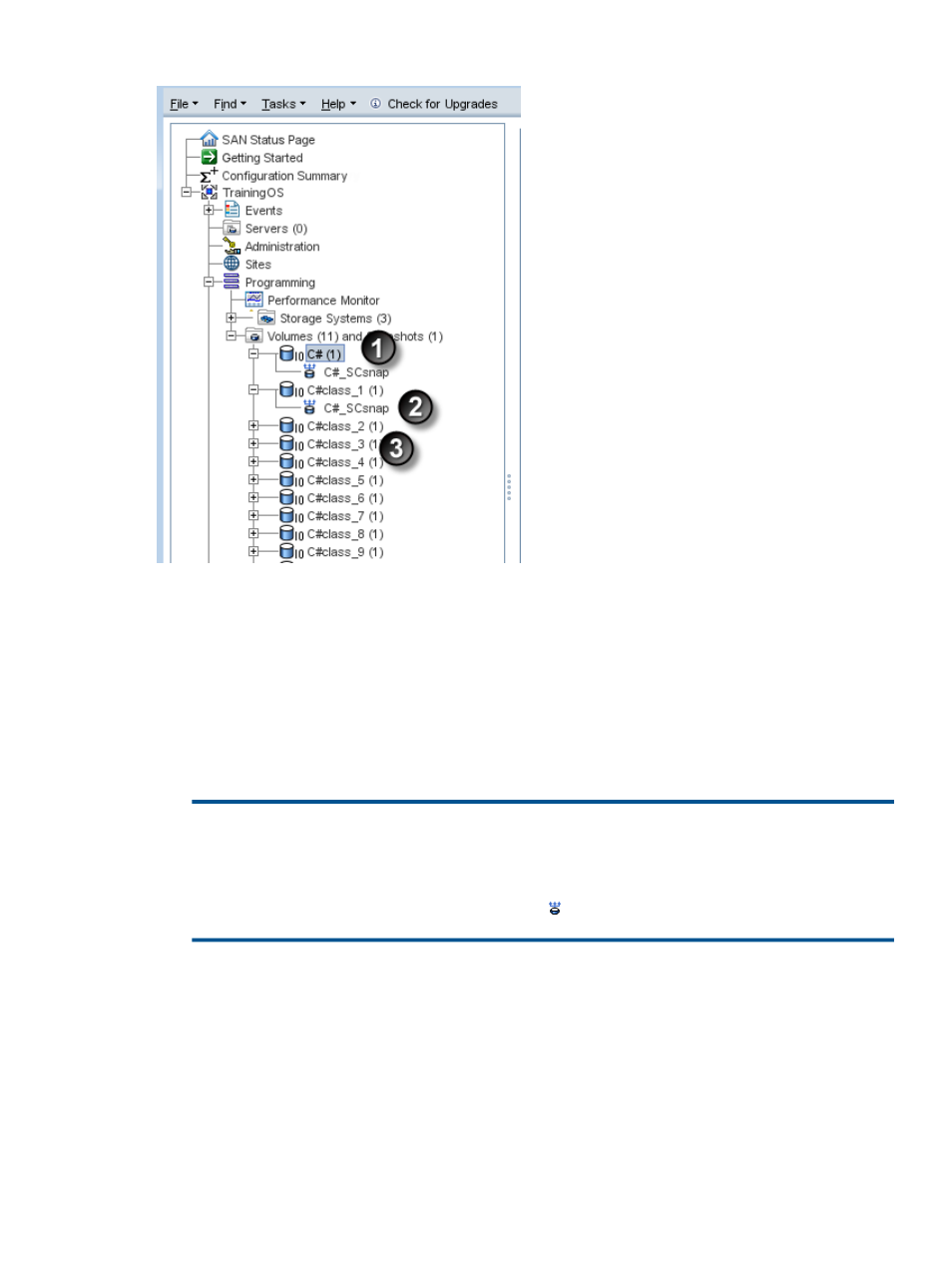

Figure 81 Navigation window with clone point
1. Original volume
2. Clone point
3. SmartClone volume
In Figure 81 (page 191) , the original volume is “C#.”
•
Creating a SmartClone volume of C# first creates a snapshot, C#_SCsnap.
•
After the snapshot is created, you create at least one SmartClone volume, C#class_1.
Table 60 How it works—clone point
C# First, a volume
C#_SCsnap Next, a snapshot
C#class_1 Next, SmartClone from the snapshot
Snapshot becomes a clone point
Because the SmartClone volumes depend on the clone point from which they were created, the
clone point appears underneath each SmartClone volume in the navigation window. While the
clone point may appear many times, it only exists as a single snapshot in the SAN. Therefore, it
only uses the space of that single snapshot. The display in the navigation window depicts this by
the multiple highlights of the clone point underneath each SmartClone volume that was created
from it.
Clone point 191
