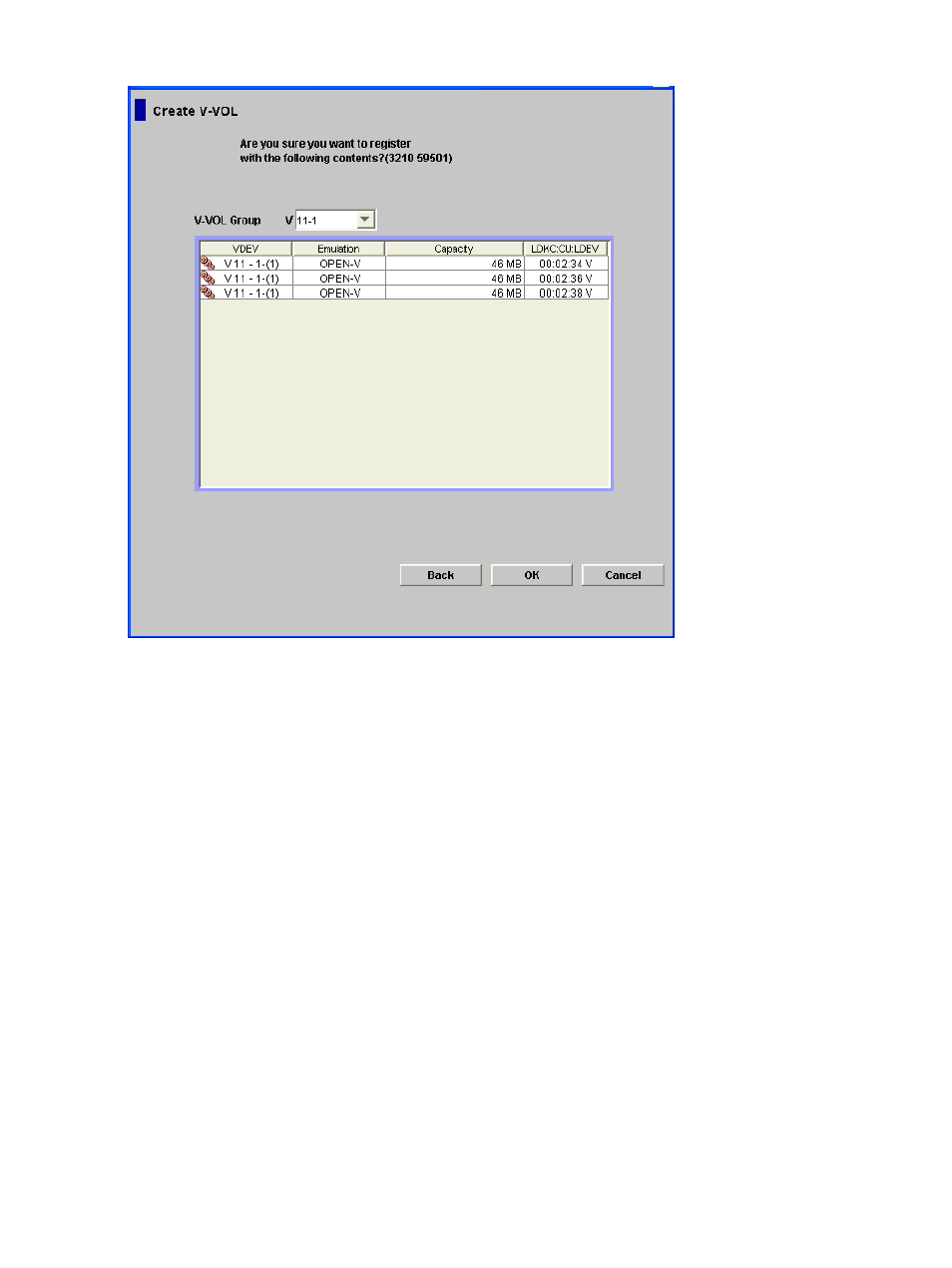

Figure 21 Create V-VOL Wizard Dialog Box (4)
The Create V-VOL wizard dialog box (4) displays the following items.
•
V-VOL Group drop-down list
You can select the V-VOL group number of the V-VOL you set. Note that you cannot enter the
number.
•
V-VOL information setting list (middle of the dialog box)
Information about the V-VOL(s) whose V-VOL number you selected from the V-VOL Group
drop-down list is displayed.
◦
VDEV: V-VOL group number and VDEV number
◦
Emulation: emulation type of the V-VOL
◦
Capacity: capacity of the V-VOL
◦
LDKC:CU:LDEV: LDKC number, CU number, and LDEV number of the V-VOL
•
Back button
Returns to the Create V-VOL wizard dialog box (2) while maintaining the settings in this dialog
box.
•
OK button
Fixes the setting in the Create V-VOL wizard dialog box (3) and closes the dialog box.
•
Cancel button
Cancels the setting in the Create V-VOL wizard dialog box (3) and closes the dialog box.
