Hardware options installation 54

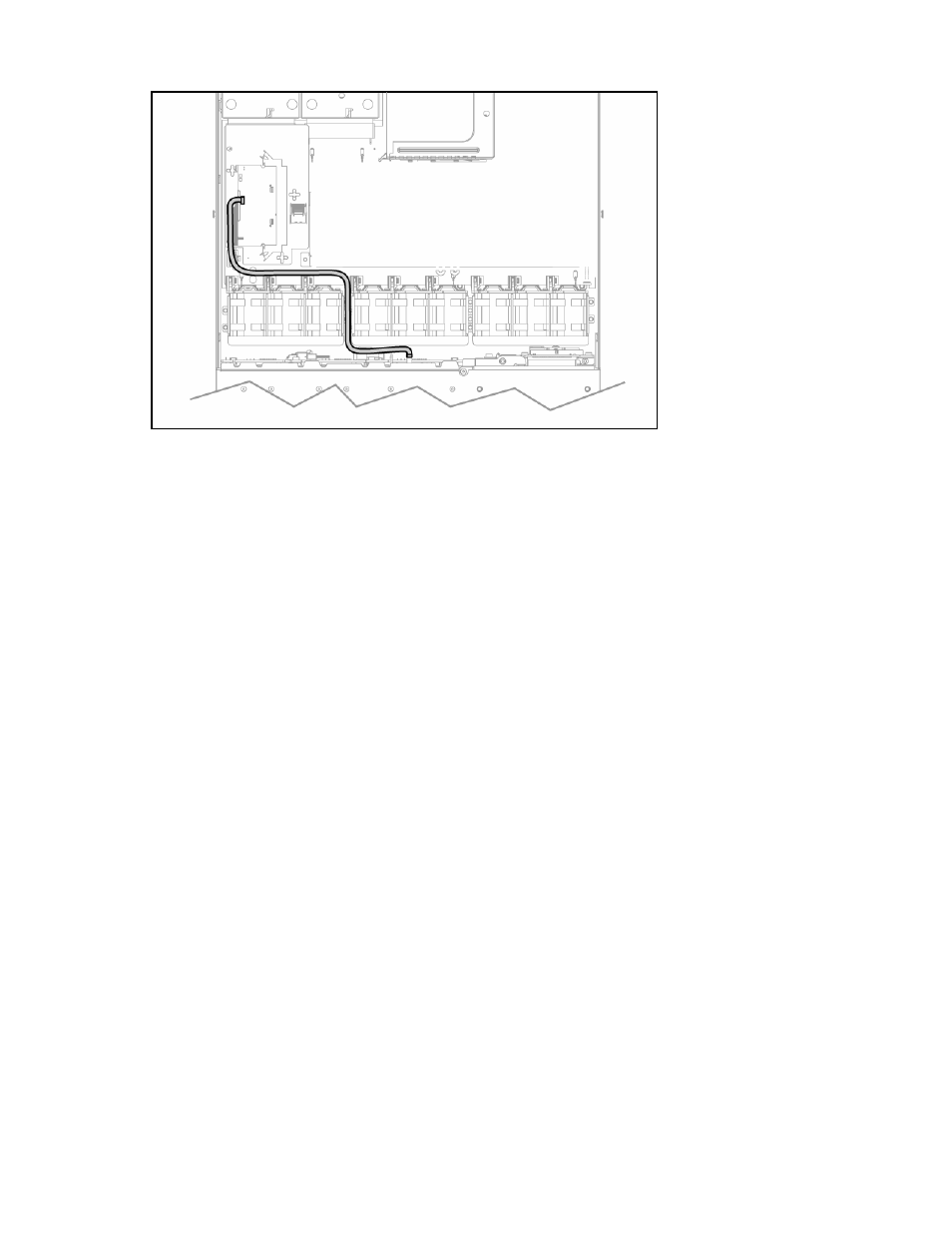

13. Connect the hard drive backplane power cable to the system board (" System board components " on
page 11 ).
14. Install the fan module (" Remove and install a fan module " on page 23 ).
15. Install the air baffle (" Remove and install the air baffle " on page 20 ).
16. Install the access panel (on page 20 ).
17. Slide the server into the rack.
18. Power up the server (on page 18 ).
Installing an HP Smart Array P400i Controller cache module
and battery pack
1. Power down the server (on page 18 ).
2. Extend the server from the rack (on page 19 ).
3. Remove the access panel (on page 20 ).
4. Remove the air baffle (" Remove and install the air baffle " on page 20 ).
5. Remove fan modules 1 and 2 (" Remove and install a fan module " on page 23 ).
6. Remove the HP Smart Array P400i Controller (" Removing an integrated HP Smart Array E200i
Controller or an HP Smart Array P400i Controller " on page 49 ).
