Hardware options installation 33

a.

Remove the PCI riser cage (on page

20

).

b.

Remove the 2U adapter board bracket (on page

22

).

c.

Disconnect and remove the Mini-SAS cable ("

Remove the Mini-SAS cable

" on page

23

).

d.

Remove the 2U air baffle (on page

26

).

7.

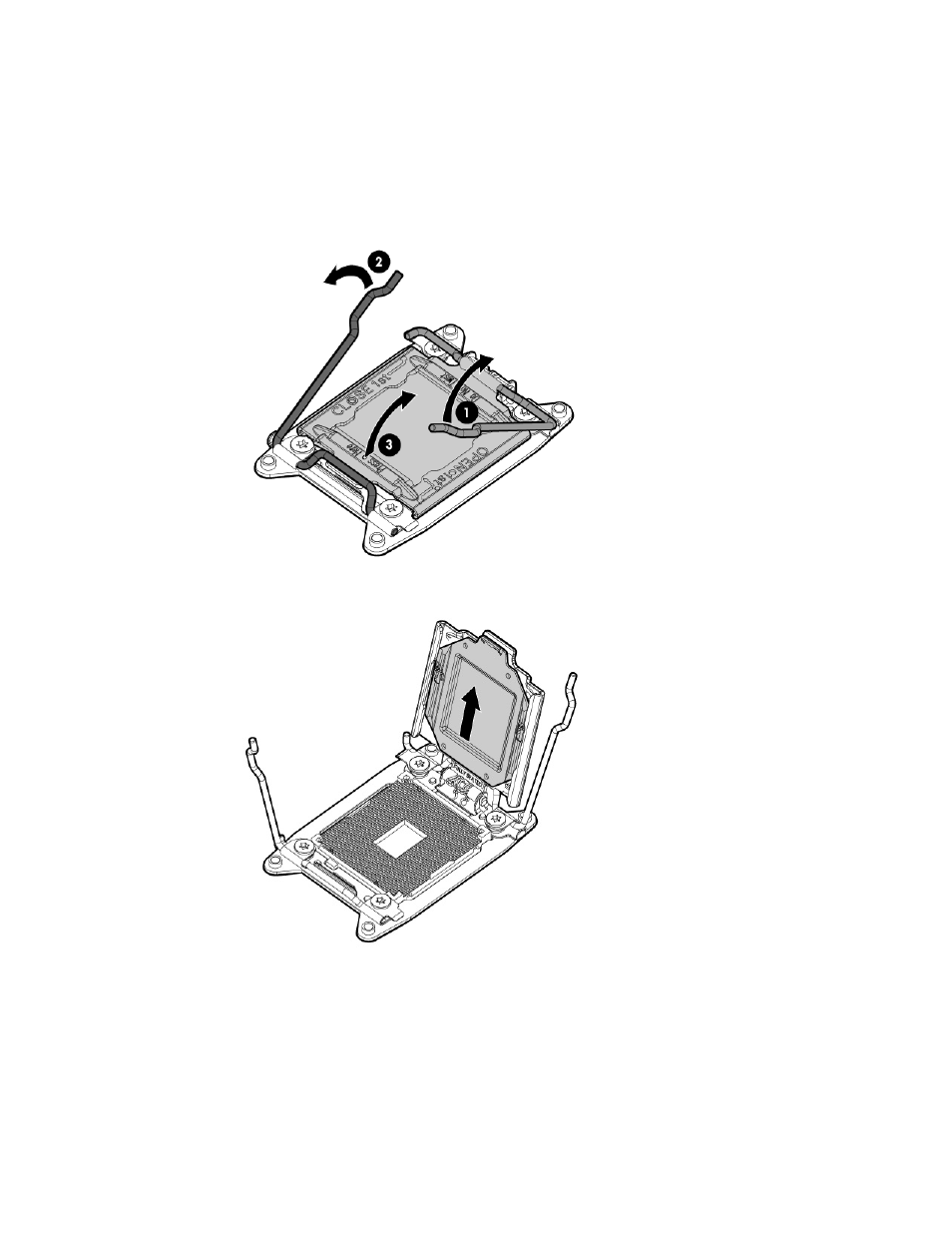

Open each of the processor locking levers in the order indicated, and then open the processor retaining
bracket.

8.

Remove the clear processor socket cover. Retain the processor socket cover for future use.
