Operations 26

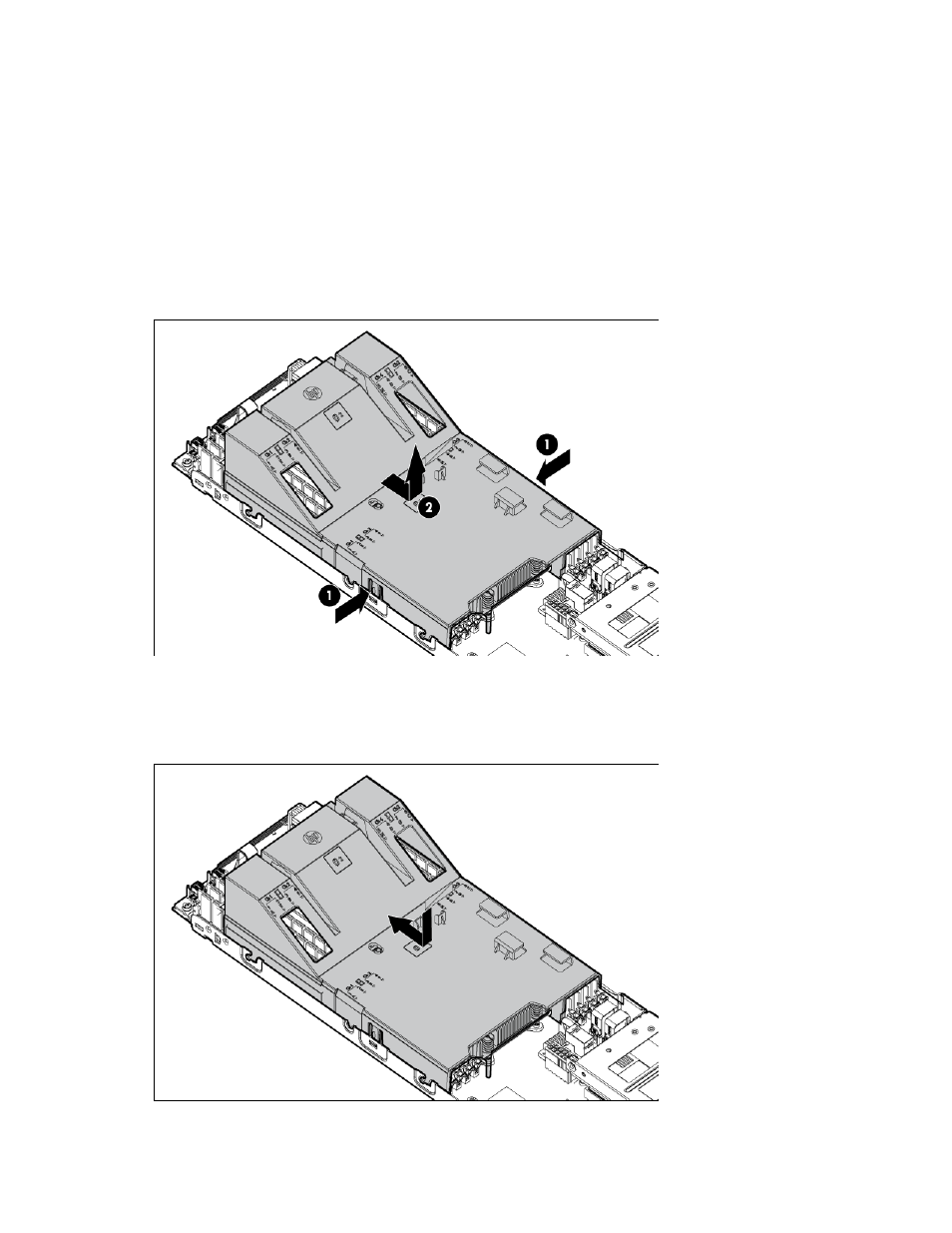

Remove the 2U air baffle

1.

Power down the node (on page

17

).

2.

Disconnect all peripheral cables from the node.

3.

Remove the node from the chassis (on page

17

).

4.

Remove the PCI riser cage (on page

20

).

5.

Remove the 2U adapter board bracket (on page

22

).

6.

Disconnect and remove the Mini-SAS cable ("

Remove the Mini-SAS cable

" on page

23

).

7.

Remove the 2U air baffle.

Install the 2U air baffle

1.

Install the air baffle.
