Component identification 8

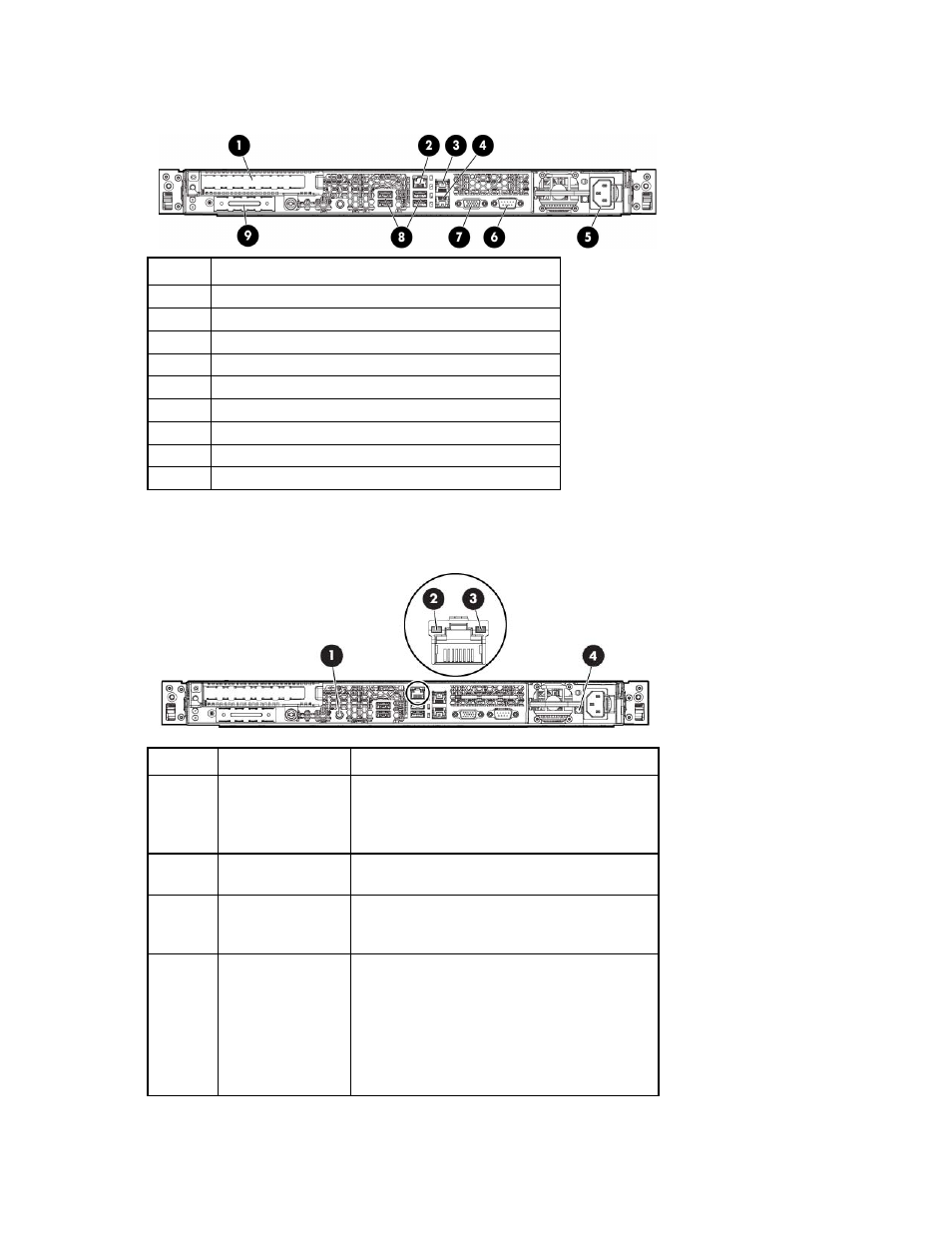

Rear panel components
Description
1
Slot 1 PCIe3 x16 (8, 4, 2, 1)
2 iLO connector
3 NIC connector 2
4 NIC connector1
5 Power supply
6 Serial connector
7 Video connector
8 USB connectors (4)
9 FlexibleLOM slot
Rear panel LEDs and buttons
Item Description Status
1
UID button/LED Blue = Identification is activated
Flashing blue = System is being managed
remotely
Off = Identification is deactivated
2 NIC link LED Green = Link exists
Off = No link exists
3 NIC status LED Green = Activity exists
Flashing green = Activity exists
Off = No activity exists
4 Power supply LED Green = Normal
Off = One or more of the following conditions
exist:
• AC power unavailable
• Power supply failed
• Power supply in standby mode
• Power supply exceeded current limit
