Operations 20
2. Press the locking latch. The access panel slides to a closed position.
3. Use a T-15 Torx screwdriver to tighten the security screw on the locking latch.
Remove the processor air baffle
1. Power down the server (on page 16 ).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 17 ).
o Remove the server from the rack (on page 16 ).
4. Remove the access panel (on page 19 ).

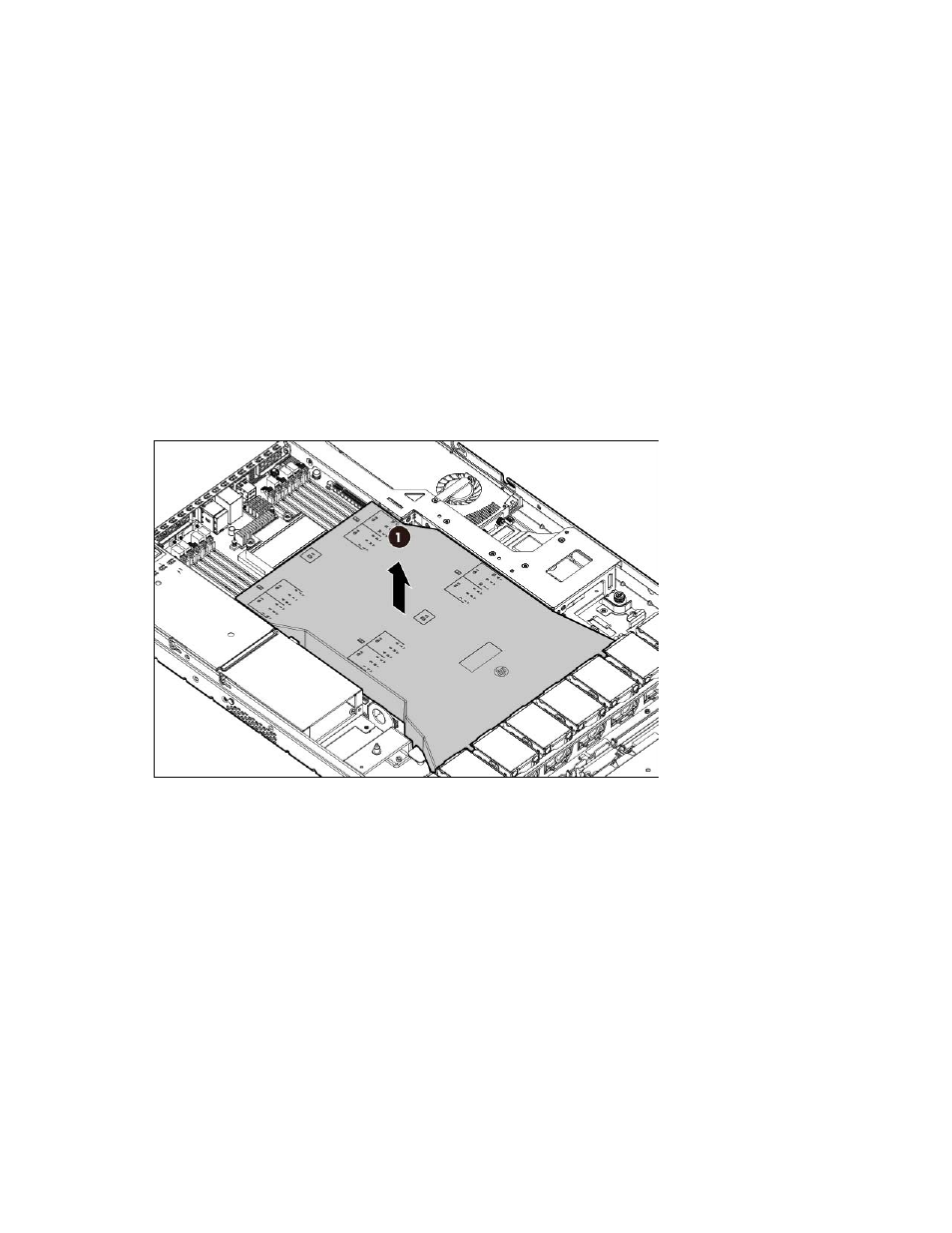

5. Remove the processor air baffle.
Install the processor air baffle
1. Place the air baffle over the system board.
2. Push down the air baffle.
