HP SmartMemory
HP SmartMemory, introduced for Gen8 servers, authenticates and unlocks certain features available only on
HP Qualified memory and verifies whether installed memory has passed HP qualification and test processes.
Qualified memory is performance-tuned for HP ProLiant and BladeSystem servers and provides future
enhanced support through HP Active Health and manageability software.
Certain performance features are unique with HP SmartMemory. HP SmartMemory 1.35V DDR3-1333
Registered memory is engineered to achieve the same performance level as 1.5V memory. For example,
while the industry supports DDR3-1333 RDIMM at 1.5V, this Gen8 server supports DDR3-1333 RDIMM up
to 3 DIMMs per channel at 1066 MT/s running at 1.35V. This equates to up to 20% less power at the DIMM
level with no performance penalty. In addition, the industry supports UDIMM at 2 DIMMs per channel at
1066 MT/s. HP SmartMemory supports 2 DIMMs per channel at 1333 MT/s, or 25% greater bandwidth.
DIMM identification

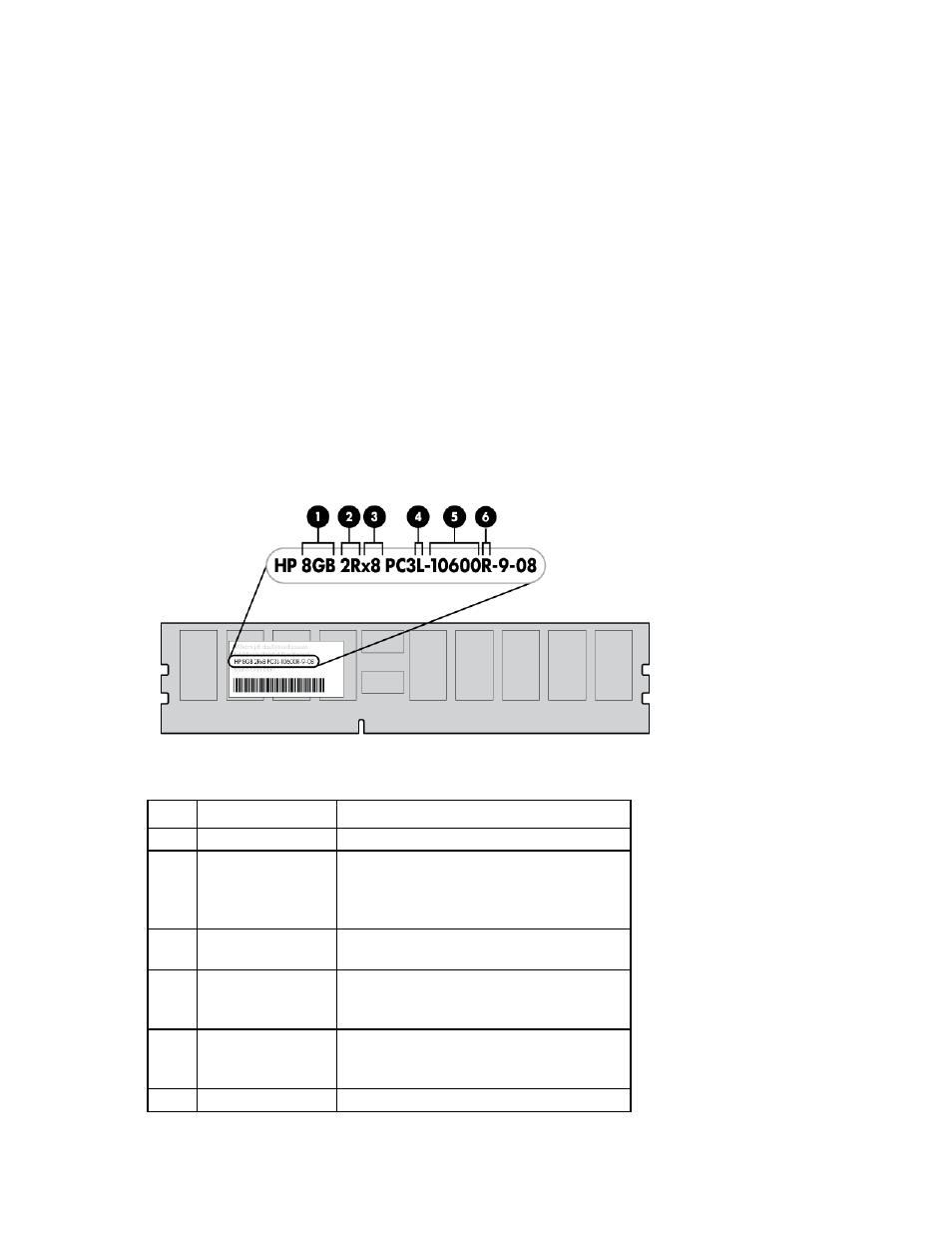

To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and
table.
Item Description Definition
1 Size —
2 Rank 1R = Single-rank
2R = Dual-rank
3R = Three-rank
4R = Quad-rank
3 Data width x4 = 4-bit
x8 = 8-bit
4 Voltage rating L = Low voltage (1.35V)
U = Ultra low voltage (1.25V)
Blank or omitted = Standard
5 Memory speed 12800 = 1600-MT/s
10600 = 1333-MT/s
8500 = 1066-MT/s
6 DIMM type R = RDIMM (registered)
