Cabling 71

Cable number

Description

4

2x2 Power supply cable

5

RPS control cable

6

Discovery service cable

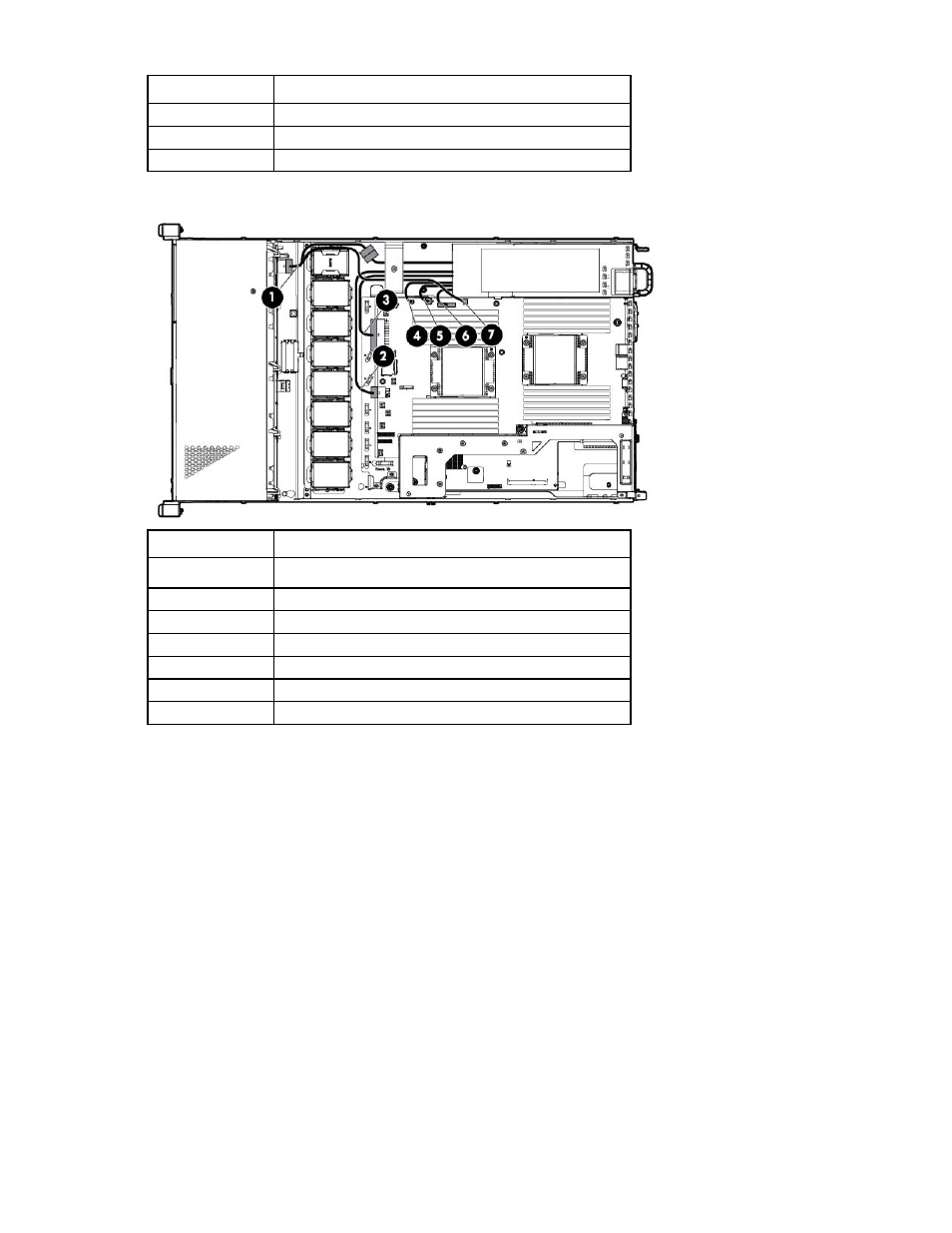

Maximum configuration

Cable number

Description

1

Drive backplane cable

2

2x4 Power supply cable

3

2x12 Power supply cable

4

FlexibleLOM standby power cable

5

2x2 Power supply cable

6

RPS control cable

7

Discovery service cable
