Performance report generated using xpsketch – HP XP Performance Advisor Software User Manual
Page 47

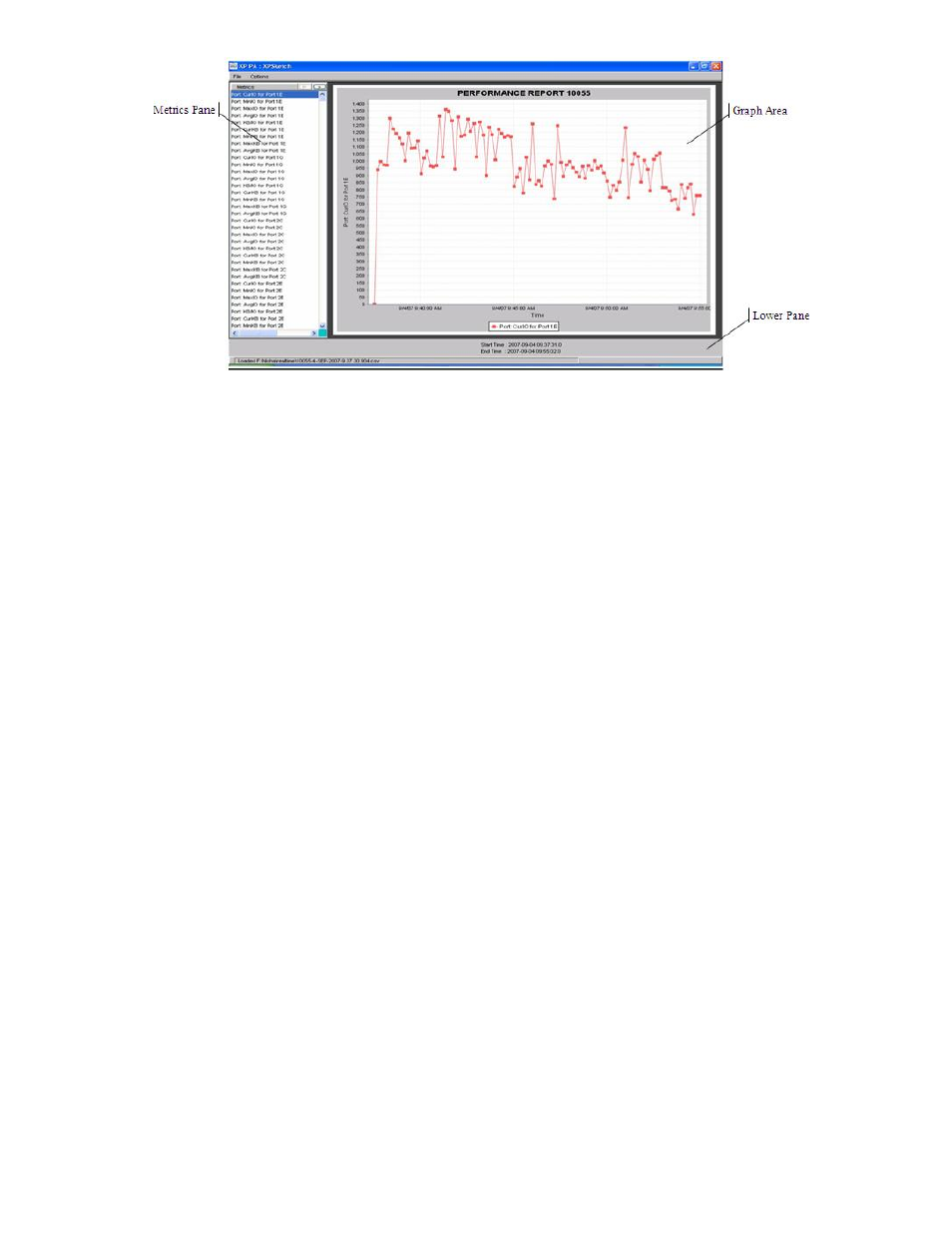

Figure 26 Performance report generated using XPSketch
.
You can select multiple metrics at a time. Accordingly, multiple graphs are plotted in the Graph Area,
as shown in figure below. This is especially useful when you want to analyze the performance metrics
of components across different time intervals. Different color codes are used to differentiate the various
metrics when they are plotted in the Graph Area. The performance metrics for the selected set of
components are displayed on the Domain Axis (X-axis) against the specified durations, which are
displayed on the Range Axis (Y-axis). The Lower Pane displays the Start Time and End Time of the
samples displayed in the Graph Area. The Status bar displays the location of the CSV file.
shows multiple graphs plotted for multiple metric selection.
XPWatch and XPSketch Reference Guide
47
