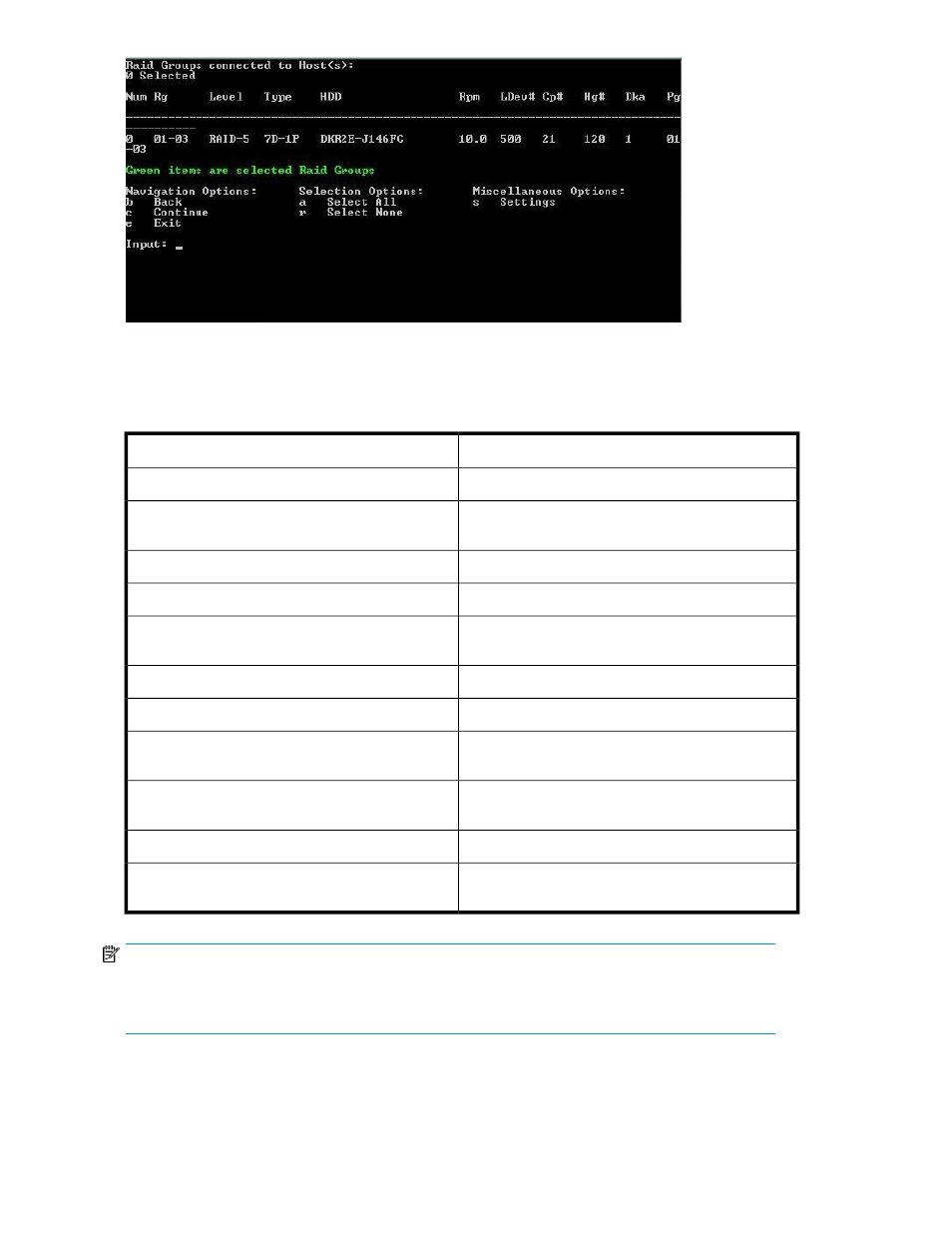

Figure 18 RAID Group menu
.
describes the fields that appear in the RAID Group menu.
Table 9 RAID Group menu — screen fields
Description
Screen field
Selection number
Num
The Rg column displays the Parent RAID Group if the
RAID Groups are “Concatenated”
Rg
RAID level
Level
RAID type
Type
Drive type of Hard Disk Drives constituting the RAID
Group
HDD
Speed of the Hard Disk Drives (in rpm)
Rpm
Total number of LDEVs belonging to the RAID Group
LDEV#
Total number of CHA ports associated with the RAID
Group
Cp#
Total number of Host Groups associated with the RAID
Group
Hg#
Count of DKAs associated with LDEVs mapped to port
DKA#
The Pg column displays the entire list of Concatenated
RAID Groups
Pg
NOTE:
•
If the RAID groups are not configured, the RAID Group menu will display blank screen fields.
•
For Non-Concatenated RAID Groups, the Rg and Pg columns display the same data.
Working with XPWatch menus and commands
28
